CLGR® Grade 70 Chain Australian Standard

Name: CLGR® Grade 70 Chain Australian Standard
Brand: CLGR®

CLGR® Grade 70 Chain Australian Standard, also known as Grade 70 Tie down Chain, G70 Transport Chain, and Australian Standards Grade 70 Transport Chain.

The G70 transport chain offers a combination of cleanliness, light weight, high strength, and reliability, making it an ideal solution for tie-down applications in the transport and shipping industries.

Available in sizes from 6mm to 13mm with a gold zinc finish, it delivers durability and corrosion resistance.

Important: This chain is specifically designed for securing cargo and is NOT approved for overhead lifting. For overhead lifting applications, please use Grade 80 or Grade 100 lifting chains.

To Get A Quote >

CLGR® Grade 70 Chain Australian Standard

CLGR® Grade 70 Chain Australian Standard china supplier

Overview of CLGR® Grade 70 Chain Australian Standard

Brand	CLGR®
Standard	Meets ASTM, NACM, FMCSA, and CVSA standards
Material	Superior Alloy Steel
Processing	Welded
Finish	Yellow or White Zinc Chromate finish
Size	6mm, 7mm, 7.3mm, 8mm, 10mm, 13mm
Note	Not for use for lifting.

Specifications of CLGR® Grade 70 Chain Australian Standard

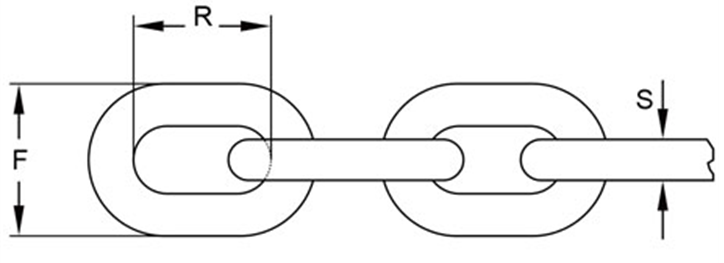

specifications-of-clgr®-grade-70-chain-australian-standard-china-supplier

Part No.	CHAIN SIZE	LINK DIMENSIONS				WEIGHT PER M	Lashing Capacity	BREAKING STRENGTH
	CHAIN SIZE	R max.	R min.	F max.	inner width min.	WEIGHT PER M	Lashing Capacity	BREAKING STRENGTH
	MM					KG	kg	KN
CR-7CAS-06	6	18.9	17.33	22.05	7.88	0.81	2300	44.1
CR-7CAS-07	7	21.3	19.53	24.85	8.88	1.09	2900	55.9
CR-7CAS-073	7.3	24	22	26.6	10	1.16	3000	58.9
CR-7CAS-08	8	24	22	28	10	1.42	3800	73.6
CR-7CAS-010	10	30	27.5	35	12.5	2.22	6000	118
CR-7CAS-013	13	39	35.75	45.5	16.25	3.75	9000	176

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
