CLGR® Open Type Pulley Block Double Sheave With Eye 7212

Name: CLGR® Open Type Pulley Block Double Sheave With Eye 7212
Brand: CLGR®

CLGR® Open Type Pulley Block Double Sheave With Eye 7212, also known as Double Sheave Snatch Block, and Double Sheave Lifting Pulley Block, and Wire Rope Pulley Block.

This double sheave block features an open type design for easy rope insertion and cleaning. The open side allows the rope to be inserted directly into the sheave – no need to thread from the end.

Equipped with two sheaves, it allows the rope to be across multiple times, effectively increasing mechanical advantage for heavier lifting or pulling tasks.

Built for durability and smooth operation, this block is suitable for construction, industrial rigging, and marine use.

Available in various sizes and working load limits to meet different job requirements.

To Get A Quote >

CLGR® Open Type Pulley Block Double Sheave With Eye 7312

CLGR® Open Type Pulley Block Double Sheave With Eye 7312 China Manufacturer

CLGR® Open Type Pulley Block Double Sheave With Eye 7312 China

 

Overview of CLGR® Open Type Pulley Block Double Sheave With Eye 7212

Brand	China CLGR®
Type	Double Sheave Block 7212
Material	Steel
Surface	Color Painted or Galvanized
Size	2″, 3″, 4″, 5″, 6″, 7″, 8″, 10″, 12″
Application	Lifting Equipment

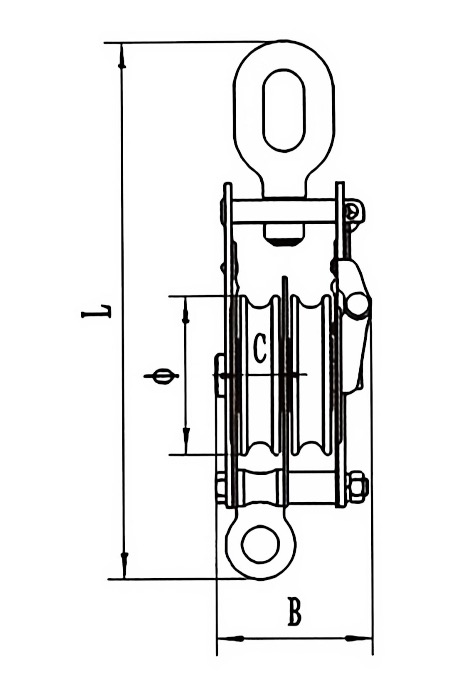

Specifications of CLGR® Open Type Pulley Block Double Sheave With Eye 7212

Part No.	Size	SWL/Ton	Diam OF ROPE	L	B	A	Weight(KG)
CR7212E-2	2	0.25	6mm	186	67.5	58	1.1
CR7212E-3	3	0.5	8mm	287	88	88	2.2
CR7212E-4	4	1	10mm	327	100	112	3.5
CR7212E-5	5	1.5	13mm	381	114	140	6
CR7212E-6	6	2	16mm	445	131	164	9
CR7212E-7	7	3	19mm	511	146	196	16.8
CR7212E-8	8	4	22mm	553	163	220	18
CR7212E-10	10	5	25mm	632	163	272	24
CR7212E-12	12	6	28mm	705	163	320	32

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
