CLGR® Galvanised Malleable Iron Pulley Block Double Sheave with Eye

Name: CLGR® Galvanised Malleable Iron Pulley Block Double Sheave with Eye
Brand: CLGR®

CLGR® Galvanised Malleable Iron Pulley Block Double Sheave with Eye, also known as Malleable Double Wheel Pulley Block, Eye Double Sheave Pulley Sheave, Swivel Oval Eye Pulley Block.

This galvanised malleable iron pulley block features a swivel oval eye and a hot-dipped galvanized body. The plain bore design includes a grey iron wheel.

Designed for fiber rope, the block is CE marked with size and WLL clearly shown. Certification is available on request.

To Get A Quote >

CLGR® Galvanised Malleable Iron Pulley Block Double Sheave with Eye

CLGR® Galvanised Malleable Iron Pulley Block Double Sheave with Eye China

Overview of Galvanised Malleable Iron Pulley Block Double Sheave with Eye

Brand	CLGR®
Type	Galvanised Malleable Iron Pulley Block Double Sheave with Eye
Material	Malleable Iron
Surface Finished	Hot dipped galvanized finish
Size	0.5 Ton, 1 Ton, 2 Ton, 3.2 Ton, 5 Ton
Origin	China

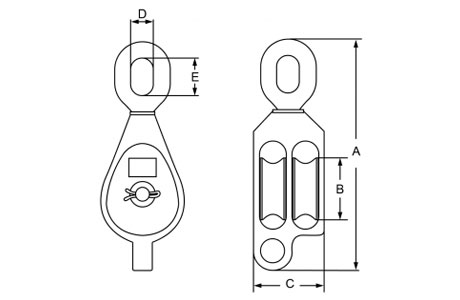

Specifications of Galvanised Malleable Iron Pulley Block Double Sheave with Eye

Part. No.	Weight kgs/each	Shell inches	Shell mm	SWL tonne	Rope Dia mm	Eye A mm	B	C	D	E	F
CRMBD01	1	3″	76	0.4	12	165	45	49	16	25	16
CRMBD02	2	4″	102	0.9	16	229	60	56	19	35	27
CRMBD03	3.3	5″	127	1.1	18	286	83	67	25	51	32
CRMBD04	5.5	6″	152	2	24	343	92	89	32	56	32
CRMBD05	9	8″	203	2.6	28	387	137	100	32	56	32
CRMBD06	23	10″	254	3.5	32	476	178	108	44	67	48
