CLGR® JIS Wooden Pulley Block with Eye Single Sheave

Name: CLGR® JIS Wooden Pulley Block with Eye Single Sheave
Brand: CLGR®

CLGR® JIS Wooden Pulley Block with Eye Single Sheave, also known as Eye Type JIS Wooden Pulley Block Single Sheave.

The Wooden Pulley Block is made of wooden shell and hot dipped galvanized steel parts to protect against corrosion.

These wooden pulley blocks are used for various lashing and rigging applications and for re-directing rope.

We offer the great combination of competitive pricing and superior quality—don't hesitate to proceed with your order!

To Get A Quote >

CLGR® JIS Wooden Pulley Block with Eye Single Sheave

CLGR® JIS Wooden Pulley Block with Eye Single Sheave China

CLGR® JIS Wooden Pulley Block with Eye Single Sheave China Manufacturer

CLGR® JIS Wooden Pulley Block with Eye Single Sheave China Supplier

 

Overview of CLGR® JIS Wooden Pulley Block with Eye Single Sheave

Brand	China CLGR®
Material	Wooden body and steel wheel
Size	3″, 4″, 5″, 6″, 7″, 8″, 9″, 10″, 11″, 12″
Surface treatment	painted or galvanized

Specifications of CLGR® JIS Wooden Pulley Block with Eye Single Sheave

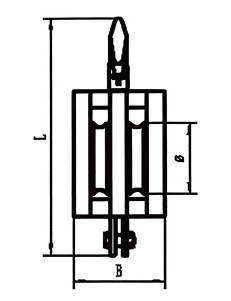

Drawing of CLGR® JIS Wooden Pulley Block with Eye Single Sheave

Part No.	Size	SWL/LBS	Diam	∅	L	A	B	Weight(KG)
CRWPSSOE-3	3″	500	6mm	45	201	52.5	44.5	0.45
CRWPSSOE-4	4″	1000	9mm	57	221	78	51	1
CRWPSSOE-5	5″	1200	12mm	76	268	98	57	1.7
CRWPSSOE-6	6″	1800	14mm	90	322	114	72	2.3
CRWPSSOE-7	7″	2000	16mm	121	348	130	77	3
CRWPSSOE-8	8″	2800	18mm	121	377	145	83	3.8
CRWPSSOE-9	9″	3000	20mm	136	418	162	88	6
CRWPSSOE-10	10″	4000	22mm	158	461	182	99	7
CRWPSSOE-11	11″	4000	22mm	178	481	182	99	9
CRWPSSOE-12	12″	5000	24mm	196	553	208	110	11.5

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
