CLGR® Swivel Eye Blocks - The China Manufacturer

Name: CLGR® Swivel Eye Blocks - The China Manufacturer
Brand: CLGR®

CLGR® Swivel Eye Blocks, also known as Single Swivel Eye Pulleys, and Cable Block.

Swivel Eye Blocks are all steel and entirely bright zinc plated for maximum corrosion resistance.

Swivel Eye Blocks are constructed of steel and have a zinc plated finish. Used to guide rope or cable with fixed and movable mounting variations.

This allows the sheave to be removed for rigging into cable at any point, in the same manner as a snatch block.

All Blocks have the Standard Working Load (capacity) stamped on each block.

To Get A Quote >

CLGR® Swivel Eye Blocks The China Manufacturer Supplier

CLGR® Swivel Eye Blocks The China Manufacturer Factory

Overview of CLGR® Swivel Eye Blocks - The China Manufacturer

Brand	CLGR®
Size	1½”, 2″, 2½”, 3″, 3½”
Surface Finish	Zinc plated
Application	Both Indoor and Outdoor Use

Specification of CLGR® Swivel Eye Blocks - The China Manufacturer

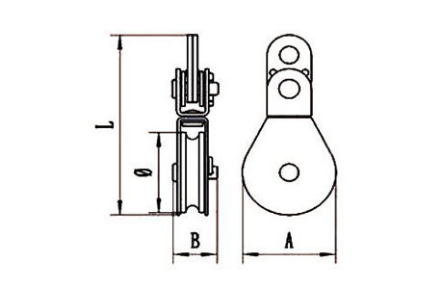

Drawing of CLGR® Swivel Eye Blocks - The China Manufacturer

Part No.	Size	SWL/LBS	Diam	∅	L	A	B	Weight(KG)
CRSEB-01	1½”	420	3/16″	38	101	41	25.5	0.2
CRSEB-02	2″	480	3/16″	50	115	54	25.5	0.68
CRSEB-03	2½”	550	1/4″	63.5	128	66.5	26.5	0.7
CRSEB-04	3″	650	1/4″	75	155	79	28.5	1.0
CRSEB-05	3½”	1250	5/16″	89	172	92	3.5	1.4
