CLGR® Flat Mount Block Single Sheave

Name: CLGR® Flat Mount Block Single Sheave
Brand: CLGR®

CLGR® Flat Mount Pulley Blocks Single Sheaves, also known as Flat Mount Wire Rope Block Single.

This flat mount pulley block features a single sheave design for efficient rope or cable handling.

The flat mounting allows easy installation on flat surfaces, beams, or frames. Built for smooth operation, it reduces friction and wear during lifting or pulling tasks.

Ideal for rigging, garage use, or workshop applications where space is limited.

To Get A Quote >

Overview of CLGR® Flat Mount Block Single Sheave

Brand	CLGR®
Surface Finished	Zinc plated
Sheave	Single sheave
Size	1½”, 2″, 2½”, 3″, 3½”, 4″, 5″.
Other Information	Custom sizes and capacities are available at request

Specifications of CLGR® Flat Mount Block Single Sheave

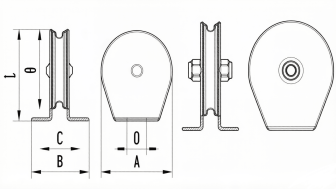

drawing of CLGR® Flat Mount Block Single Sheave china manufacturer

Part No.	Size	SWL/LBS	Diam	∅	L	A	B	C	D	Weight(KG)
CRFMBSS-1	1½”	525	3/16″	38	48	41	52	37	17.5	0.15
CRFMBSS-2	2″	600	3/16″	50	60.5	54	52	37	17.5	0.25
CRFMBSS-3	2½”	685	1/4″	63.5	75	67	52	37	17.5	0.4
CRFMBSS-4	3″	800	1/4″	75	90	80	52	37	17.5	0.58
CRFMBSS-5	3½”	1550	5/16″	88	111	95	92.5	68.5	25.5	1.2
CRFMBSS-6	4″	1700	3/8″	100	125	108	93	69	25.5	1.6
CRFMBSS-7	5″	1850	3/8″	125	151	134	93	69	25.5	2.4
