CLGR® Heavy Duty Snatch Block with Swivel Hook European Type

Name: CLGR® Heavy Duty Snatch Block with Swivel Hook European Type
Brand: CLGR®

CLGR® Heavy Duty Snatch Block with Swivel Hook European Type, also known as Swivel Hook Snatch Block, Snatch Block w/Latched Swivel Hook, Snatch Block w/ Hook, Snatch Block with Swivel Hook.

The Snatch Block with Swivel Hook is a versatile rigging tool for lifting, pulling, and redirecting wire rope. It has bronze bushings with grease fittings and easy-to-open side plates that do not require disassembly.

The drop-side plate speeds rope insertion for quick line insertion and removal, while the swivel hook allows controlled rotation to help reduce line twist.

Each block is bronze bushed with pressure grease fittings for smooth, long-lasting performance.

The snatch block can easily handle a working load limit of 3 tons and is designed to fit ropes that are 5/16" - 3/8".

To Get A Quote >

Overview of CLGR® Heavy Duty Snatch Block with Swivel Hook European Type

Brand	CLGR®
Technical Notes	European Type
Material	Superior Alloy steel
Processing	Drop Forged
Finish	Powder Coated
Size	3”x2T, 4-1/2”x4T, 6”x4T, 6”x8T, 8”x8T, 8″x15T, 10”x10T, 10″x12T, 12″x12T, 12″x15T
Safety Factor	4:1

Specifications of Heavy Duty Snatch Block Swivel Hook European Type

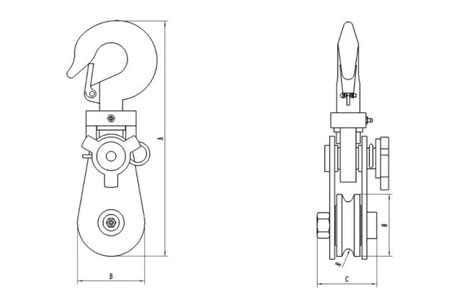

drawing-of-heavy-duty-snatch-block-swivel-hook-european-type-china-supplier

Part No.	TYPE	S. W. L (T)	DIAM 0F ROPE (MM)	A	B	C	R	Φ	WEIGHT (KG)
CRHDSBH3L2	3 ” x 1	2	7-9	292	82	70	5.5	75	3.9
CRHDSBH4.5L4	4-1/2 ” x 1	4	10-12	358	120	70	6	115	6.2
CRHDSBH6L4	6 ” x 1	4	16-18	412	160	70	10	150	8.4
CRHDSBH6L8	6 ” x 1	8	20-22	498	160	93	12	150	14.1
CRHDSBH8L8	8 ” x 1	8	20-22	549	210	93	12	200	19
CRHDSBH8L15	8 ” x 1	15	22-24	672	210	102	15	200	34
CRHDSBH10L10	10 ” x 1	10	24-26	695	260	115	15	250	36
CRHDSBH10L12	10 ” x 1	12	24-26	701	260	115	15	250	36
CRHDSBH12L12	12 ” x 1	12	24-26	797	310	133	15	300	56
CRHDSBH12L15	12 ” x 1	15	26-28	800	310	133	15	300	58

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
