CLGR® Grade 80 Swivel Lifting Point Eye Bolts

Name: CLGR® Grade 80 Swivel Lifting Point Eye Bolts
Brand: CLGR®

CLGR® Grade 80 Swivel Lifting Point Eye Bolts, also known as Grade 80 Swivel Lifting Screw Point, Grade 80 Swivel Lifting Eye Bolt with Ring, Swivel Eye Bolts, Grade 80 Swivel lifting point.

These Grade 80 alloy steel swivel eye bolts are equipped with fitted bearings to ensure smooth, multi-directional movement during lifting operations, though the swivel mechanism locks securely under load.

Individually proof-tested to twice the working load limit and built with a 4:1 safety factor, they comply with the Machinery Directive 2006/42/EC.

Available in diameters from M8 to M64 in various lengths, each unit comes with a welded oval link for versatile rigging.

To Get A Quote >

CLGR® Grade 80 Swivel Lifting Point Eye Bolts

CLGR® Grade 80 Swivel Lifting Point Eye Bolts China Factory

CLGR® Grade 80 Swivel Lifting Point Eye Bolts China Supplier

Overview of CLGR® Grade 80 Swivel Lifting Point Eye Bolts

Brand	CLGR®
Material	G80 Lifting Point made of alloy steel
Processing	Drop Forged, Welded
Finish	Powder Coated
Size – Wire	G80 lifting point size available in M8x13,M10x18,M10x90,M12x18,M12x40,M12x45,M12x110,M14x20,M16x35,M16x40,M16x100 M16x120,M20x30,M20x120,M24x40,M24x40,M24x90,M24x120,M27x35,M30x35,M30x38,M30x120 M30x35,M30x38,M30x120,M36x90,M36x400,M39x50,M39x90,M42x50,M42x60,M42x130,M42x180 M45x60,M48x50,M48x110,M56x84,M64x95

Specifcations of CLGR® Grade 80 Swivel Lifting Point Eye Bolts

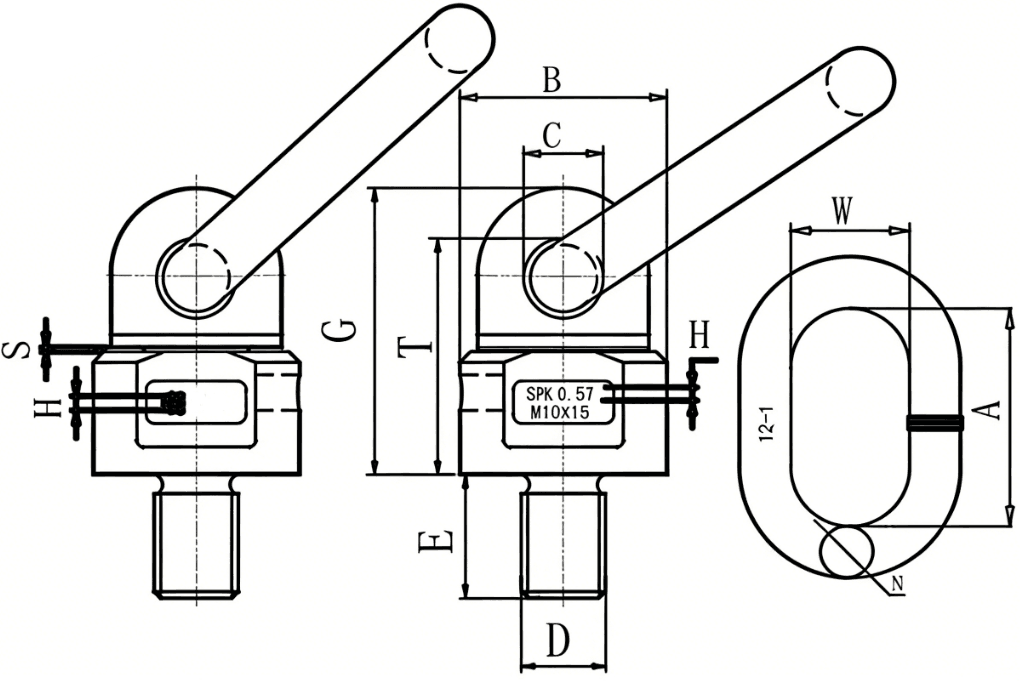

drawing-of-clgr®-grade-80-swivel-lifting-point-eye-bolts-china-supplier

Part No.	Size (in)	W.L.L (t) (4:1)		Dimension (mm)
Part No.	Size (in)	WLL 0°	WLL 90°	DxE	B	C	G	T	A	W	N	H	S
8CRLP8x13	M8	0.6	0.3	M8x13	36	16.5	51	41	55	30	14	3	1
8CRLP10x18	M10	0.9	0.5	M10x18	36	16.5	51	41	55	30	14	3	1
8CRLP10x90	M10x90	1	0.5	M10x90	36	16.5	51	41	55	30	14	3	1
8CRLP12x18	M12	1	0.5	M12x18	36	16.5	51	41	55	30	14	3	1
8CRLP12x40	M12x40	1	0.5	M12x40	36	16.5	51	41	55	30	14	3	1
8CRLP12x45	M12x45	1	0.5	M12x45	36	16.5	51	41	55	30	14	3	1
8CRLP12x110	M12x110	1	0.5	M12x110	36	16.5	51	41	55	30	14	3	1
8CRLP14x20	M14	2	1.12	M14x20	36	16.5	52	42	55	30	14	3	1
8CRLP16x35	M16	2	1.12	M16x35	36	16.5	52	42	55	30	14	3	1
8CRLP16x40	M16x40	2	1.12	M16x40	36	16.5	52	42	55	30	14	3	1
8CRLP16x100	M16x100	2	1.12	M16x100	36	16.5	52	42	55	30	14	3.5	1
8CRLP16x120	M16x120	2	1.12	M16x120	36	16.5	68	56	70	35	16	3.5	1
8CRLP20x30	M20	4	2	M20x30	4.95	19	68	56	70	35	16	3.5	1
8CRLP20x120	M20x120	4	2	M20x120	4.95	19	78	65.5	85	40	18	3.5	1.5
8CRLP24	M24	6.3	3.15	M24x40	57	22	78	65.5	85	40	18	3.5	1.5
8CRLP24x40	M24x40	6.3	3.15	M24x90	57	22	78	65.5	85	40	18	3.5	1.5
8CRLP24x90	M24x90	6.3	3.15	M24x90	57	22	78	65.5	85	40	18	3.5	1.5
8CRLP24x120	M24x120	6.3	3.15	M24x120	57	22	78	65.5	85	40	20	3.5	1.5
8CRLP27x35	M27	6.3	3.15	M27x35	57	22	96.5	80.5	85	40	20	4	1.5
8CRLP30x35(5T)	M30(5T)	10.6	5.3	M30x35	66	23.5	96.5	80.5	85	40	20	4	1.5
8CRLP30x38(5T)	M30x38	10.6	5.3	M30x38	66	23.5	96.5	80.5	85	40	22	4	1.5
8CRLP30x120(5T)	M30x120	10.6	5.3	M30x120	66	23.5	112	92	115	50	22	6	2
8CRLP30x35(8T)	M30(8T)	11.8	8	M30x35	80	28	112	92	115	50	22	6	2
8CRLP30x38(8T)	M30x38	11.8	8	M30x38	80	28	112	92	115	50	22	6	2
8CRLP30x120(8T)	M30x120	11.8	8	M30x120	80	28	109	89.5	115	50	22	6	2
8CRLP36x90	M36x90	11.8	8	M36x90	80	27	109	89.5	115	50	22	6	2
8CRLP36x40	M36x400	11.8	8	M36x400	80	27	109	89.5	115	50	22	6	2
8CRLP39x50	M39	11.8	8	M39x50	80	27	109	89.5	115	50	22	6	2
8CRLP39x90	M39x90	11.8	8	M39x90	80	27	109	89.5	115	50	22	6	2.5
8CRLP42x50	M42	15	10	M42x50	80	27	109	89.5	115	50	25	6	2.5
8CRLP42x60	M42x60	15	10	M42x60	80	27	109	89.5	115	50	25	6	2.5
8CRLP42x130	M42x130	15	10	M42x130	80	27	109	89.5	115	50	25	6	2.5
8CRLP42x180	M42x180	15	10	M42x180	80	27	109	89.5	115	50	25	6	2.5
8CRLP45x60	M45x60	15	10	M45x60	80	27	109	89.5	115	50	25	6	2.5
8CRLP48x50	M48	15	10	M48x50	80	27	109	89.5	115	50	25	6	2.5
8CRLP48x110	M48x110	15	10	M48x110	80	27	109	89.5	115	50	25	6	2.5
8CRLP56x84	M56x84	25	15	M56x84	117	42	310	280	152	70	32	7	2.5
8CRLP64x95	M64x95	25	15	M64x95	117	42	310	280	152	70	32	7	2.5
