CLGR® Bolt-On Lifting Point Grade 80

Name: CLGR® Bolt-On Lifting Point Grade 80
Brand: CLGR®

CLGR® Bolt On Lifting Point Grade 80, also known as Grade 80 Lashing Anchor Point, and Bolt On Tie Down.

This bolt-on lifting point serves as a versatile, semi-permanent anchor for lifting and lashing, delivering straightforward, efficient, and reliable performance in heavy-load handling.

Constructed from high-strength Grade 80 alloy steel, these tie-down links are built for exceptional durability. Their installation is simplified by a mounting plate with pre-drilled bolt holes, offering a hassle-free alternative to complex welded options. A protective yellow powder coating ensures long-lasting performance.

These anchor points feature an integrated pivot, providing an excellent alternative to traditional weld-on solutions. They easily accommodate straight lifts, angled lifts, and multi-directional tie-downs, with the added benefit of being removable and replaceable as needed.

To Get A Quote >

CLGR® Bolt On Lifting Point Grade 80 China Manufacturer

CLGR® Bolt On Lifting Point Grade 80 China

Overview of CLGR® Bolt-On Lifting Point Grade 80

Brand	CLGR®
Standard	EN1677
Material	Super Alloy Steel
Processing	Forged + Quenched and Tempered
Finish	Powder coated
WLL	1T, 2T, 3T, 5T, 8T
Safety Factor	4 : 1
Tips	Color: customized according to customers’ requirement
Country of Origin	China

Specifications of CLGR® Bolt-On Lifting Point Grade 80

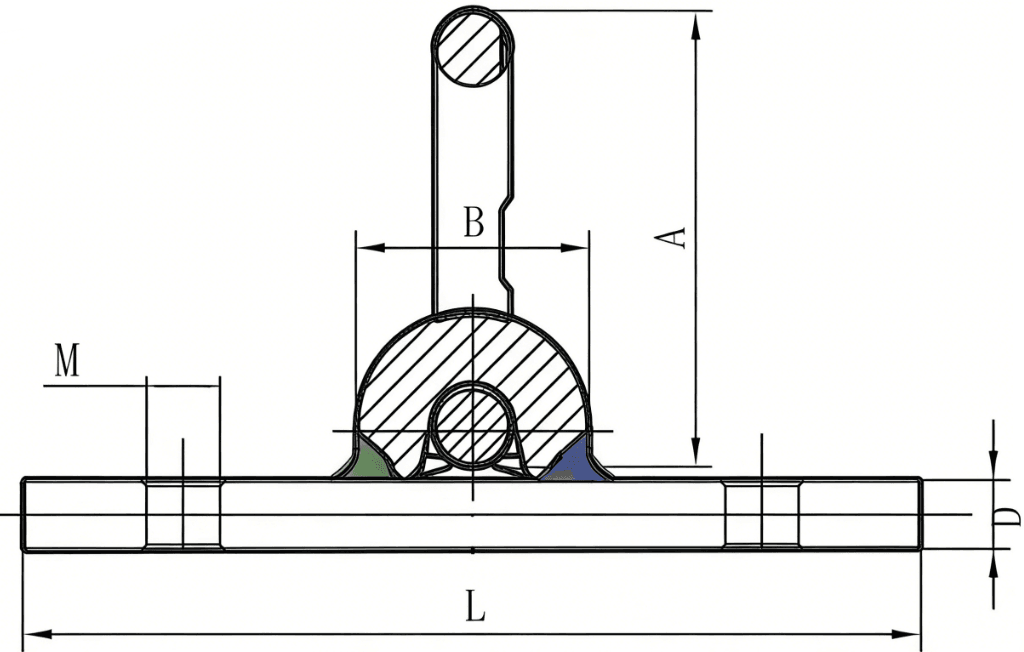

drawing-of-clgr-bolt-on-lifting-point-grade-80

Part No.	WEIGHT (KG)	WLL (T)	B.L (T)	A±0.5	B	D±0.5	M±0.2	L±2
8CRBOLP1T	1.09	1	4	78	40	12	12.5	61
8CRBOLP2T	1.24	2	8	80.5	40	14	14.5	155
8CRBOLP3T	1.56	3	12	94	46.5	16	16.5	155
8CRBOLP5T	2.585	5	20	118	60	20	22.5	180
8CRBOLP8T	4.92	8	32	141	63	26	26.5	220

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
