CLGR® G80 Clevis Grab Hooks U.S. Type, also known as Grade 80 Clevis Cradle Grab Hooks with Pins, Clevis Cradle Grab Hooks.
They are attached to the master link via a clevis attachment, used for shortening the chain legs of a sling, offering the flexibility to shorten chain slings and enabling back-hooking.
These grab hooks are designed with supporting lugs, ensuring that there is no reduction in the working load limit. The clevis itself is engineered for the easy connection of chain.
Commonly used in construction and engineering, material handling, transport and logistics, industrial manufacturing.
| Brand | CLGR® |
| Size | 1/4", 9/32", 3/8", 1/2", 5/8", 3/4", 7/8" |
| Standard | Meets or exceeds ASTM A952 / A952M & ASME B30.10 requirements. |
| Material | Superior Alloy Steel |
| Safety Factor | 4: 1 |
| Processing | Drop Forged / Quenched and Tempered |
| Surface Finish | Powder Coated |
| Tips | Color Code can be Customized |
| Note | Never exceed working load limit |

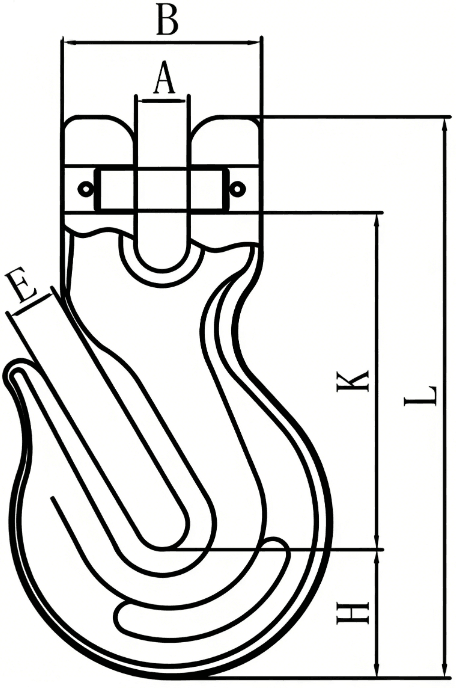

Part No. | U.W. | W.L.L. | B.L | A | E | B | H | K | L |
KGS | TONS | TONS | MM | ||||||
8CRCGHUS1/4 | 0.22 | 1.2 | 4.8 | 8 | 8 | 34 | 19.5 | 57 | 90.5 |
8CRCGHUS9/32 | 0.31 | 2 | 8 | 9.5 | 9.5 | 41 | 23 | 65.3 | 106.5 |
8CRCGHUS3/8 | 0.7 | 3.2 | 12.8 | 12.7 | 12.5 | 46 | 31 | 82 | 137 |
8CRCGHUS1/2 | 1.8 | 5.4 | 21.6 | 16 | 16.7 | 61 | 43 | 113 | 184.5 |
8CRCGHUS5/8 | 3.1 | 8.2 | 32.8 | 19.5 | 20 | 68.5 | 49 | 129.5 | 215 |
8CRCGHUS3/4 | 4.1 | 12.8 | 51.2 | 24 | 24 | 88 | 58 | 152 | 254 |
8CRCGHUS7/8 | 6.2 | 15.5 | 62 | 27 | 26 | 96 | 64.8 | 178 | 295 |
