CLGR® Grade 80 Lifting Eye Nut DIN 582

Name: CLGR® Grade 80 Lifting Eye Nut DIN 582
Brand: CLGR®

CLGR® Grade 80 Lifting Eye Nut DIN 582 also known as DIN 582 Eye Nut and DIN 582 eye nut with zinc plating.

Our G80 DIN 582 Lifting Eye Nuts are manufactured from alloy steel in full compliance with DIN 582 standards, available in sizes from M6 to M48 with zinc-plated, hot-dip galvanized, or self-color finishes.

These nuts are designed exclusively for vertical static lifting applications and must be fully screwed onto the bolt until complete surface contact is achieved.

Ideal for creating secure anchor points in construction and manufacturing settings, these lifting eye nuts provide reliable performance when used with proper rigging equipment.

To Get A Quote >

Overview of CLGR® Grade 80 Lifting Eye Nut DIN 582

Brand	CLGR®
Standard	DIN582
Material	Super Alloy steel
Processing	Drop Forged / Quenched & Tempered
Finish	Powder Coated
Size	M6, M8, M10, M12, M16, M20, M24, M30, M36, M42, M48
Country of Origin	China

Specifications of CLGR® Grade 80 Lifting Eye Nut DIN 582

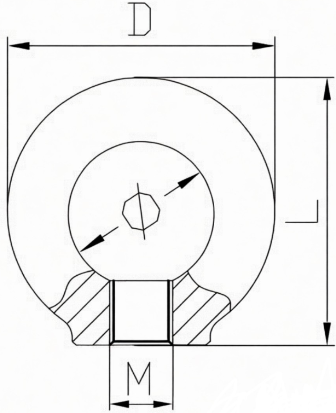

Drawing of CLGR® Grade 80 Lifting Eye Nut DIN 582 drawing-clgr-clgr-grade-80-eye-nut-din-582

Part No.	Size (in)	W.L.L (t) (4:1)		Dimension (mm)			Weight (kg/pc)

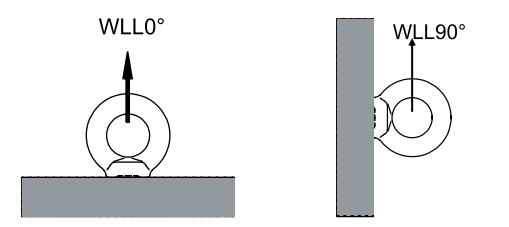

Part No.	Size (in)	WLL 0°	WLL 90°	D±1	Φ±0.6	L±0.5	Weight (kg/pc)
8CR582EN06	M6	0.4	0.15	36	20	36	0.049
8CR582EN08	M8	1	0.4	36	20	36	0.05
8CR582EN10	M10	1	0.4	45	25	45	0.09
8CR582EN12	M12	2	0.75	54	30	53	0.16
8CR582EN16	M16	4	1.5	63	35	62	0.24
8CR582EN20	M20	6	2.3	63	35	62	0.36
8CR582EN24	M24	8	3.2	72	40	71	0.72
8CR582EN30	M30	12	4.5	72	40	71	1.32
8CR582EN36	M36	16	7	81	45	81	2.08
8CR582EN42	M42	24	9	90	50	90	3.11
8CR582EN48	M48	32	12	90	50	90	5.02
