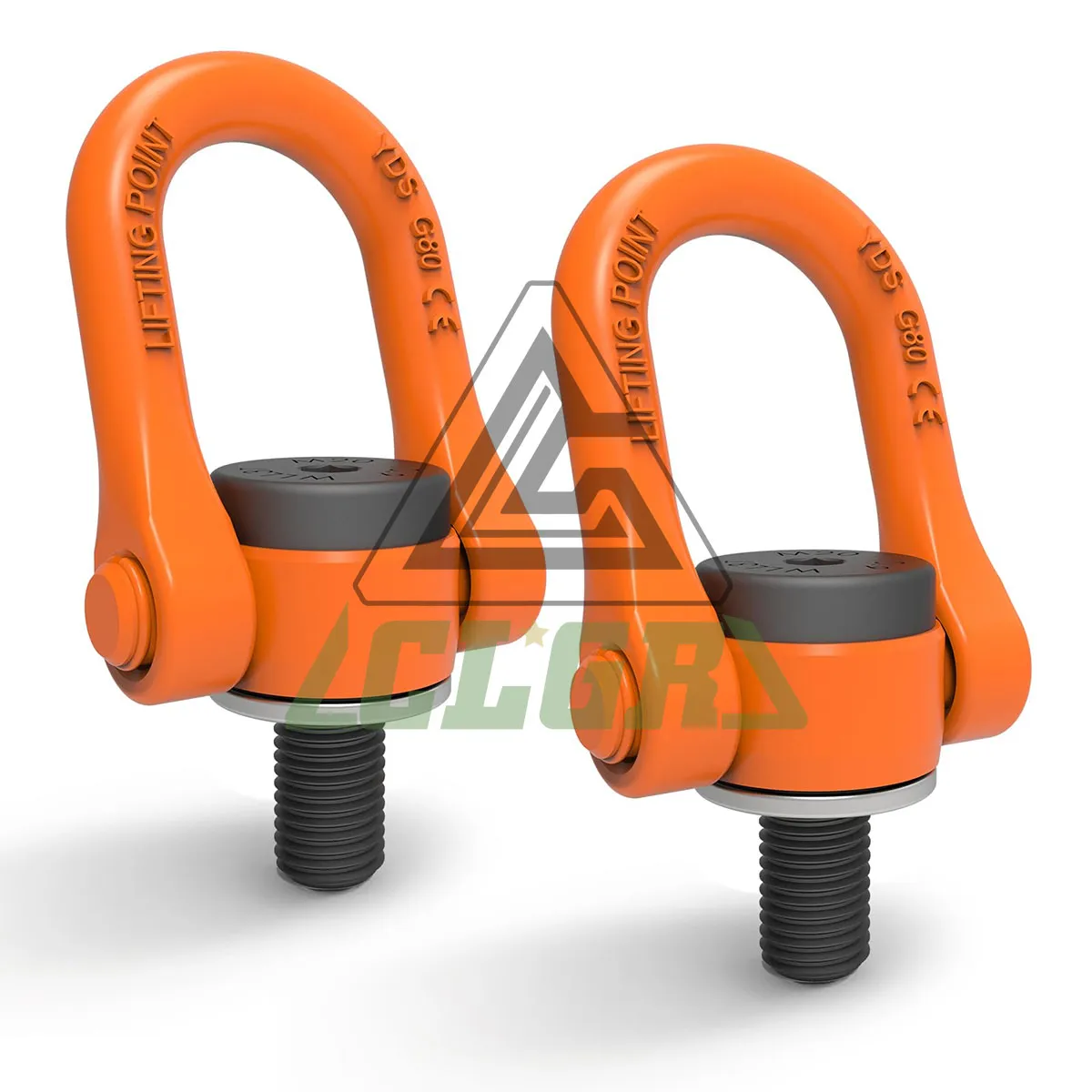

CLGR® Double Swivel Shackle Grade 80

Name: CLGR® Double Swivel Shackle Grade 80
Brand: CLGR®

CLGR® Double Swivel Shackle Grade 80, aslo known as Grade 80 Double Swivel Eye Bolt, Swivel Lifting Shackle, Universal Double Swivel Shackle, Universal Swivel Shackle, G80 Swivel Hoist Ring and Grade 80 Swivel Lifting Eye Bolt with Ring.

Forged from alloy steel in compliance with EN 1677-1, this Swivel Shackle Grade 80 is engineered with a double swivel design, delivering exceptional flexibility for smooth handling and precise load control in heavy‑duty lifting operations.

Metric Threads Available (specify available thread options) for compatibility with various rigging components. G80 Lifting Screw Point size available in Metric thread M8, M10, M12, M14, M16, M20, M24, M30, M33, M36, M39, M42, M45, M48, M52, M56, M64, M72, M80, M90, M100, UNC Thread 5/16, 3/8, 7/16, 1/2, 5/8, 3/4, 1, 1-1/4, 1-1/2, 1-3/4, 2, 2-1/2.

To Get A Quote >

Overview of CLGR® Double Swivel Shackle Grade 80

Brand	CLGR®
Standard	Manufactured in compliance with the EN 1677-1
Feature	360° rotation – 180° swivel
Safety factor	4:1 and 5:1
Size – Thread	G80 Lifting Screw Point size available in Metric thread M8, M10, M12, M14, M16, M20, M24, M30, M33, M36, M39, M42, M45, M48, M52, M56, M64, M72, M80, M90, M100. UNC Thread 5/16, 3/8, 7/16, 1/2, 5/8, 3/4, 1, 1-1/4, 1-1/2, 1-3/4, 2, 2-1/2.

Specifications of CLGR® Double Swivel Shackle Grade 80

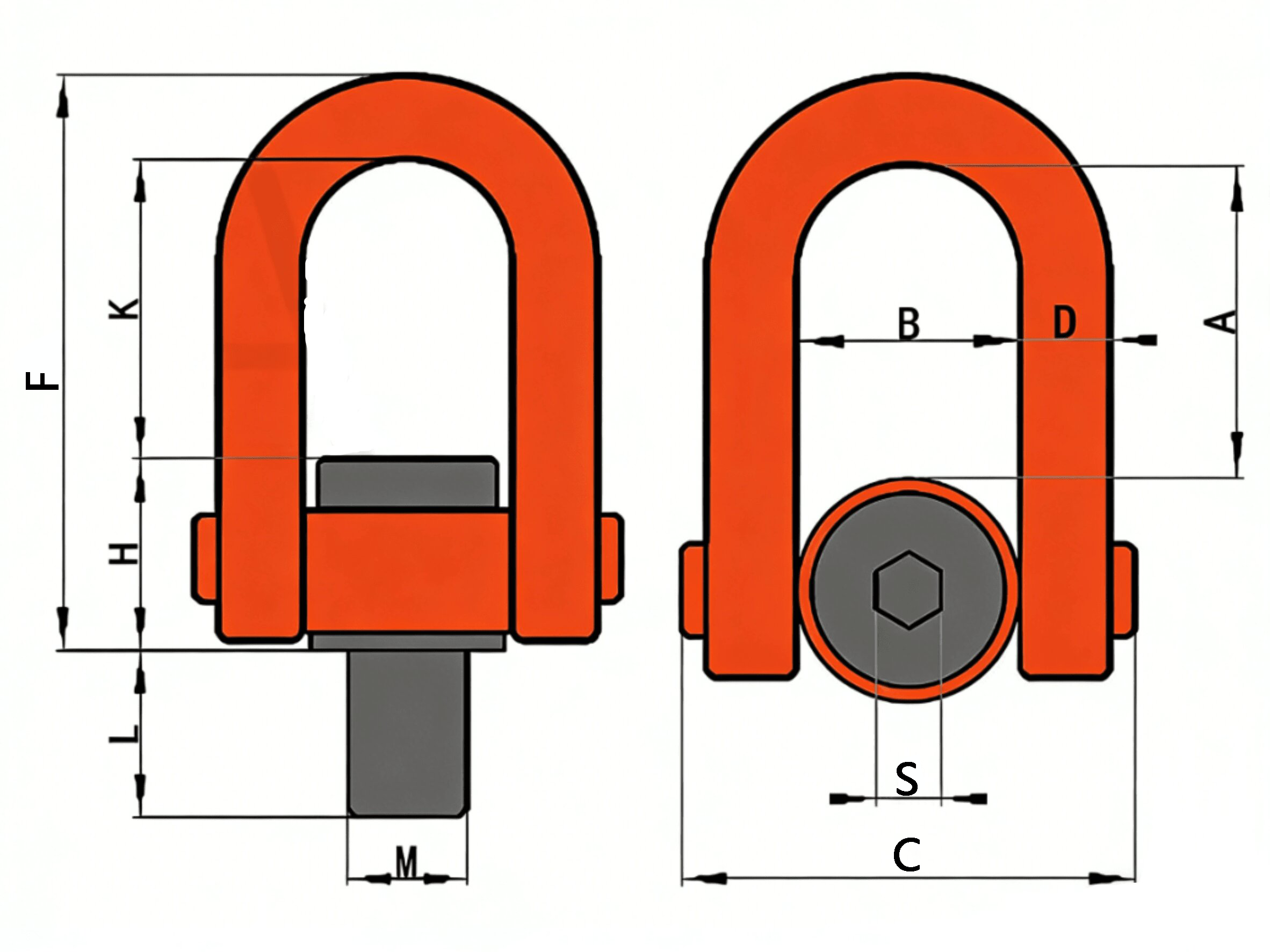

drawing-of-clgr®-double-swivel-shackle-grade-80-china-supplier

Part No.	WLL/t (4:1)	L	A	B	C	D	F	K	M	H	S	Torque Nm	Weight Kg
8CRM8NAL12	0.5	12	48.5	37	76	14	103.5	49.5	8	40	10.5	30	0.8
8CRM10NAL16	0.7	16	48.5	37	76	14	103.5	49.5	10	40	10.5	60	0.8
8CRM12NAL18	1	18	48.5	37	76	14	103.5	49.5	12	40	10.5	100	0.8
8CRM14NAL21	1.5	21	48.5	37	76	14	103.5	49.5	14	40	10.5	120	0.8
8CRM16NAL24	2	24	48.5	37	76	14	103.5	49.5	16	40	10.5	150	0.8
8CRM20NAL40	3	40	73	54	106	20	151	77	20	54	14.5	250	2
8CRM24NAL40	4.5	40	73	54	106	20	151	77	24	54	14.5	400	2.5
8CRM30NAL45	7.3	45	98.5	74	149	30	206.5	103.5	30	73	22.5	500	5.5
8CRM33NAL50	8	50	98.5	74	149	30	206.5	103.5	33	73	22.5	800	5.5
8CRM36NAL54	10	54	98.5	74	149	30	206.5	103.5	36	73	22.5	1000	5.5
8CRM39NAL58	10	58	98.5	74	149	30	206.5	103.5	39	73	22.5	1200	6
8CRM42NAL63	12.5	63	98.5	74	149	30	206.5	103.5	42	73	22.5	1500	6
8CRM45NAL63	15	63	98.5	74	149	30	206.5	103.5	45	73	22.5	1800	6
8CRM48NAL68	20	68	117.5	93	183	36	255	122	48	93	27.5	2000	11.5
8CRM52NAL68	20	68	117.5	93	183	36	255	122	52	93	27.5	2000	12
8CRM56NAL78	25	78	117.5	93	183	36	255	122	56	93	27.5	2100	12
8CRM64NAL90	32	90	117.5	93	183	36	255	122	64	93	27.5	2200	13
8CRM64BAL100	33	100	186	148	279	58.5	401	192	64	144	36.5	2720	42
8CRM72BAL110	35	110	186	148	279	58.5	401	192	72	144	36.5	3200	43
8CRM80BAL120	40	120	186	148	279	58.5	401	192	80	144	36.5	3600	45
8CRM90BAL135	45	135	186	148	279	58.5	401	192	90	144	36.5	4100	47
8CRM100BAL150	50	150	186	148	279	58.5	401	192	100	144	36.5	4500	50

Specification – UNC Thread

Part No.	WLL/t (4:1)		A	B	C	D	F	K	M	H		Torque Nm	Weight Kg
8CR5/16NAL12	0.5	12	48.5	37	76	14	103.5	49.5	5/16	40	10.5	30	0.8
8CR3/8NAL16	0.7	16	48.5	37	76	14	103.5	49.5	3/8	40	10.5	60	0.8
8CR7/16NAL18	1	18	48.5	37	76	14	103.5	49.5	7/16	40	10.5	100	0.8
8CR1/2NAL21	1.5	21	48.5	37	76	14	103.5	49.5	1/2	40	10.5	120	0.8
8CR5/8NAL24	2	24	48.5	37	76	14	103.5	49.5	5/8	40	10.5	150	0.8
8CR3/4NAL40	3	40	73	54	106	20	151	77	3/4	54	14.5	250	2
8CR1NAL40	4.5	40	73	54	106	20	151	77	1	54	14.5	400	2.5
8CR1-1/4NAL45	8	50	98.5	74	149	30	206.5	103.5	1-1/4	73	22.5	800	5.5
8CR1-1/2NAL54	10	54	98.5	74	149	30	206.5	103.5	1-1/2	73	22.5	1000	5.5
8CR1-3/4NAL63	15	63	98.5	74	149	30	206.5	103.5	1-3/4	73	22.5	1800	6
8CR2NAL68	20	68	117.5	93	183	36	255	122	2	93	27.5	2000	12
8CR2-1/2NAL90	32	90	117.5	93	183	36	255	122	2-1/2	93	27.5	2200	13

Safety Information

Lifting scheme
Number of Rings	1	2	1	2	2		2	3 or 4		3 or 4
Lifting Angle	0°	0°	90°	90°	0-45°	45-60°	asymmetric	0-45°	45-60°	asymmetric
Part No.	WLL/t
8-CR-M8-NAL12	0.5	1	0.5	1	0.7	0.5	0.5	1.1	0.8	0.5
8-CR-M10-NAL16	0.7	1.4	0.7	1.4	1	0.7	0.7	1.5	1.1	0.7
8-CR-M12-NAL18	1	2	1	2	1.4	1	1	2.1	1.5	1
8-CR-M14-NAL21	1.5	3	1.5	3	2.1	1.5	1.5	3.15	2.3	1.5
8-CR-M16-NAL24	2	4	2	4	2.8	2	2	4.2	3	2
8-CR-M20-NAL40	3	6	3	6	4.2	3	3	6.3	4.5	3
8-CR-M24-NAL40	4.5	9	4.5	9	6.3	4.5	4.5	9.45	6.8	4.5
8-CR-M30-NAL45	7.3	14.6	7.3	14.6	10.2	7.3	7.3	15.3	11	7.3
8-CR-M33-NAL50	8	16	8	16	11.2	8	8	16.8	12	8
8-CR-M36-NAL54	10	20	10	20	14	10	10	21	15	10
8-CR-M39-NAL58	10	20	10	20	14	10	10	21	15	10
8-CR-M42-NAL63	12.5	25	12.5	25	17.5	12.5	12.5	26.3	18.8	12.5
8-CR-M45-NAL63	15	30	15	30	21	15	15	31.5	22.5	15
8-CR-M48-NAL68	20	40	20	40	28	20	20	42	30	20
8-CR-M52-NAL68	20	40	20	40	28	20	20	42	30	20
8-CR-M56-NAL78	25	50	25	50	35	25	25	53	37.5	25
8-CR-M64-NAL90	32	64	32	64	45	32	32	67	48	32
8-CR-M64-BAL100	33	66	33	66	46.2	33	33	69.3	49.5	33
8-CR-M72-BAL110	35	70	35	70	49	35	35	73.5	52.5	35
8-CR-M80-BAL120	40	80	40	80	56	40	40	84	60	40
8-CR-M90-BAL135	45	90	45	90	63	45	45	95	67.5	45
8-CR-M100-BAL150	50	100	50	100	70	50	50	105	75	50
8-CR-5/16-NAL12	0.5	1	0.5	1	0.7	0.5	0.5	1.1	0.8	0.5
8-CR-3/8-NAL16	0.7	1.4	0.7	1.4	1	0.7	0.7	1.5	1.1	0.7
8-CR-7/16-NAL18	1	2	1	2	1.4	1	1	2.1	1.5	1
8-CR-1/2-NAL21	1.5	3	1.5	3	2.1	1.5	1.5	3.15	2.3	1.5
8-CR-5/8-NAL24	2	4	2	4	2.8	2	2	4.2	3	2
8-CR-3/4-NAL40	3	6	3	6	4.2	3	3	6.3	4.5	3
8-CR-1-NAL40	4.5	9	4.5	9	6.3	4.5	4.5	9.45	6.8	4.5
8-CR-1-1/4-NAL45	8	16	8	16	11.2	8	8	16.8	12	8
8-CR-1-1/2-NAL54	10	20	10	20	14	10	10	21	15	10
8-CR-1-3/4-NAL63	15	30	15	30	21	15	15	31.5	22.5	15
8-CR-2-NAL68	20	40	20	40	28	20	20	42	30	20
8-CR-2-1/2-NAL90	32	64	32	64	45	32	32	67	48	32

The data in this table refers to the weight of all objects that can be lifted by all rings under this lifting scheme.

Lifting Angle: refers to the Angle between the spreader and the vertical line.For multi-limb spreader, Max value is taken.
