CLGR® Gin Wheel Scaffolding Pulley

Name: CLGR® Gin Wheel Scaffolding Pulley
Brand: CLGR®

CLGR® Gin Wheel Scaffolding Pulley, also known as Scaffold Hoist Pulley, Hoist Pulley Wheel, Construction rope pulley, and Masonry pulley.

Gin Wheel Scaffolding Pulley is built with a durable steel housing and a smooth-rolling wheel, it ensures efficient and safe rope operation.

Building block for manual lifting and lowering of loose loads using polyamide or textile rope, hook type,eye type, load capacity 500 kg,1000kg.

Ideal for lifting bricks, mortar, tools, and other building materials to upper floors or scaffold platforms.

To Get A Quote >

 

Overview of CLGR® Gin Wheel Scaffolding Pulley

Brand	CLGR®
Material	Carbon Steel
Type	Size Hook: 5″, 6″, Eye: 5″, 6″
Origin	China

Specifications of CLGR® Gin Wheel Scaffolding Pulley

With Hook:

No.	Size	W.L.L	Dia of Rope	Net Weight
No.	in	kgs	mm	kgs
CRWST17005H	5″	500	24	2
CRWST17006H	6″	1000	26	3.3

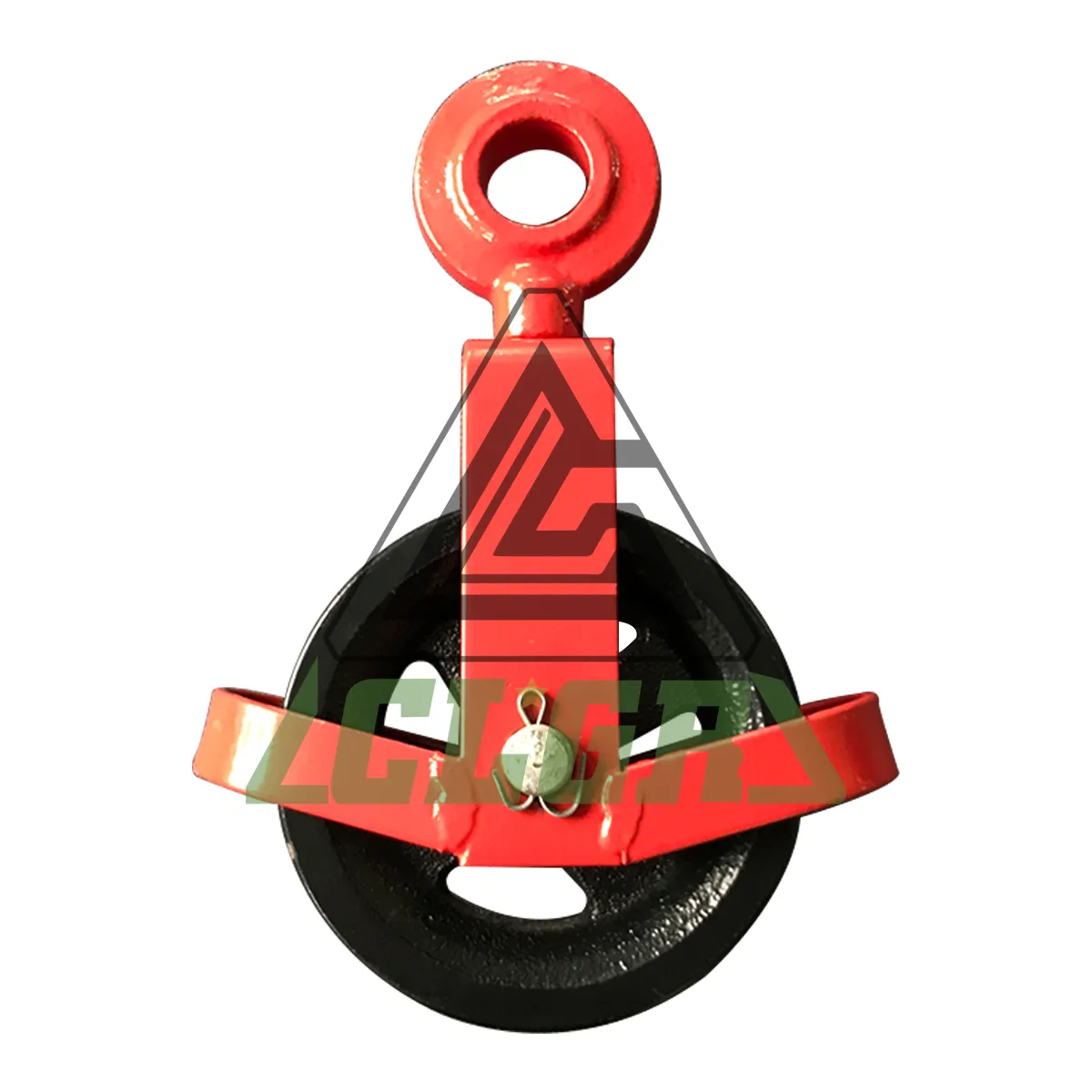

With Eye:

No.	Size	W.L.L	Dia of Rope	Net Weight
No.	in	kgs	mm	kgs
CRWST17005E	5″	500	24	2.1
CRWST17006E	6″	1000	26	3.4
