CLGR® Nylon Rope Wooden Block Double Wheel

Name: CLGR® Nylon Rope Wooden Block Double Wheel
Brand: CLGR®

CLGR® Nylon Rope Wooden Block Double Wheel, also known as Nylon Rope Wooden Pulley, External Bound Wooden Block.

Nylon Rope Wooden Block, available with single or double sheave, is fitted with a thimble and shackle. The thimble prevents rope chafing while the shackle provides secure rigging attachment. Ideal for sail handling, mast rigging, and cargo lifting on ships.

Available in a range of sizes: 100in, 120in, 140in, 180in to suit various rigging configurations.

To Get A Quote >

Overview of CLGR® Nylon Rope Wooden Block Double Wheel

Brand	China CLGR®
Materials	Wood and Super Carbon Steel
Craft	Machining/Stamping/Forging/Hot Dipped Galvanized
Size	100inch, 120inch, 140inch, 180inch

Specification of CLGR® Nylon Rope Wooden Block Double Wheel

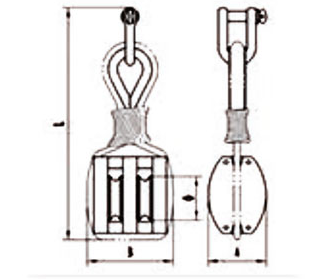

Part No.	Size	SWL/TON	Diam	∅	L	A	B	Weight(KG)
CRNWBD06	100mm	0.7	10mm	65	285	80	114	0.72
CRNWBD07	120mm	0.98	12mm	80	345	90	138	1.44
CRNWBD08	140mm	1.32	14mm	90	415	105	157	4.48
CRNWBD09	180mm	2.2	18mm	120	520	128	184	8.58
