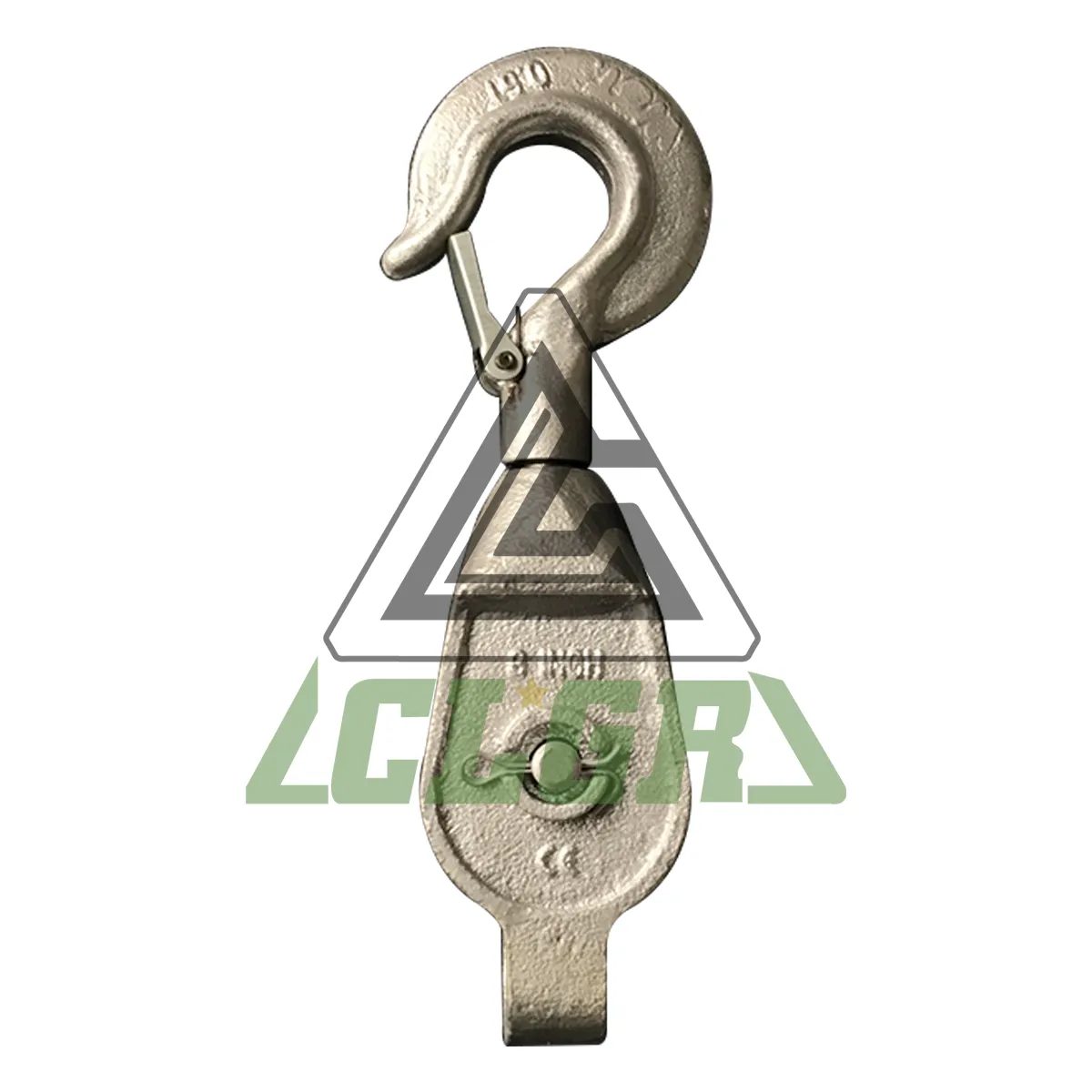

CLGR® Galvanised Malleable Iron Pulley Block Single Sheave with Hook

Name: CLGR® Galvanised Malleable Iron Pulley Block Single Sheave with Hook
Brand: CLGR®

CLGR® Galvanised Malleable Iron Pulley Block Single Sheave with Hook, also known as Malleable Single Wheel Pulley Block, Pulley Block with Swivel Hook Galvanised or Single Sheave Pulley Block with Swivel Safety Hook.

This galvanised malleable iron pulley block features galvanised iron blocks with plain bore sheaves. And with a swivel hook and a hot-dipped galvanized body.

Designed for fiber rope, the block is CE marked with size and WLL clearly shown. Certification is available on request.

To Get A Quote >

CLGR® Galvanised Malleable Iron Pulley Block Single Sheave with Hook China Supplier

CLGR® Galvanised Malleable Iron Pulley Block Single Sheave with Hook

Overview of Galvanised Malleable Iron Pulley Block Single Sheave with Hook

Brand	CLGR®
Type	Galvanised Malleable Iron Pulley Block Single Sheave with Hook
Material	Malleable Iron
Surface Finished	Hot dipped galvanized finish
Size	0.2 T, 0.4T, 0.5T, 1 T, 1.1T, 1.2T, 1.6T,1.8 T
Origin	China

Specifications of Galvanised Malleable Iron Pulley Block Single Sheave with Hook

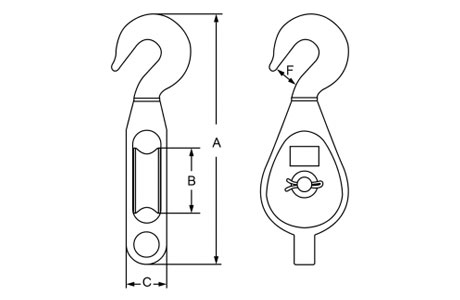

drawing-of-galvanised-malleable-iron-pulley-block-single-sheave-with-hook-china-supplier

Part No	Rope diameter (mm)	SHELL (inches)	SHELL (mm)	A (mm)	B (mm)	C (mm)	F (mm)	SWL (tonnes)	Weight (kg)
CRMISBSH01	12	3″	76	194	45	29	16	0.2	0.931
CRMISBSH02	16	4″	102	248	60	32	27	0.4	1.747
CRMISBSH03	18	5″	127	305	83	38	32	0.5	2.692
CRMISBSH04	24	6″	152	356	92	51	32	1	4
CRMISBSH05	28	8″	203	400	137	56	32	1.2	6
CRMISBSH06	32	10″	254	486	178	60	48	1.8	13

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
