CLGR® Roller Shackle Pulley Block

Name: CLGR® Roller Shackle Pulley Block
Brand: CLGR®

CLGR® Roller Shackle Pulley Block is used as lifting shackle.

Roller shackles undergo a drop forging process and feature a hexagon bolt pin and nut. The pin thread end is specially designed with a cotter pin hole, ensuring a secure fastening mechanism and effectively preventing loosening of the nut.

To Get A Quote >

Overview of CLGR® Roller Shackle Pulley Block

Material	Steel
Surface Finished	Galvanized
Size	16mm, 19mm, 25mm, 28mm, 32mm
Brand	CLGR®
Origin	China

Specification of CLGR® Roller Shackle Pulley Block

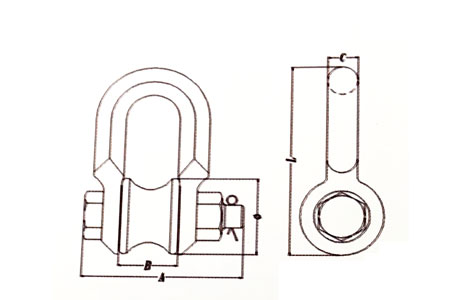

Drawing of CLGR® Roller Shackle Pulley Block

Stock No.	Size	WLL(T)	Rope size up to	Dimension(mm)
Stock No.	Size	WLL(T)	Rope size up to	A	B	C	L	Φ	Weight(KG)
CRRSP-16	16mm	1	16mm	89.5	27	16	95.5	44	0.7
CRRSP-19	19mm	2	18mm	103	32	19	115.5	50	1.1
CRRSP-25	25mm	3	20mm	125	47	25	161	63	2.5
CRRSP-28	28mm	4	24mm	146	54	28	186.5	74	3.8
CRRSP-32	32mm	5	34mm	165	65	32	208.5	92	5.5
