CLGR® Open Type Pulley Block Single Sheave With Eye 7311

Name: CLGR® Open Type Pulley Block Single Sheave With Eye 7311
Brand: CLGR®

CLGR® Open Type Pulley Block Single Sheave With Eye 7311, also known as Single Pulley Snatch Block With Eye.

This single sheave block features an open type design for easy rope insertion and cleaning. The open side allows the rope to be inserted directly into the sheave.

Available in various sizes and working load limits to meet different job requirements.

To Get A Quote >

CLGR® Open Type Pulley Block Single Sheave With Eye 7311 China Supplier

CLGR® Open Type Pulley Block Single Sheave With Eye 7311

CLGR® Open Type Pulley Block Single Sheave With Eye 7311 China Manufacturer

Overview of CLGR® Open Type Pulley Block Single Sheave With Eye 7311

Brand	China CLGR®
Type	Single Sheave Block 7311
Material	Steel
Surface	Color Painted or Galvanized
Size	2″, 3″, 4″, 5″, 6″, 7″, 8″, 10″, 12″
Application	Lifting Equipment

Specifications of CLGR® Open Type Pulley Block Single Sheave With Eye 7311

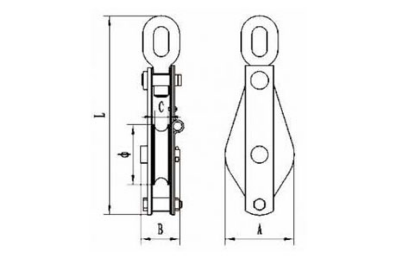

drawing-of-clgr®-open-type-pulley-block-single-sheave-with-eye-7311-china-supplier

Part No.	Size	SWL/Ton	Diam	∅	L	A	B	C	Weight (KG)
CR7311E-2	2	0.25	6mm	49	217	58	32	11	0.8
CR7311E-3	3	0.5	8mm	70.5	268	81	44.5	13	1.5
CR7311E-4	4	1	10mm	97	330	112	51	16	2.3
CR7311E-5	5	1.5	13mm	125	400	140	55	17	3.7
CR7311E-6	6	2	16mm	146	460	168	75	22	5.5
CR7311E-7	7	3	19mm	173	505	186	81.5	25	8.5
CR7311E-8	8	4	22mm	200	535	212	81.5	26	10
CR7311E-10	10	5	25mm	250	611	276	85	28	16
CR7311E-12	12	6	28mm	300	661	326	85	28	25.5
