CLGR® G80 Clevis Skip Hook with Spring Gate

Name: CLGR® G80 Clevis Skip Hook with Spring Gate
Brand: CLGR®

CLGR® G80 Clevis Skip Hook with Spring Gate, also known as G80 Clevis Skip Bin Hook, Skip Hook With Spring Gate Hook.

CLGR® G80 Clevis Skip Hook with Spring Gate is a kind of container clevis link, used in the retrieval of rubbish skips or industrial recycling bins.

Made of superior Alloy steel and complying with AS 3776, the spring locking pin is designed to prevent the lifting chains from disengaging.

For use with 13mm Grade 80 Alloy Chain.

To Get A Quote >

CLGR® G80 Clevis Skip Hook with Spring Gate

CLGR® G80 Clevis Skip Hook with Spring Gate China Supplier

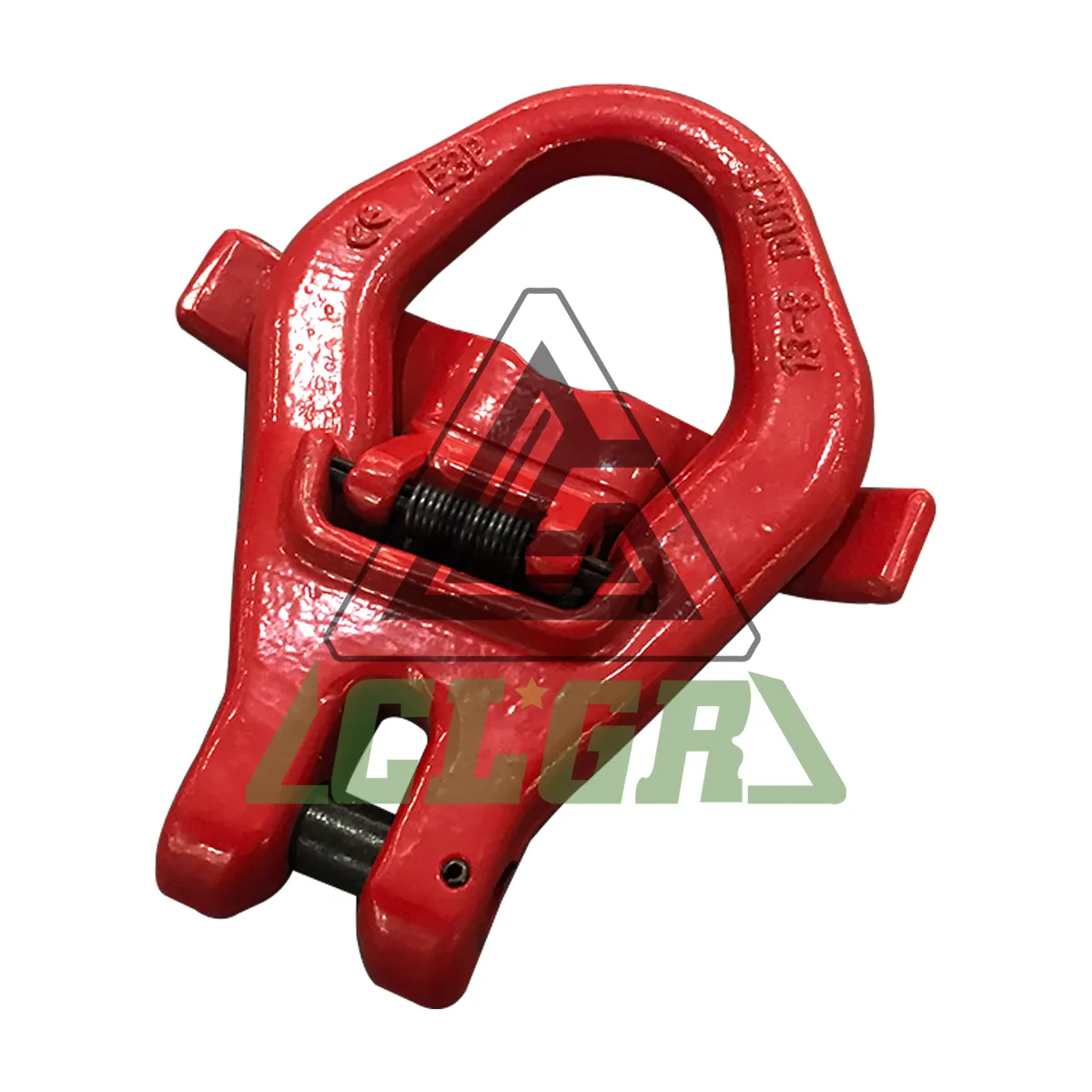

CLGR® G80 Clevis Skip Hook with Spring Gate China Manufacturer

Overview of CLGR® G80 Clevis Skip Hook with Spring Gate

Brand	CLGR®
Material	Superior Alloy steel
Processing	Drop Forged / Quenched and Tempered
Finish	Powder Coated
Size	7/8mm, 10mm, 13mm, 16mm
Safety Factor	4:1

Specifications of CLGR® G80 Clevis Skip Hook with Spring Gate

Drawings of CLGR® G80 Clevis Skip Hook with Spring Gate China

Part No.	WEIGHT (KG)	WLL (T)	B.L (T)	A	B±1	C±1	H±2	L±2
8-CR-CSHC-13mm	1.9	5.3	21.2	15.5	60	71.5	104	195
