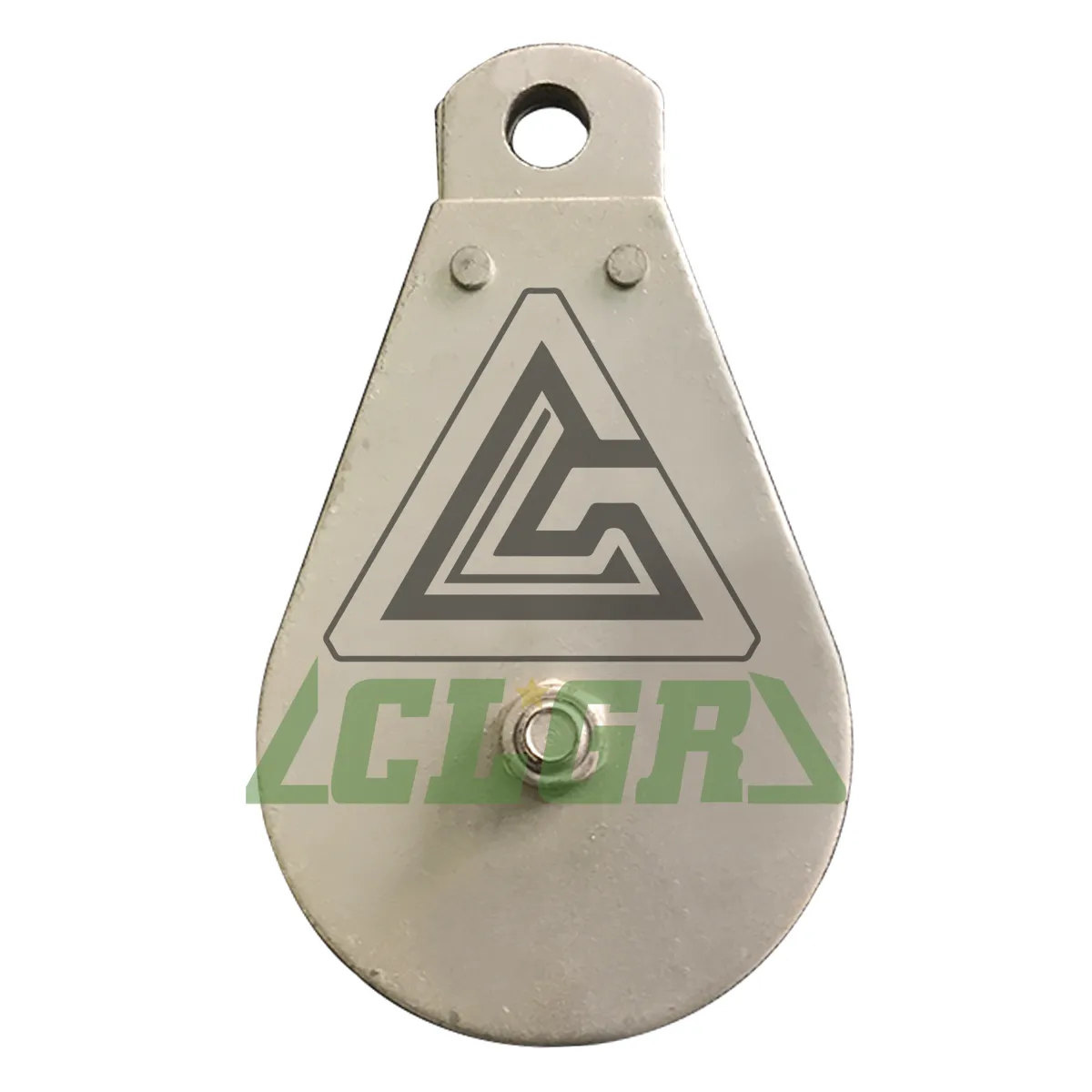

CLGR® Fixed Eye Pulley Block

Name: CLGR® Fixed Eye Pulley Block
Brand: CLGR®

CLGR® Fixed Eye Pulley Block, also known as Single Fixed Eye Block, and Fixed Eye Wire Rope Block Single.

The Fixed eye pulley block features a forged eye with oil impregnated bushing, grooved for wire rope.

These pulley blocks have attached fixed eyes that connect with anchor points and equipment like hooks, rope, and links.

To Get A Quote >

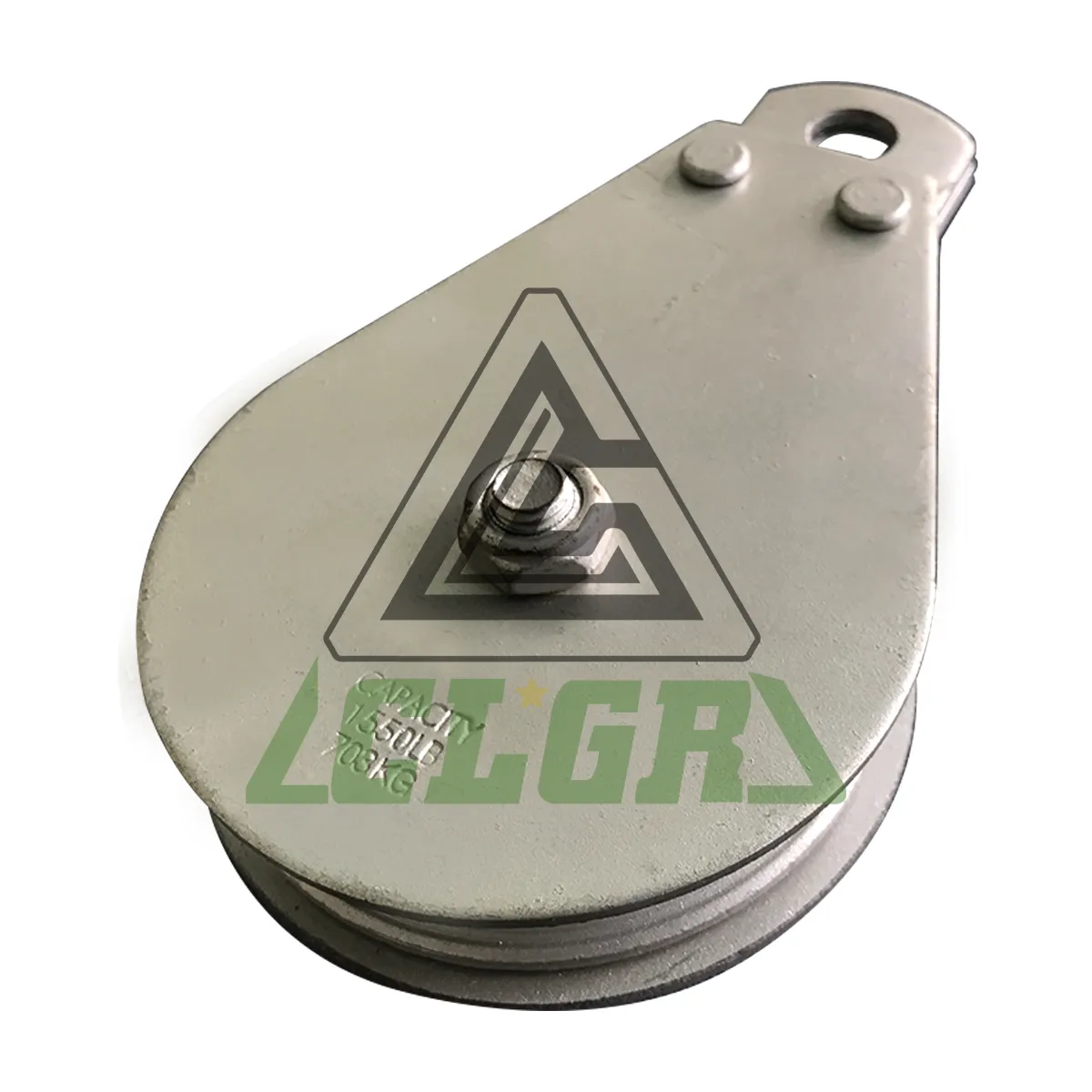

CLGR® Fixed Eye Pulley Block China Supplier

Overview of CLGR® Fixed Eye Pulley Block

Brand	China CLGR®
Materials	Steel
Mount Type	Upright Mount
Size	1½”, 2″, 2½”, 3″, 3½

Specification of CLGR® Fixed Eye Pulley Block

No.	SIZE	WLL	DIAM of ROPE	NET Weight
No.	in	lbs	in	kgs
CR19003	1-1/2″	525	3/16	0.18
CR19004	2″	600	3/16	0.28
CR19005	2-1/2″	685	1/4	0.45
CR19006	3″	800	1/4	0.6
CR19007	3-1/2″	1550	5/16	1.46

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
