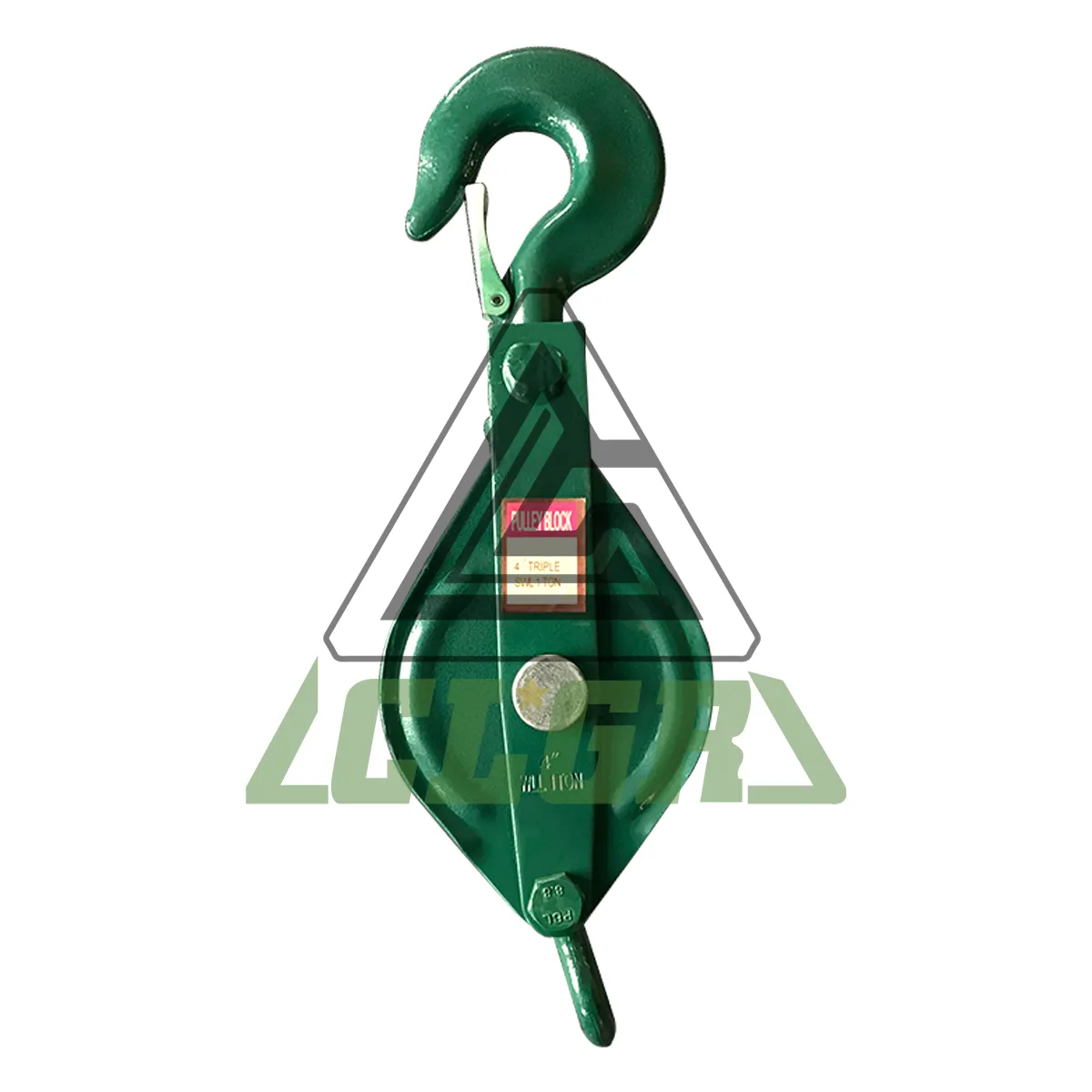

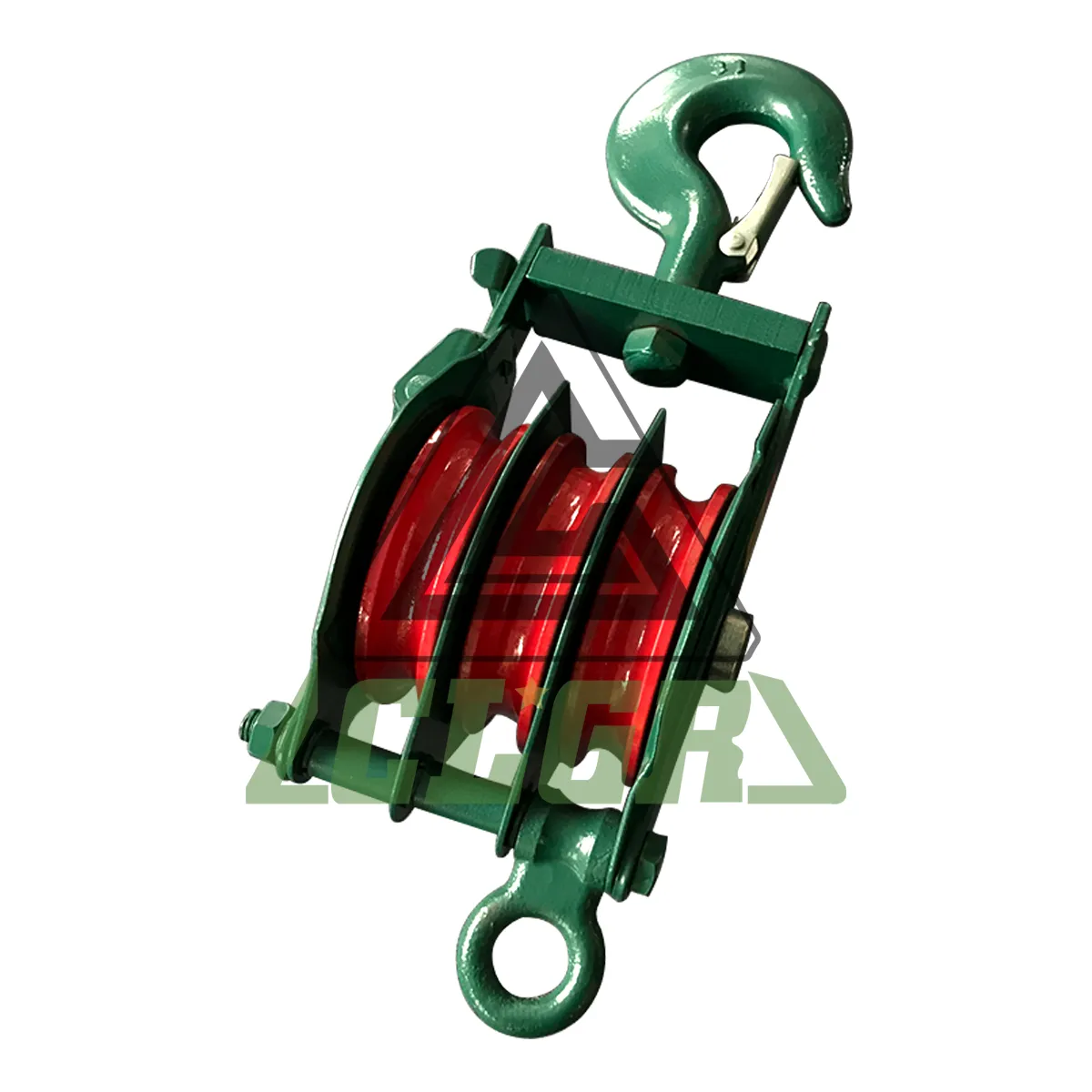

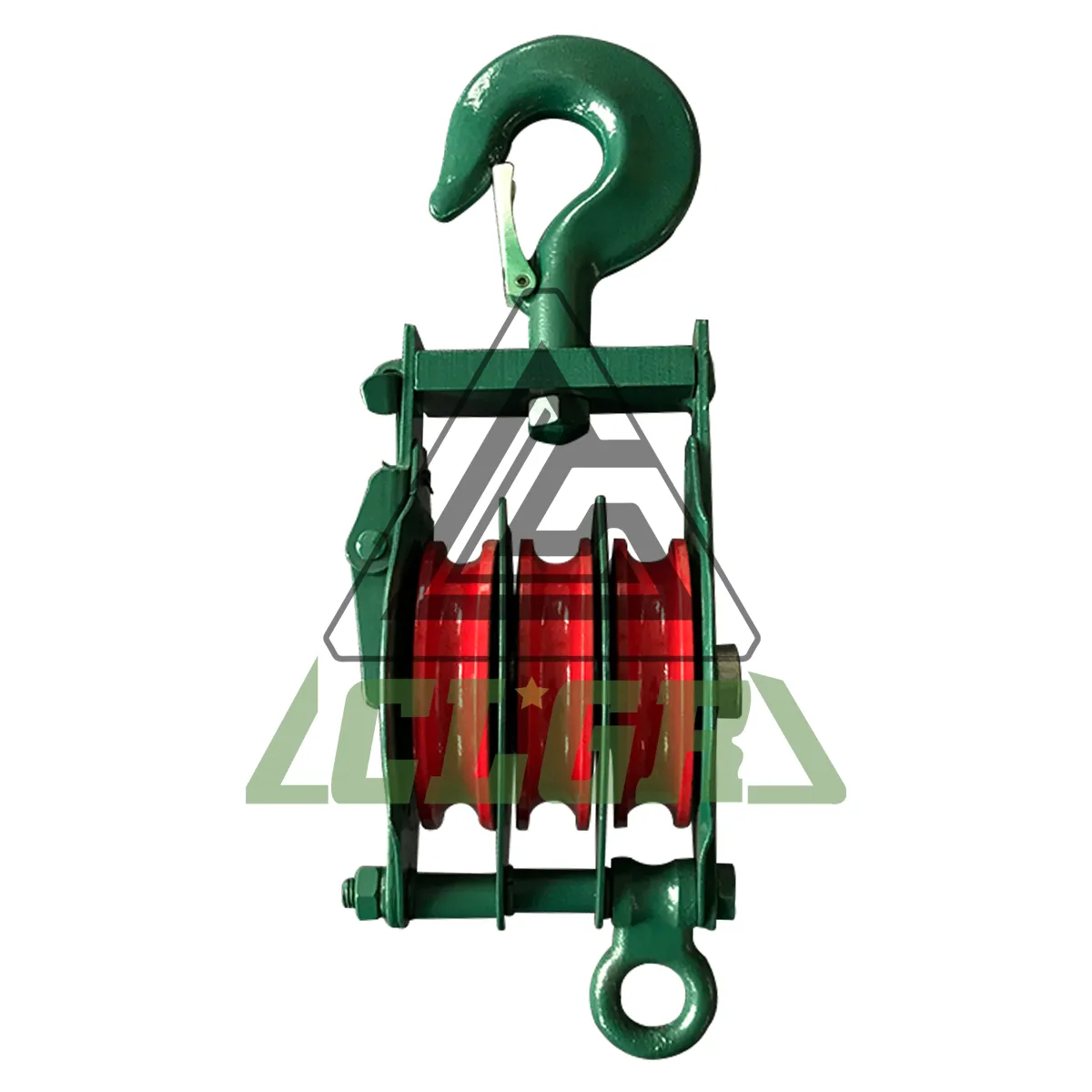

CLGR® Open Type Pulley Block Triple Sheave with Hook

Name: CLGR® Open Type Pulley Block Triple Sheave with Hook
Brand: CLGR®

CLGR® Open Type Pulley Block Triple Sheave, also known as Wire Rope Pulley, Triple Pulley Block.

The triple pulley block features three sheaves and is available with hook, eye, or shackle connections. Both snatch (open) and closed types are offered, with WLL values varying slightly depending on the configuration.

Designed to change rope or cable direction, the block provides a smooth running surface. Unlike moving snatch blocks, this triple pulley block is typically stationary during operation.

To Get A Quote >

Overview of CLGR® Open Type Pulley Block Triple Sheave with Hook

Brand	China CLGR®
Type	Triple Sheave Snatch Block 7113
Material	Carbon Steel
Surface	Color Painted
Size	2″, 3″, 4″, 5″, 6″, 7″, 8″, 10″, 12″
Application	Lifting Equipment

Specifications of CLGR® Open Type Pulley Block Triple Sheave with Hook

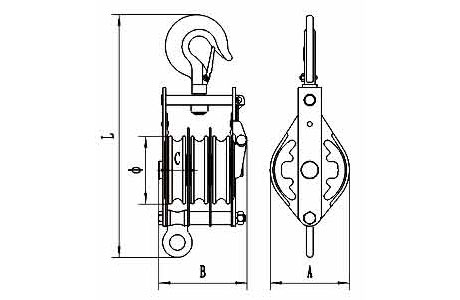

drawing-of-clgr®-open-type-pulley-block-triple-sheave-with-hook-china-supplier

Part No.	Size	SWL/LBS	Diam	∅	L	A	B	C	Weight(KG)
CR7113H-2	2″	0.25	6mm	50	195	58	86.5	86.5	1.75
CR7113H-3	3″	0.5	8mm	71	294	88	113	113	2.8
CR7113H-4	4″	1	10mm	96	348	112	130	130	4.75
CR7113H-5	5″	1.5	13mm	121	402	140	147	147	7.8
CR7113H-6	6″	2	16mm	148	480	164	171	171	11.4
CR7113H-7	7″	3	19mm	173	547	196	192	192	17.7
CR7113H-8	8″	4	22mm	200	576	220	211	211	24.5
CR7113H-10	10″	5	25mm	250	683	272	214	214	35.5
CR7113H-12	12″	6	28mm	300	755	320	214	214	41
