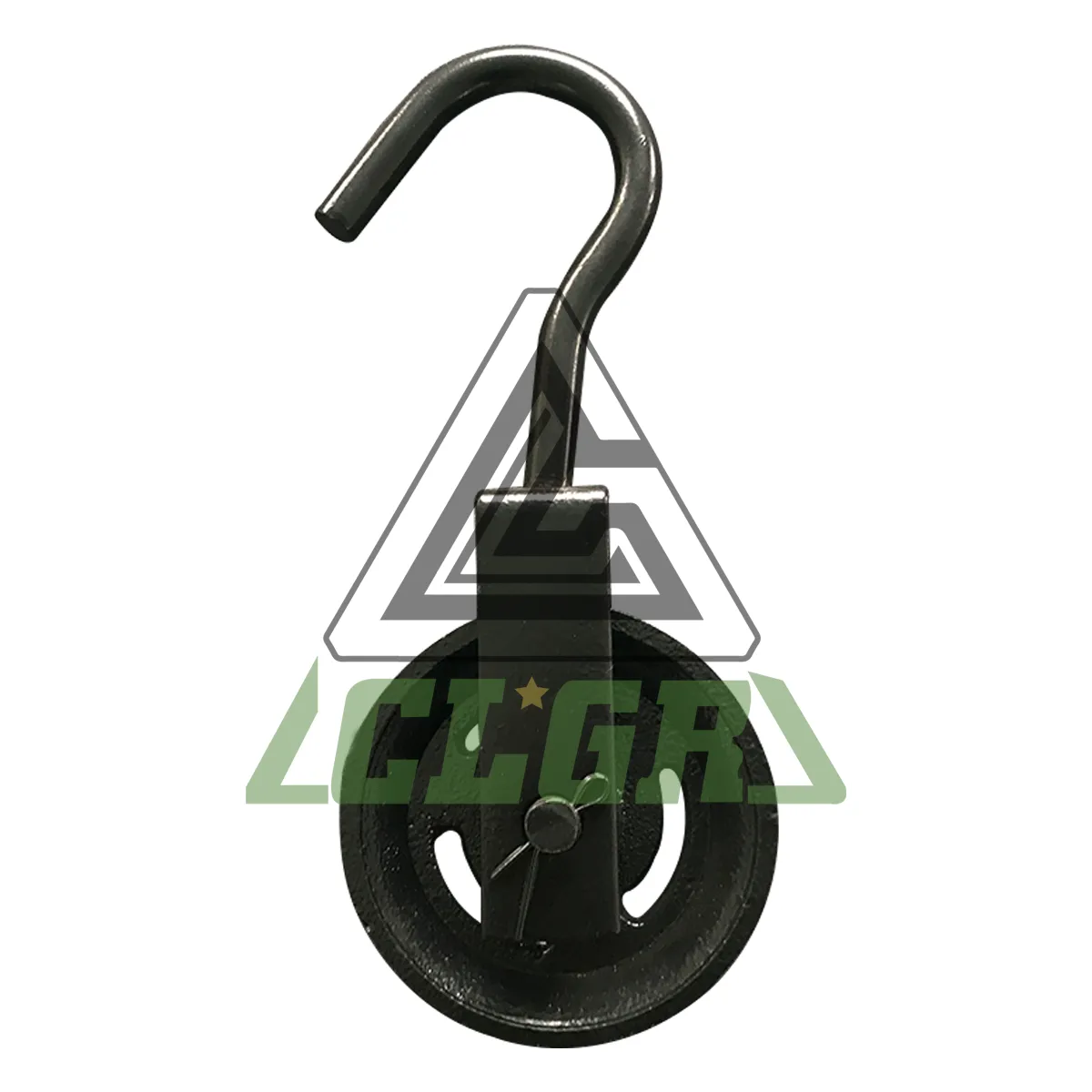

CLGR® Cast Iron Gin Block Pulley Block

Name: CLGR® Cast Iron Gin Block Pulley Block
Brand: CLGR®

CLGR® Cast Iron Gin Block Pulley Block is equipped with a suspension hook for secure attachment to a support point, such as a ceiling or beam.

The Gin Block makes it easier to hoist, lower, or move materials. It changes the direction of force applied through a rope, cable, or chain, allowing heavy loads to be lifted more easily and efficiently.

This design facilitates the lifting and transport of heavy loads, improving overall efficiency on the job site.

To Get A Quote >

Overview of CLGR® Cast Iron Gin Block Pulley Block

Brand	China CLGR®
Material	Carbon Steel
Surface Finished	Spray Painted
Size	75″, 100″, 120″, 145″, 165″, 180″, 195″, 200″, 220″, 250″, 300″
Features	Need manual operation. Used to assist in the loading of supplies and equipment onto a scaffold.

Specifications of CLGR® Cast Iron Gin Block Pulley Block

Part No.	Size	SWL(kg)	Dia of Rope	Qty(pcs)	N.W(kg)	WD Size
CRGWPB-75	75mm	150	20mm	200	0.8	110x70x45
CRGWPB-100	100mm	150	20mm	200	1.1	120x70x50
CRGWPB-120	120mm	150	20mm	100	1.25	102x77x51
CRGWPB-145	145mm	150	20mm	100	1.6	160x47x45
CRGWPB-165	165mm	200	22mm	100	2.1	100x70x57
CRGWPB-180	180mm	200	22mm	100	2.3	96x84x82
CRGWPB-195	195mm	200	24mm	100	2.9	110x70x57
CRGWPB-200	200mm	200	24mm	100	3.4	105x88x66
CRGWPB-220	220mm	220	24mm	80	3.8	110x90x56
CRGWPB-250	250mm	250	26mm	80	4	140x90x66
CRGWPB-300	300mm	300	32mm	40	5	118x110x80

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
