CLGR® Super Arch Rubber Fenders DAF Type

Name: CLGR® Super Arch Rubber Fenders DAF Type
Brand: CLGR®

CLGR® Super Arch Rubber Fenders DAF Type, also known as DAF Arch Fenders, Dock Fenders, Marine Fenders.

The Arch Rubber Fenders are premium marine fenders designed for heavy-duty berthing operations. As a specialized type of dock fender, they are built to withstand repeated impacts while protecting both the vessel and the pier structure.

The DAF Type stands out with a reinforced design. A high-density PE panel or a steel impact plate is securely mounted on the top face of the arch. This smart construction makes the fender much stronger and more wear-resistant than traditional arch fenders.

During ship docking, the front panel significantly reduces friction between the vessel's hull and the fender surface. This smooth contact not only protects the ship's paint and steel plates but also greatly extends the service life of the fender itself.

These dock fenders are ideal for a wide range of marine terminals, including general cargo berths, RoRo ramps, and large container ports. They offer reliable shock absorption and low reaction force, ensuring safe and efficient berthing every time.

We provide the rubber fenders in a full range of standard sizes. Custom dimensions and special materials can also be offer.

To Get A Quote >

Overview of CLGR® Super Arch Rubber Fenders DAF Type

Brand	CLGR®
Material	Rubber
Size & Color	Customized According To Customers' Requirements
Processing	Molded Pressing

Specifications of CLGR® Super Arch Rubber Fenders DAF Type

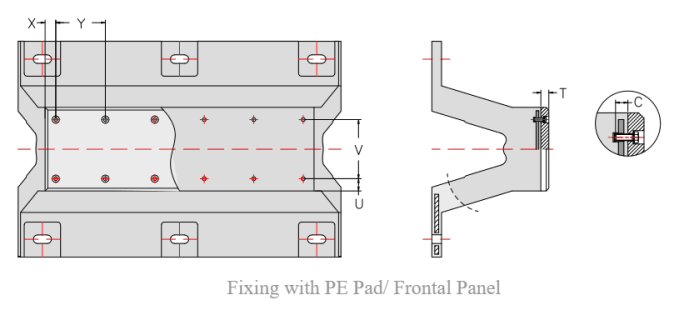

Drawing of CLGR® Super Arch Rubber Fenders DAF Type

Part No.	H	U	V	C	PE Face Pad				Steel Frame
	H	U	V	C	X	Y	T	Bolt Size	X	Y	Bolt Size
	mm
CARFDAV150H	150H	49	0	20~30	60~70	300~410	30	M16	70~150	250~300	M16
CARFDAV200H	200H	65	0	30~45	60~70	300~410	30	M16	70~150	250~300	M16
CARFDAV250H	250H	50	64	30~45	60~85	300~410	30	M16	70~150	250~300	M20
CARFDAV300H	300H	60	105	30~45	65~85	300~410	40	M16	70~150	250~300	M24
CARFDAV400H	400H	60	180	30~50	65~85	300~410	40	M16	70~150	250~300	M27
CARFDAV500H	500H	65	245	30~50	65~85	300~410	50	M20	70~150	250~300	M30
CARFDAV600H	600H	70	310	35~60	65~85	300~410	50	M20	70~150	250~300	M30
CARFDAV800H	800H	80	440	50~70	65~85	300~410	60	M24	70~150	250~300	M36
CARFDAV1000H	1000H	90	570	50~70	65~85	300~410	60	M24	70~150	250~300	M36
