CLGR® Super Cone Rubber Fender

Name: CLGR® Super Cone Rubber Fender
Brand: CLGR®

CLGR® Super Cone Rubber Fender, also known as Cone Fender.

CLGR® Super Cone Rubber Fender delivers the highest reaction force-to-energy absorption ratio among current products on the market, offering unmatched efficiency for safe berthing.

The tapered body with a large circular base remains exceptionally stable even under extreme compression angles. This geometry provides excellent shear strength, ensuring the fender handles angular forces and heavy impacts without twisting or failing.

With a deflection rate reaching 72.5%, the Super Cone absorbs roughly double the energy of standard fenders in the same size class. A built-in overload stop function protects the unit from excessive compression, ensuring a long service life and fewer replacements over time.

The rubber fender is designed to work alongside a steel impact plate, and it can also be paired with a low-friction UHMW-PE frontal panel. This combination reduces hull pressure, protects the ship's side plate, and makes the whole berthing system more durable.

This design is suitable for all types of docks, from large deep-water ports to general cargo terminals. Its simple structure allows for quick and easy installation.

Standard sizes are available, and we also offer full customization to match your exact pier dimensions and load requirements.

To Get A Quote >

Overview of CLGR® Super Cone Rubber Fender

Brand	CLGR®
Material	Rubber
Size & Color	Customized According To Customers' Requirements
Processing	Molded Pressing

Specifications of CLGR® Super Cone Rubber Fender

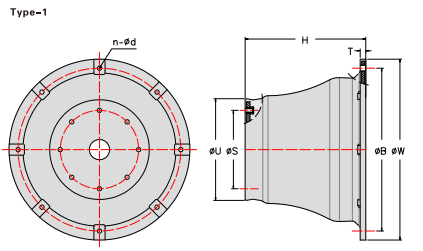

Drawing of CLGR® Super Cone Rubber Fender

Type 1

Part No.	H	T	ΦU	ΦS	ΦB	ΦW	Φd	Anchors	Weight
Part No.	mm	mm	mm	mm	mm	mm	mm	mm	(kg)
CSCORF500H	500	25	425	325	675	750	30	4-M24	142
CSCORF600H	600	27	510	390	810	900	30	6-M24	232
CSCORF700H	700	32	595	455	945	1050	38	6-M30	393
CSCORF800H	800	36	680	520	1080	1200	44	6-M36	540
CSCORF900H	900	41	765	585	1215	1350	44	6-M36	752
CSCORF1000H	1000	45	850	650	1350	1500	50	6-M42	1022
CSCORF1100H	1100	50	935	715	1485	1650	50	6-M42	1510
CSCORF1150H	1150	52	998	750	1550	1725	50	6-M42	1601
CSCORF1200H	1200	54	1020	780	1620	1800	50	8-M42	1960
CSCORF1300H	1300	59	1105	845	1755	1950	60	8-M48	2403
CSCORF1400H	1400	66	1190	930	1890	2100	60	8-M48	3060
CSCORF1600H	1600	72	1360	1060	2160	2400	70	8-M48	4605
CSCORF1800H	1800	78	1530	1190	2430	2700	76	10-M56	6608
CSCORF2000H	2000	80	1900	1540	2920	3200	76	10-M56	9200

Type 2

Part No.	H	T	ΦU	ΦS	ΦB	ΦW	Φd	Anchors	Weight
Part No.	mm	mm	mm	mm	mm	mm	mm	mm	(kg)
CSCORF500H	500	30-38	490	425	730	800	30	4-M24	165
CSCORF600H	600	35-42	590	515	875	960	38	4-M30	270
CSCORF700H	700	35-42	685	600	1020	1120	38	4-M30	415
CSCORF800H	800	35-42	785	685	1165	1280	38	6-M30	610
CSCORF900H	900	40-50	885	770	1313	1440	38	6-M30	840
CSCORF1000H	1000	40-50	980	855	1460	1600	44	6-M36	1120
CSCORF1100H	1050	45-55	1030	900	1530	1680	44	6-M36	1365
CSCORF1150H	1100	50-58	1080	940	1605	1760	44	8-M36	1565
CSCORF1200H	1200	50-58	1175	1025	1750	1920	50	8-M42	2030
CSCORF1300H	1300	50-58	1275	1100	1900	2080	60	8-M48	2460
CSCORF1400H	1400	60-70	1370	1195	2040	2240	60	8-M48	3110
CSCORF1600H	1600	70-80	1570	1365	2335	2560	60	8-M48	4660
CSCORF1800H	1800	70-80	1765	1540	2625	2880	76	10-M56	6640
CSCORF2000H	2000	90-110	1955	1710	2920	3200	76	10-M56	9580
