CLGR® Cylindrical Rubber Fender

Name: CLGR® Cylindrical Rubber Fender
Brand: CLGR®

CLGR® Cylindrical Rubber Fender, also known as Cylindrical Fender.

A cylindrical rubber fender is a solid, hollow marine buffer with a circular cross-section, absorbing berthing energy via compressing high-resilience rubber. Often fitted on quay walls, piers, and small-to-medium ships, it shields dock structures and hulls from impact damage.

It relies on rubber compression, not air, to absorb impacts, making it perfect for fixed docks, barges, and tidal areas due to its simplicity, durability, and low maintenance.

Application: Bulk cargo berths, general cargo quays, fishing and workboat berths, pontoons, floating structures, tug havens.

To Get A Quote >

Overview of Cylindrical Rubber Fender

Brand	CLGR®
Type	Cylindrical Type
Materials	Natural Rubber
Outer Diameter	150mm to 2000mm
Inner Diameter	75mm to 1000 mm
Color	Black or custom as required
Applications	Bulk cargo berths, General cargo quays, Fishing and workboat berths, Pontoons and floating structures,Tug havens.

Specification of Cylindrical Rubber Fender

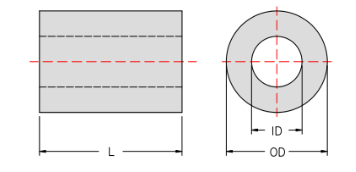

Drawing of Cylindrical Rubber Fender

Part No.	OD×ID (mm)	Standard Reaction Force		High Reaction Force		Weight (kg)
Part No.	OD×ID (mm)	R (kN)	E (kNm)	R (kN)	E (kNm)	Weight (kg)
CRCRF01	150×75	44	1.5	73	2.3	17
CRCRF02	200×100	60	2.6	95	4.2	31
CRCRF03	250×125	75	4	120	6.5	48
CRCRF04	300×150	89	6	143	9	69
CRCRF05	350×175	104	8	167	13	94
CRCRF06	400×200	119	10	191	17	123
CRCRF07	500×250	148	16	239	26	191
CRCRF08	600×300	179	24	286	37	275
CRCRF09	700×350	208	31	334	50	376
CRCRF10	800×400	237	41	383	66	490
CRCRF11	900×450	268	52	430	84	620
CRCRF12	1000×500	297	64	479	103	766
CRCRF13	1100×550	331	77	528	129	926
CRCRF14	1200×600	363	95	574	152	1102
CRCRF15	1300×650	392	108	623	179	1294
CRCRF16	1400×700	422	128	670	208	1501
CRCRF17	1500×750	451	147	718	238	1723
CRCRF18	1600×800	481	176	776	282	1960
CRCRF19	1700×850	511	206	824	338	2213
CRCRF20	1800×900	541	247	872	406	2481
CRCRF21	1900×950	570	288	920	487	2765
CRCRF22	2000×1000	653	321	1054	584	3063

Note：

Rated Deflection: 50%

Performance tolerance: ± 10%

R: Reaction Force, E: Energy Absorption

The performance mentioned above is the performance for per meter length fender. Dynamic performance in different length shall be calculated by times the multiple of 1000mm length.
