CLGR® Super Arch Rubber Fenders V Type

CLGR® Super Arch Rubber Fenders V Type, also known as Super Arch Fender, and V type fenders.

Super Arch Rubber Fender V Type features a robust one-piece construction that makes installation remarkably simple and time-efficient. This streamlined design reduces the need for complex bolting and setup, allowing docks to be equipped with heavy-duty protection quickly.

This V-shaped fender offers excellent compression capacity and noticeably higher energy absorption compared to traditional arch fenders. It is sturdy, reliable, and built to last. The simple yet durable structure ensures stable performance even under repeated heavy impact conditions.

It can be fitted with a UHMW-PE front plate or a steel plate to further boost energy absorption and reduce long-term maintenance costs. The PE panel significantly lowers the friction coefficient during berthing, helping protect both the ship's hull and the dock surface from scratching or abrasion.

Whether applied at RoRo berths, general cargo terminals, or large marinas, this V-type rubber fender provides a consistent and reliable protection solution. It performs well with both large vessels and smaller workboats, delivering peace of mind across a wide range of port operations.

Standard sizes are available, and we also offer full customization to meet your specific project requirements.

To Get A Quote >

CLGR® Marine Arch Fenders Wholesale Suppliers

Overview of CLGR® Super Arch Rubber Fenders V Type

Material	Rubber
Size & Color	Customized According To Customers' Requirements
Processing	Molded Pressing

Specifications of CLGR® Super Arch Rubber Fenders V Type

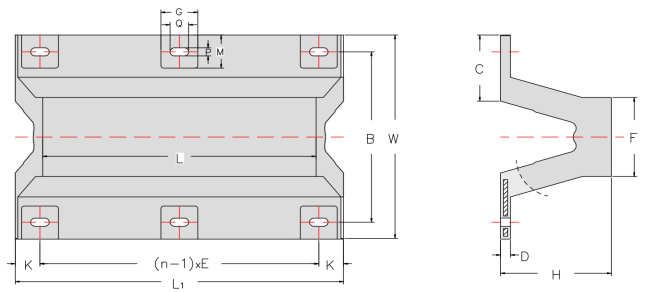

Drawing of CLGR® Super Arch Rubber Fenders V Type

Part No.	H	W	B	F	C	D	P	Q	M	G
Part No.	mm
CSARRFV150H	150	300	240	98	96	22	25	50	55	95
CSARRFV200H	200	400	320	150	128	24	29	58	75	105
CSARRFV250H	250	500	410	187	160	30	32	64	90	125
CSARRFV300H	300	600	490	225	195	33	35	70	105	140
CSARRFV400H	400	800	670	300	260	40	41	82	120	165
CSARRFV500H	500	1000	840	375	325	45	47	94	140	180
CSARRFV600H	600	1200	1010	450	390	54	50	100	160	195
CSARRFV800H	800	1600	1340	600	520	72	68	136	260	270
CSARRFV1000H	1000	1850	1550	650	580	52	54	108	300	290

Other sizes as follows：

Size	150H						200H
L	1000	1500	2000	2500	3000	3500	1000	1500	2000	2500	3000	3500
Li	1075	1575	2075	2575	3075	3075	1100	1600	2100	2600	3100	3600
n	2	3	4	4	5	6	2	3	4	4	5	6
E	855	675	620	785	715	671	860	680	620	785	715	672
K	110	112.5	107.5	110	107.5	110	120	120	120	122.5	120	120
Weight (kg)	36	57	74	91	109	128	61	92	124	153	181	210
Size	250H						300H
L	1000	1500	2000	2500	3000	3500	1000	1500	2000	2500	3000	3500
Li	1125	1625	2125	2625	3125	3625	1150	1650	2150	2650	3150	3650
n	2	3	4	4	5	6	2	3	4	4	5	6
E	865	680	620	790	715	673	870	685	625	790	715	674
K	130	132.5	132.5	127.5	132.5	130	140	140	137.5	140	145	140
Weight (kg)	86	130	171	225	269	310	126	178	234	308	370	432
Size	400H						500H
L	1000	1500	2000	2500	3000	3500	1000	1500	2000	2500	3000	3500
L1	1200	1700	2200	2700	3200	3700	1250	1750	2250	2750	3250	3750
n	2	3	4	4	5	6	2	3	4	4	5	6
E	900	700	635	800	725	680	930	715	645	810	730	686
K	150	150	147.5	150	150	150	160	160	157.5	160	165	160
Weight (kg)	206	302	390	510	636	738	326	460	601	806	955	1110
Size	600H						800H
L	1000	1500	2000	2500	300C	3500	1000	1500	2000	250C	3000	3500
L1	1300	1800	2300	2800	330C	3800	1400	1900	2400	290C	3400	3900
n	2	3	4	4	5	5	2	3	4	4	5	5
C	960	730	655	820	740	692	1040	770	680	845	790	885
K	170	170	167.5	170	170	170	180	180	180	182.5	130	180
Weight (kg)	481	680	883	1102	1342	1580	875	1227	1585	2042	2410	2800
Size	1000H
L	1000	1500	2000	2500	3000
L1	1500	2000	2500	3000	3500
n	2	3	4	4	5
E	1100	800	700	860	775
K	200	200	200	210	200
Weight (kg)	1402	1910	2440	2950	3480
