CLGR® Super Cell Rubber Fender

Name: CLGR® Super Cell Rubber Fender
Brand: CLGR®

CLGR® Super Cell Rubber Fender, also known as Cell Fender, SC Type Rubber Fender.

CLGR® Super Cell Rubber Fender delivers ultra-high energy absorption performance. It offers excellent multi-directional angular capabilities, meaning it handles impacts from different angles with ease. It provides high energy absorption while keeping the reaction force low.

Compared to general cell fenders, our Super Cell model features a 5% higher design compression. This increase allows for about 15% more energy absorption, all while maintaining the same reaction force.

This fender minimizes impact damage effectively. It ensures safe berthing for vessels and protects the hull from heavy impacts and significantly extends the service life of the marina facility.

We offer standardized products and full customization. We can adjust the fender design to meet your specific project requirements.

To Get A Quote >

Overview of CLGR® Super Cell Rubber Fender

Brand	CLGR®
Material	Rubber
Size & Color	Customized According To Customers' Requirements
Processing	Molded Pressing

Specifications of CLGR® Super Cell Rubber Fender

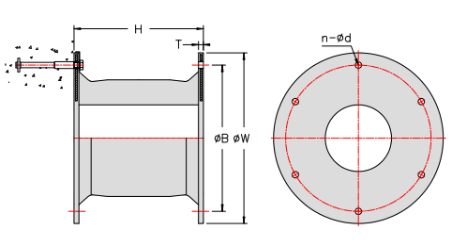

Drawing of CLGR® Super Cell Rubber Fender

Part No.	H (mm)	T (mm)	ΦB (mm)	ΦW (mm)	Φd (mm)	Anchors	Weight (kg)
CSCRF500H	500	25	550	650	32	4-M24	112
CSCRF630H	630	30	700	840	39	4-M30	231
CSCRF800H	800	30	900	1050	40	6-M33	410
CSCRF1000H	1000	35	1100	1300	47	6-M39	822
CSCRF1150H	1150	40	1300	1500	50	6-M42	1220
CSCRF1250H	1250	45	1450	1650	53	6-M45	1488
CSCRF1450H	1450	47	1650	1850	61	6-M52	2330
CSCRF1252H	1600	50	1800	2000	61	8-M52	3022
CSCRF1600H	1700	55	1900	2100	66	8-M56	3730
CSCRF2000H	2000	55	2000	2200	74	8-M64	5258
CSCRF2250H	2250	60	2300	2550	74	10-M64	7452
CSCRF2500H	2500	70	2700	2950	74	10-M64	10755
CSCRF3000H	3000	85	3150	3350	90	12-M76	18582

Dynamic Performance

The following table shows the performance of the Super Cell Rubber Fender at different compression deflections, including reaction force (KN) and energy absorption capacity (KN-M).

Specification			500H	630H	800H	1000H	1150H	1250H	1450H	1600H	1700H	2000H	2250H	2500H	3000H
Performance			500H	630H	800H	1000H	1150H	1250H	1450H	1600H	1700H	2000H	2250H	2500H	3000H
RE	52.5%	R	182	290	464	737	975	1153	1551	1885	2131	2941	4145	5118
	52.5%	E	40	80	163	324	492	632	987	1326	1591	2591	4095	5618
	55.0%	R	210	309	493	784	1037	1225	1649	2007	2266	3136	4406	5441
	55.0%	E	43	85	173	343	521	669	1045	1405	1685	2743	4337	5949
RS	52.5%	R	162	258	412	655	865	1022	1376	1676	1892	2619	3679	4543
	52.5%	E	36	72	145	287	437	561	876	1177	1413	2300	3628	4987
	55.0%	R	187	274	437	696	920	1087	1464	1781	2012	2783	3911	4829
	55.0%	E	38	76	153	304	463	594	928	1247	1495	2435	3848	5280
RH	52.5%	R	140	224	355	567	750	886	1193	1453	1640	2270	3188	3937	5687
	52.5%	E	30	62	125	249	379	486	760	1020	1224	1994	3150	4322	7456
	55.0%	R	160	237	378	603	798	942	1269	1544	1743	2413	3390	4182	6619
	55.0%	E	32	67	132	264	401	516	804	1080	1300	2111	3336	4576	7521
RO	52.5%	R	108	172	275	436	578	682	918	1120	1262	1746	2454	3028	4314
	52.5%	E	23	47	96	191	295	375	585	786	945	1535	2425	3330	5676
	55.0%	R	125	182	292	463	614	725	976	1189	1342	1856	2607	3220	5099
	55.0%	E	25	50	102	203	309	396	619	832	997	1624	2566	3520	6028
RL	52.5%	R	86	138	211	349	462	546	735	894	1009	1398	2085	2574	3677
	52.5%	E	18	38	75	153	233	299	468	628	753	1227	2060	2826	4897
	55.0%	R	99	147	225	372	491	581	781	950	1073	1485	2216	2737	4217
	55.0%	E	19	40	78	163	247	316	495	665	798	1299	2180	2992	5193

PIANC factors
Angular compression Factor		Temperature Factor		Velocity Factor
Angle(dgree)	AF	Temperature(℃)	TF	Time（second）	VF

0	1	50	0.882	1	1.005
3	0.977	40	0.926	2	1.002

8	0.909	23	1	4	1.001

15	0.81	0	1.099	6	1

		-20	1.186	≥10	1

		-30	1.23
