CLGR® Rubber Fenders Ladder Type

Name: CLGR® Rubber Fenders Ladder Type
Brand: CLGR®

CLGR® Rubber Fenders Ladder Type, also known as Dock ladders, Ladder Rubber Fender, Marine Rubber Fenders, Boat Rubber Fender.

Rubber Fenders Ladder Type is a smart design developed from standard arch rubber fenders. It keeps the main function of a reliable dock fender while adding a built-in climbing ladder on the front face. This design saves valuable space along the pier.

These fenders provide the same shock absorption and protection as traditional arch fenders. They effectively shield both the dock wall and the vessel's hull from impact damage during berthing. At the same time, the integrated step structure gives crew members a safe and sturdy ladder for boarding or disembarking.

The ladder feature also adds great convenience for routine maintenance and emergency access. It saves you the trouble of installing separate ladders along the dock, helping keep the pier area clean, organized, and safer for workers.

Installation is quick and simple. The Rubber Fenders Ladder Type uses the same mounting footprint and bolt pattern as standard arch fenders. You can easily upgrade your existing fenders without any modifications to the concrete dock wall.

We offer standard sizes as well as customized designs to match your specific pier height and step spacing needs. If you need a smart solution that saves space and adds convenience, feel free to contact us for more details.

To Get A Quote >

Overview of CLGR® Rubber Fenders Ladder Type

Brand	CLGR®
Material	Rubber
Size & Color	Customized According To Customers' Requirements
Processing	Molded Pressing
Application	Docks, Piers, Ship Berthing & Crew Access

Specification of CLGR® Rubber Fenders Ladder Type

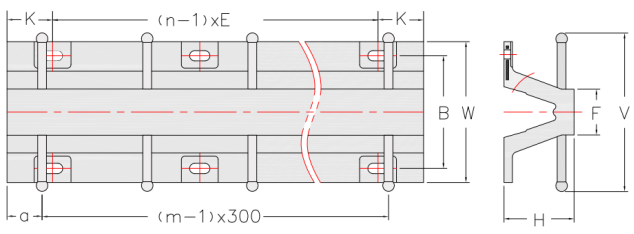

Drawing of CLGR® Rubber Fenders Ladder Type

Part No.	H	B	W	F	V	a
Part No.	mm
CRFL200H	200	320	400	150	450	150~200
CRFL250H	250	410	500	187	484	150~200
CRFL300H	300	490	600	225	545	150~200
CRFL400H	400	670	800	300	620	150~200
CRFL500H	500	840	1000	375	695	150~200

Other details of sizes:

Size	200H
L	1500	1800	2100	2200	2400	2700	3000	3300	3600
a	150	150	150	200	150	150	150	150	150
m	5	6	7	7	8	9	10	11	12
K	120	120	120	120	120	120	120	120	120
n	3	3	4	4	4	5	5	6	6
E	630	780	620	653	720	615	690	612	672
Weight (kg)	90	100	120	125	145	161	180	198	216
Size	250H
L	1500	1800	2100	2200	2400	2700	3000	3300	3600
a	150	150	150	200	150	150	150	150	150
m	5	6	7	7	8	9	10	11	12
K	130	130	130	130	130	130	130	130	130
n	3	3	4	4	4	5	5	6	6
E	620	770	613	647	713	610	685	608	668
Weight (kg)	130	160	185	190	210	240	260	290	320
Size	300H
L	1500	1800	2100	2200	2400	2700	3000	3300	3600
a	150	150	150	200	150	150	150	150	150
m	5	6	7	7	8	9	10	11	12
K	140	140	140	140	140	140	140	140	140
n	3	3	4	4	4	5	5	6	6
E	610	760	606	640	706	605	680	604	664
Weight (kg)	180	215	260	285	310	350	388	426	465
Size	400H
L	1500	1800	2100	2200	2400	2700	3000	3300	3600
a	150	150	150	200	150	150	150	150	150
m	5	6	7	7	8	9	10	11	12
K	150	150	150	150	150	150	150	150	150
n	3	3	4	4	4	5	5	6	6
E	600	750	600	633	700	600	675	600	660
Weight (kg)	300	360	420	440	480	540	600	660	720
