CLGR® Element Rubber Fender LE Type

Name: CLGR® Element Rubber Fender LE Type
Brand: CLGR®

CLGR® Element Rubber Fender LE Type, also known as Leg Fender, Marine Rubber Fenders, features fully molded rubber legs with embedded mounting plates.

Built upon the V Fender design, its separate-leg construction offers exceptional layout flexibility—ideal for installations behind steel panels or in spaces with limited mounting room.

This modular system allows unlimited combinations of length and direction to suit diverse vessel and dock configurations. The front face can be optionally fitted with steel panels or UHMW-PE pads for added protection and reduced hull wear.

Available in heights from 250 to 1,600 mm and standard lengths from 500 to 2,000 mm. Custom configurations are also available to meet your specific project requirements.

To Get A Quote >

Overview of CLGR® Element Rubber Fender LE Type

Brand	CLGR®
Type	Element fender LE Type
Material	Natural Rubber
Size & Color	Customized According To Customers' Requirements
Processing	Molded Pressing

Specifications of CLGR® Element Rubber Fender LE Type

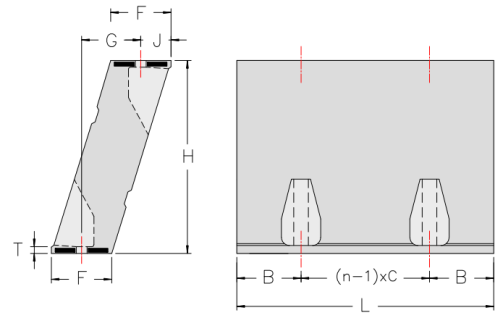

Drawing of CLGR® Element Rubber Fender LE Type

Part No.	H	F	J	G	T	L	B	C	n	Bolt	Weight
Part No.	mm										kg
CREFLE300H	300	94	47	94	15	600‑2500	150	500	2‑5	M20	39
CREFLE400H	400	125	63	124	17	750‑2500	125‑250	500	2‑5	M24	70
CREFLE500H	500	158	87	142	20	750‑2500	125‑250	500	2‑5	M30	110
CREFLE550H	550	172	87	170	20	750‑2000	125‑250	500	2‑4	M30	135
CREFLE600H	600	188	87	199	20	750‑2000	125‑250	500	2‑4	M30	156
CREFLE700H	700	225	113	217	26	800‑2000	125‑250	500	2‑4	M30	210
CREFLE750H	750	235	118	230	26	800‑2000	125‑250	500	2‑4	M36	243
CREFLE800H	800	250	129	240	26	800‑2000	125‑250	500	2‑4	M36	285
CREFLE1000H	1000	322	162	310	31	800‑2000	150‑350	500	2‑4	M42	430
CREFLE1250H	1250	401	202	388	36	800‑2000	150‑375	500	2‑4	M48	655
CREFLE1450H	1450	454	228	454	41	900‑2000	200‑350	500	2‑4	M48	835
CREFLE1600H	1600	500	257	480	50	1000‑2000	250‑350	500	2‑4	M56	1110
