CLGR® D Fenders - The China Manufacturer Supplier

Name: CLGR® D Fenders - The China Manufacturer Supplier
Brand: CLGR®

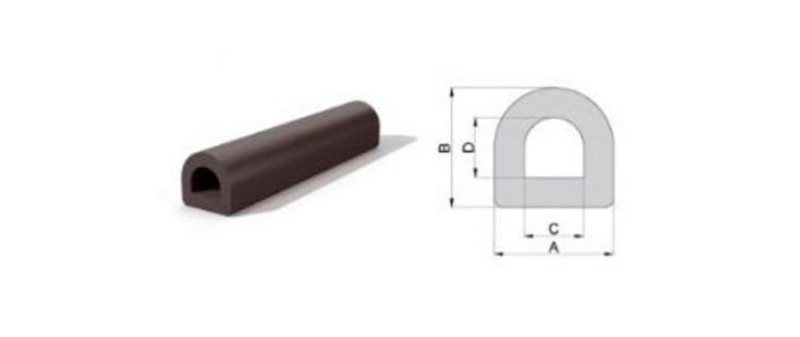

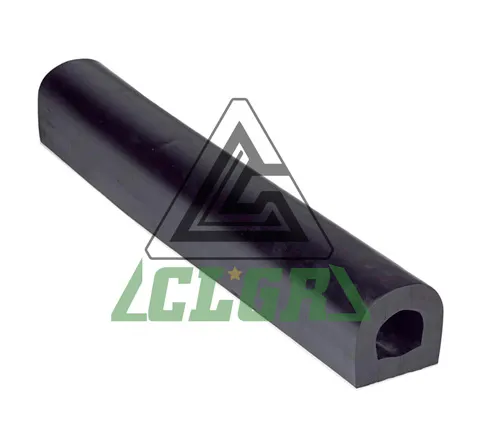

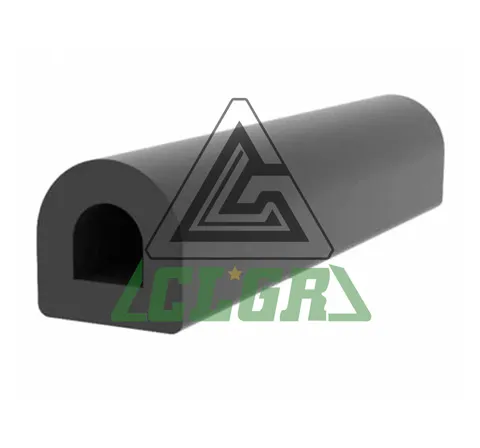

CLGR® D Fenders, also known as dock fender, and marine rubber fender.

For berthing operations, impact resistance is important. Our Rubber D Fenders deliver maximum energy absorption with minimal reaction force, keeping vessels, jetties, and wharfs protected under heavy tidal conditions. They offer the ideal balance of durability and cost-efficiency for daily marine use.

We supply D fenders across all sizes. Large series are built for ships and port infrastructures, while compact series handle light-duty tasks like loading dock bumpers, wall guards, and equipment buffers.

Made from UV and abrasion-resistant rubber, our fenders ensure long service life with little maintenance. Contact us today for the right size and spec sheet for your project.

To Get A Quote >

Overview of CLGR® D Fenders-The China Manufacturer Supplier

Brand	CLGR®
Material	Rubber
Size & Color	Customized According To Customers' Requirements
Processing	Molded Pressing

Specifications of CLGR® D Fenders-The China Manufacturer Supplier

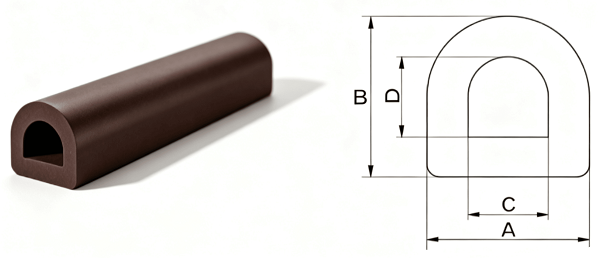

Drawing of CLGR® D Fenders-The China Manufacturer Supplier

Item No.	A (mm)	B (mm)	C (mm)	D (mm)
CR-DF-D-01	42	27	27	13
CR-DF-D-02	50	60	20	30
CR-DF-D-03	80	70	50	30
CR-DF-D-04	100	95	60	48
CR-DF-D-05	125	125	60	60
CR-DF-D-06	150	150	75	75
CR-DF-D-07	200	150	100	80
CR-DF-D-08	200	200	100	100
CR-DF-D-09	250	200	125	100
CR-DF-D-10	250	250	125	125
CR-DF-D-11	300	300	150	150
CR-DF-D-12	350	350	175	175
CR-DF-D-13	380	380	190	190
CR-DF-D-14	400	400	200	200
CR-DF-D-15	500	500	250	250

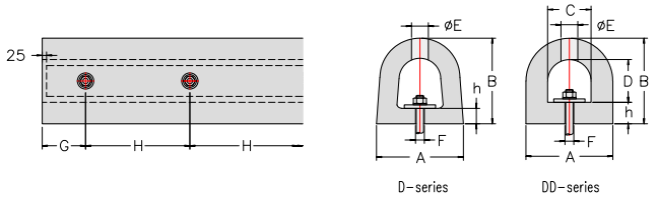

Drawing of CLGR® D Fenders-The China Manufacturer Supplier

Part No.	A	B	C	D	h	ΦE	ΦF	G	H	Flat bar	Bolt size	Weight
Part No.	mm											kg
CRDFDD100	100	100	50	50	25	40	20	100-150	200-300	40×8	M16	8.7
CRDFDD150	150	150	75	75	37.5	50	25	100-150	200-400	60×10	M20	19.6
CRDFDD200	200	200	100	115*	35*	60	30	100-150	300-500	80×14	M24	32.9
CRDFDD200	200	200	100	100	50	60	30	100-150	300-500	80×14	M24	34.8
CRDFDD250	250	250	125	125	62.5	65	33	100-200	300-500	90×14	M27	54.4
CRDFDD300	300	300	150	185*	40*	65	35	100-200	300-600	110×16	M30	72
CRDFDD300	300	300	150	150	75	65	35	100-200	300-600	110×16	M30	78
CRDFD360	360	300	-	-	40	65	35	100-200	300-600	120×16	M30	85
CRDFDD350	350	350	175	175	87.5	80	38	100-250	300-600	130×16	M33	107
CRDFDD400	400	400	200	245*	55*	80	40	100-250	300-600	135×18	M36	128
CRDFDD400	400	400	200	200	100	80	40	100-250	300-600	150×16	M36	140
CRDFD500	500	500	-	-	90	95	45	100-250	400-600	160×20	M42	196
CRDFDD500	500	500	250	250	250	95	45	100-250	400-600	180×20	M42	218

Size	Reaction Force(kN)	Energy Absorption (kNm)
DD100	77	1.4
DD150	115	3.2
DD200	150	5.7
DD250	191	8.8
DD300	230	12.9
D300×360	324	14
DD350	268	17.6
DD400	306	23
D500	418	31
DD500	383	35.9

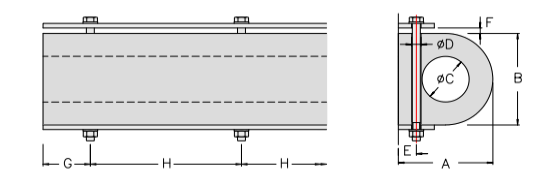

Drawing of CLGR® D Fenders-The China Manufacturer

Part No.	A	B	ΦC	ΦD	E	F	G	H	Flat bar	Bolt size	Weight
Part No.	mm										kg
CRDFDC100	100	100	30	20	25	10	100-150	200-300	50×6	M16	10.7
CRDFDC150	150	150	65	27	30	12	100-150	200-400	60×8	M20	21.8
CRDFDC200	200	200	75	30	35	15	100-150	300-500	80×10	M24	40.7
CRDFDC250	250	250	100	33	45	20	100-200	300-500	100×12	M27	62.3
CRDFDC300	300	300	125	36	55	25	100-200	300-600	110×12	M30	89
CRDFDC350	350	350	150	40	65	25	100-250	300-600	120×12	M30	119
CRDFDC400	400	400	200	45	75	30	100-250	300-600	130×16	M36	145
CRDFDC500	500	500	250	50	95	30	100-250	400-600	130×16	M42	226

Size	Reaction Force(kN)	Energy Absorption (kNm)
DC100	160	1.9
DC150	240	4.1
DC200	320	7.2
DC250	395	11.5
DC300	480	15.8
DC350	556	21.3
DC400	635	29
DC500	792	45
