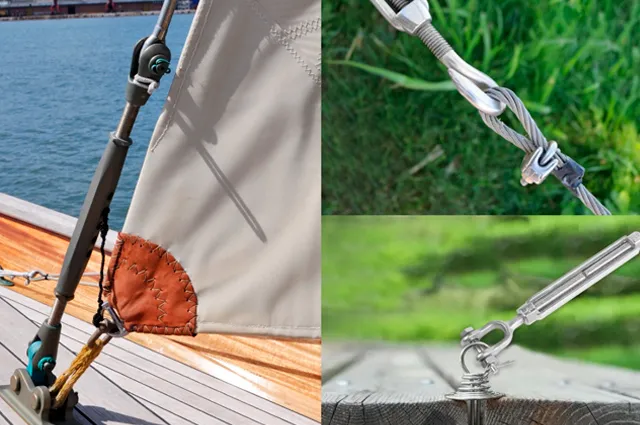

Proper installation is key for safe, effective use of all rigging equipment—turnbuckles included. Installing a turnbuckle is fairly simple, and here's how to do it:

Unscrew the end fittings from the body until they're fully extended to the maximum take-up length.

Attach the end fittings to your chosen securement points:

For eye end fittings: Loop them through the securement point (like a shackle or quick link).

For hook end fittings: Hook them around the temporary securement point (such as a thimble or shackle).

For jaw end fittings: Unscrew the bolt from the jaw, place the securement point between the clevis ears (like a thimble or eye bolt), insert the bolt, and screw it tight.

Rotate the turnbuckle to draw the end fittings closer until the rope or cable has the tension you need.

If nuts are included, tighten them down against the body.

Body

The body is the central metal frame of the turnbuckle, linking its two threaded end fittings. Its key role is tension adjustment: rotating the body moves the end fittings—either extending them apart or retracting them closer together—to fine-tune tension levels.

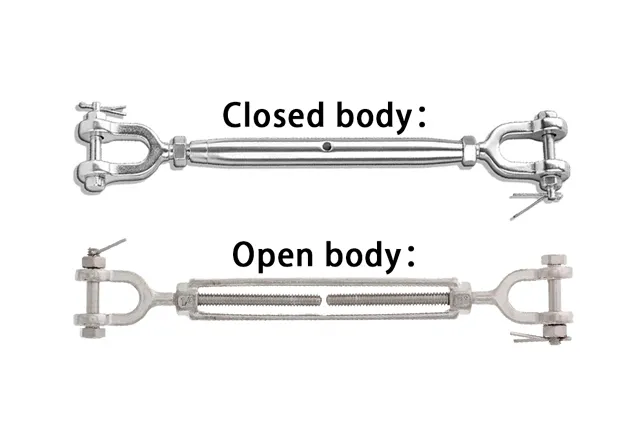

Turnbuckle bodies come in two main styles:

Open body: The more traditional design, where the threads of the end fittings are visible through the frame.

Closed body: Also called a pipe body, it encloses the threads in a solid frame. This creates a slimmer profile, making it ideal for tight, space-constrained setups.

Nut

Also known as a jam nut, this component screws onto the threads of the turnbuckle's end fittings. Once positioned, it's tightened firmly against the body to lock the adjustment in place—preventing the turnbuckle from loosening or unthreading due to vibration, movement, or load stress.
