CLGR® 3 Ton Polyester Duplex Yellow Flat Webbing Lifting Slings

Name: CLGR® 3 Ton Polyester Duplex Yellow Flat Webbing Lifting Slings
Brand: CLGR®

The Yellow Flat Webbing Slings, also known as Duplex Yellow Flat Webbing Lifting Slings, Lifting Strops, Flat Polyester Webbing Slings, or Duplex Webbing Lifting Slings and Synthetic Web Sling.

Crafted from dual layers of color-coded polyester webbing, these lifting slings feature folded and reinforced eye loops at both ends, proving essential in construction sites, engineering projects, and warehouse operations.

Every sling comes accompanied by a compliance certificate. This flat-woven lifting tool is made from robust yet flexible and lightweight polyester material, offering a lighter alternative to conventional chain slings and reducing the risk of harm to the items being lifted. Its structure facilitates straightforward checks for signs of wear or damage, and its ability to absorb shocks along with excellent resistance to abrasion guarantee long-lasting performance and secure operation.

To Get A Quote >

CLGR® 3 Ton Polyester Duplex Yellow Flat Webbing Lifting Slings Wholesale Suppliers

Overview of CLGR® 3 Ton Polyester Duplex Yellow Flat Webbing Lifting Slings

Brand	CLGR®
Material	Polyester construction
WLL	3ton / 3000kg Working Load Limit (WLL)
Safety factor	5:1, 6:1, 7:1, 8:1
Width	25mm/30mm/50mm
Effective working length	1m to 20m
Certificate	Complied with GS CE safety required; Each sling is proof tested, individually serial numbered, tagged and complete with Test Certificate.

Specifications of CLGR® 3 Ton Polyester Duplex Yellow Flat Webbing Lifting Slings

Part No.	W.L.L.	Length	Weight
Part No.	TON	m	Kg
CRFWS3T01	3	1	0.7
CRFWS3T02	3	2	1.25
CRFWS3T03	3	3	1.75
CRFWS3T04	3	4	2.3

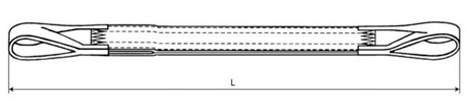

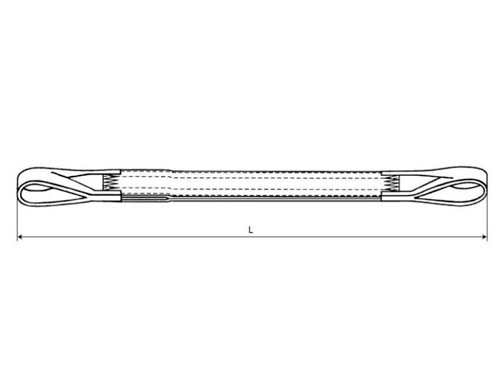

Drawing of CLGR® 3 Ton Polyester Duplex Yellow Flat Webbing Lifting Slings

All slings are color-coded to indicate WLL (Working Load Limit).

Part. No.	Colour	WLL (Kgs)	Width	Working Load Limit in Kgs with One Webbing Sling					Working Load Limit in Kgs with Two Webbing Slings


				Straight Lift	Choked Lift	Lifting at an Angle β 0°-7°	Lifting at an Angle β 7°-45°	Lifting at an Angle β 45°-60°	Straight Lift up to 45°	Choked Lift up to 45°	Straight Lift up to 45°-60°	Choked Lift up to 45°-60°
CRFWL-1	Violet	1000	1 inch	1000	800	2000	1400	1000	1400	1120	1000	800
CRFWL-2	Green	2000	2 inch	2000	1600	4000	2800	2000	2800	2240	2000	1600
CRFWL-3	Yellow	3000	3 inch	3000	2400	6000	4200	3000	4200	3360	3000	2400
CRFWL-4	Grey	4000	4 inch	4000	3200	8000	5600	4000	5600	4480	4000	3200
CRFWL-5	Red	5000	5 inch	5000	4000	10000	7000	5000	7000	5600	5000	4000
CRFWL-6	Brown	6000	6 inch	6000	4800	12000	8400	6000	8400	6720	6000	4800
CRFWL-8	Blue	8000	8 inch	8000	6400	16000	11200	8000	11200	8960	8000	6400
CRFWL-10	Orange	10000	10 inch	10000	8000	20000	14000	10000	14000	11200	10000	8000
