CLGR® Wire Tubular Thimble Stainless Steel SSTTG5S Type, also known as Tube Thimble without Gusset, and some customers called it stainless steel pipe thimbles.
Tubular Thimble is shaped like a tube, with smooth inner walls and an open end.
It is easy to install, thread the wire rope through the wire rope tube thimble, then place the clamp over the intersection of the wire rope tube thimble and the and tighten the screws of the wire rope clamp.
Stainless Steel Wire Rope Tubu Thimble Without Gusset is manufactured from grade 304 or 316 stainless steel. It provides a durable and corrosion-resistant surface for the wire rope to pass through, preventing damage and prolonging the lifespan of the rope.
The thimble helps maintain the shape and integrity of the looped end of the wire rope, preventing it from becoming distorted or flattened under load.
Special specifications can also be produced according to drawings and samples.
| Brand | CLGR® |
| Size | G512, G515, G521, G527, G532 |
| Size wire | 12mm, 15mm, 21mm, 27mm, 32mm |
| Material | Stainless Steel Grade 304 or 316 |
| Surface Treatment | Highly Polished |
| Processing | Machining, Stamping, Polishing |

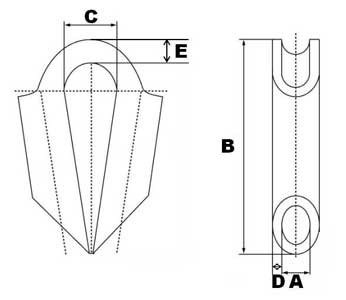

Part No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | Weight (KG) |
CRSSTTG512S | 12 | 90 | 21 | 2.4 | 10 | 0.15 |
CRSSTTG515S | 15 | 100 | 23 | 2.8 | 12 | 0.21 |
CRSSTTG521S | 21 | 116 | 27 | 2.8 | 14 | 0.33 |
CRSSTTG527S | 27 | 145 | 36 | 3.2 | 18 | 0.60 |
CRSSTTG532S | 32 | 182 | 46 | 3.3 | 21 | - |
