CLGR® Heavy Duty Stainless Steel Wire Rope Thimble US Fed. Spec.

Name: CLGR® Heavy Duty Stainless Steel Wire Rope Thimble US Fed. Spec.
Brand: CLGR®

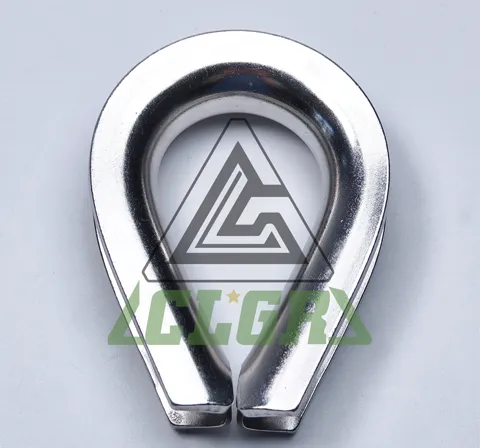

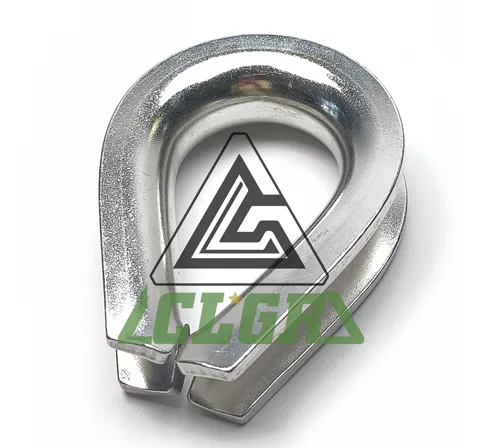

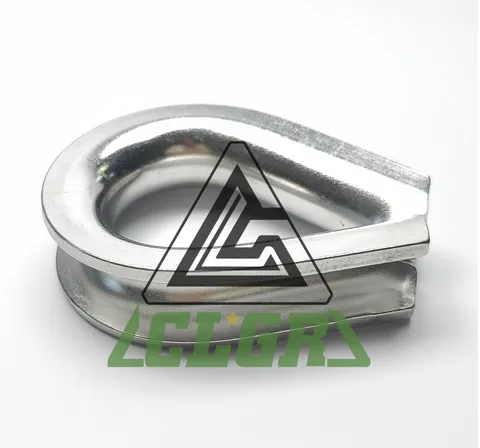

CLGR® Stainless Steel Wire Rope Thimble G-414, also known as extra heavy wire rope thimble, is a heavy-duty cable thimble.

It can supply extra strength for forming reinforced eyes or loops to protect wire ropes from pinching and abrading on the inside of the loop.

It is manufactured from 316 marine grade stainless steel for added resistance to high moisture or corrosive environments making it a reliable choice for marine, industrial, and architectural applications.

These thimbles are best suited for static or heavy-duty setups where loop durability and long-term performance are critical.

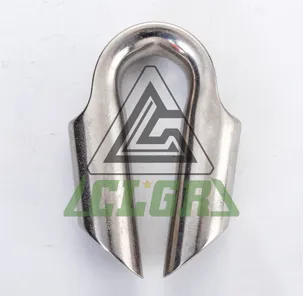

We also have Light Duty Tubular Thimble for your option.

To Get A Quote >

CLGR® Heavy Duty Stainless Steel Wire Rope Thimble US Fed. Spec.

 

Overview of CLGR® Heavy Duty Stainless Steel Wire Rope Thimble US Fed. Spec.

Brand	CLGR®
Standard	Meets or exceeds ASTM A148 & ASME B30.26 requirements.
Type	G-414
Size wire	1/8", 3/16", 1/4", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", 23/32", 3/4", 7/8", 1", 9/8"-5/4", 5/4"-11/8", 11/8"-3/2"
Material	Stainless Steel Grade 304 or 316
Surface Treatment	Highly Polishing
Processing	Stamping, Polishing

Specifications of CLGR® Heavy Duty Stainless Steel Wire Rope Thimble US Fed. Spec.

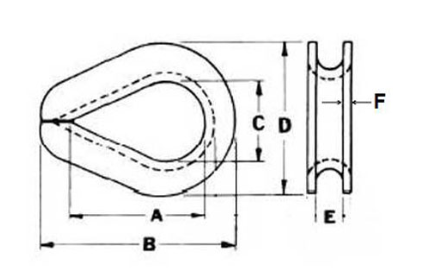

Part No.	Size (in)	Size (mm)	E (mm)	C (mm)	D (mm)	A (mm)	B (mm)	F	Weight (g)
CRSSG4141/8	1/8"	3	6.2	15	23	29	38.6	1.2	8.9
CRSSG4143/16	3/16"	4	7.4	18	26.5	33	42.6	1.2	11.8
CRSSG4141/4	1/4"	6	9	22.2	36	42.5	56	1.5	28
CRSSG4145/16	5/16"	8	11	27	44.8	48	63.6	2	54
CRSSG4143/8	3/8"	10	13	28.5	51.6	50	72	3	118
CRSSG4147/16	7/16"	11	14	32	54.5	57	78.7	3	140
CRSSG4141/2	1/2"	12	16	38	65	70.5	95	4	242
CRSSG4149/16	9/16"	14	18	42	70	76	104	4	274
CRSSG4145/8	5/8"	16	21	47	77	80	106	4	310
CRSSG41423/32	23/32"	18	21.2	48.5	88	86.3	115	5	507
CRSSG4143/4	3/4"	20	23.6	50	94	86	125	5	607
CRSSG4147/8	7/8"	22	28	58	104	95.5	137	6	923
CRSSG4141	1"	25	-	63.5	-	-	-	6	1221
CRSSG4149/8 - 5/4	9/8" - 5/4	28 - 31	39	76	142	116	280	6	1714
CRSSG4145/4 - 11/8	5/4" - 11/8	31 - 35	-	89	-	165	-	10	4005
CRSSG4141/1 - 8/3/2	11/8" - 3/2	35 - 38	-	89	-	-	-	10	4005
