CLGR® Stainless Steel Wire Rope Thimble Italy Type

Name: CLGR® Stainless Steel Wire Rope Thimble Italy Type
Brand: CLGR®

CLGR® Stainless Steel Wire Rope Thimble Italy Type, also known as Stainless Steel Cable Thimble.

This wire rope thimbles conform to italian type, which are designed to protect wire rope loops from deformation and wear at the point of connection, helping the rope maintain its shape under load and extending its service life.

Available in grade 304 or 316 stainless steel for excellent corrosion resistance, this thimble is a reliable choice for marine, industrial, and architectural applications.

Custom sizes and special specifications can be produced according to drawings or sample requirements.

All CLGR® wire rope thimbles meet international industry certification standards.

To Get A Quote >

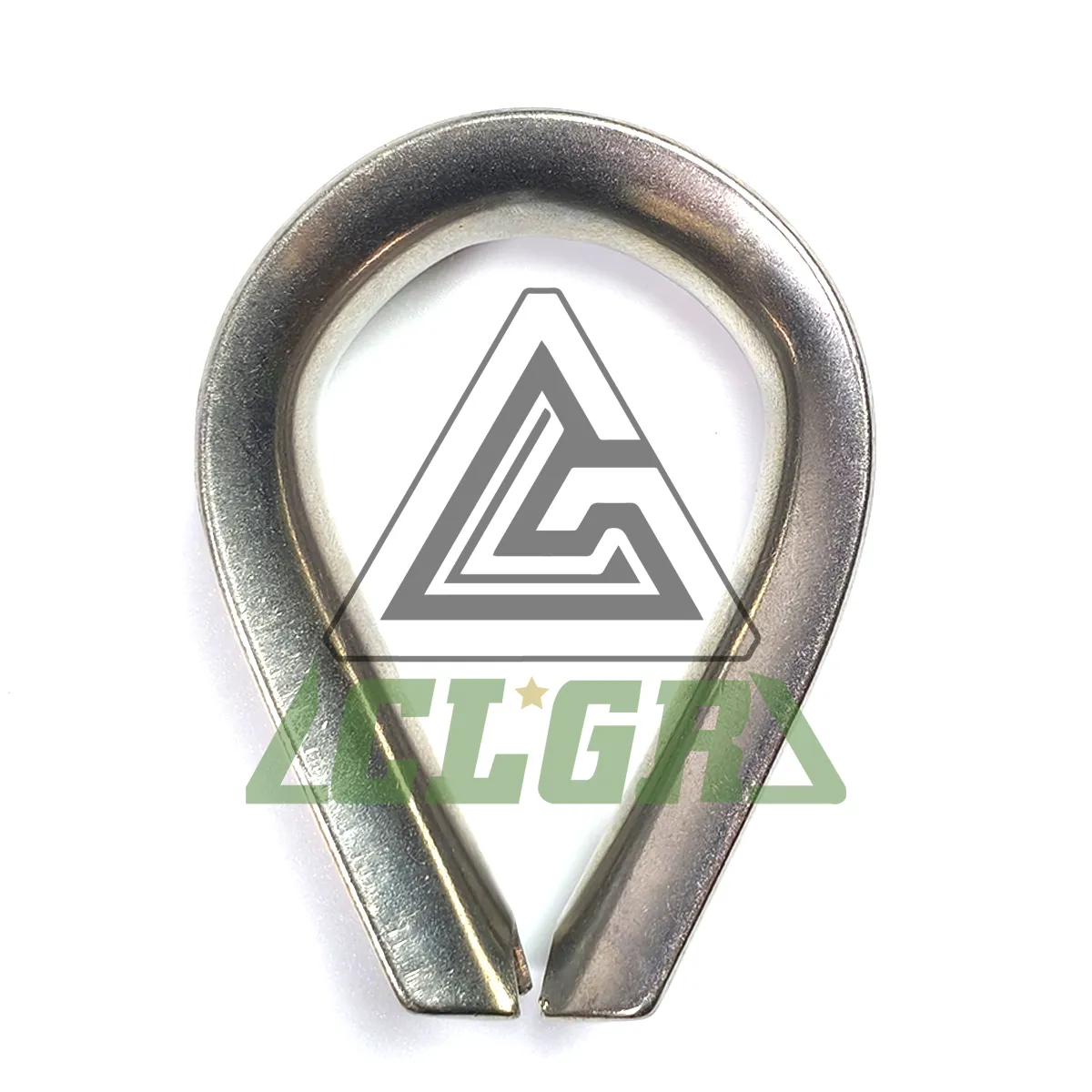

clgr® stainless steel wire rope thimble italy type

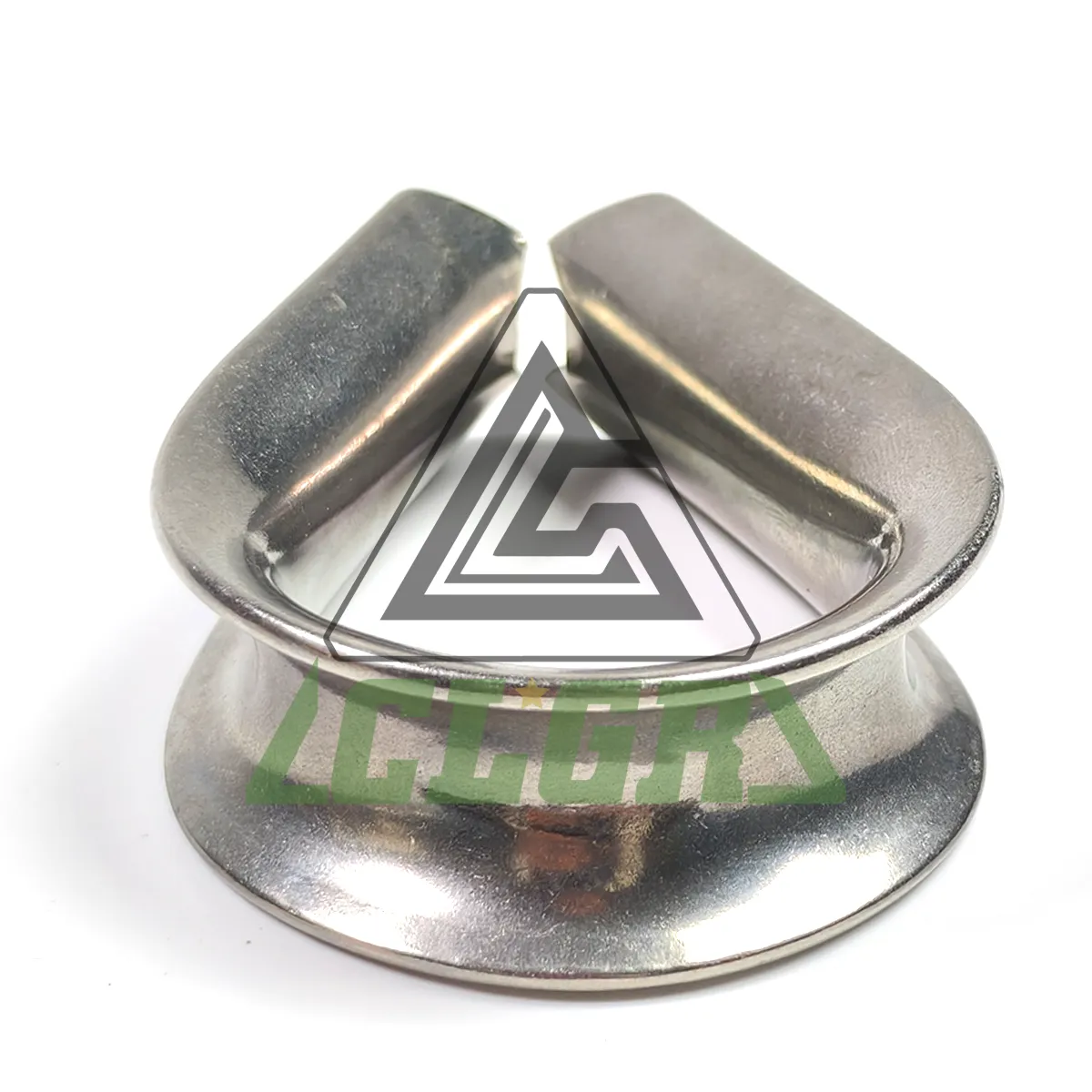

clgr® stainless steel wire rope thimble italy type china supplier thickness

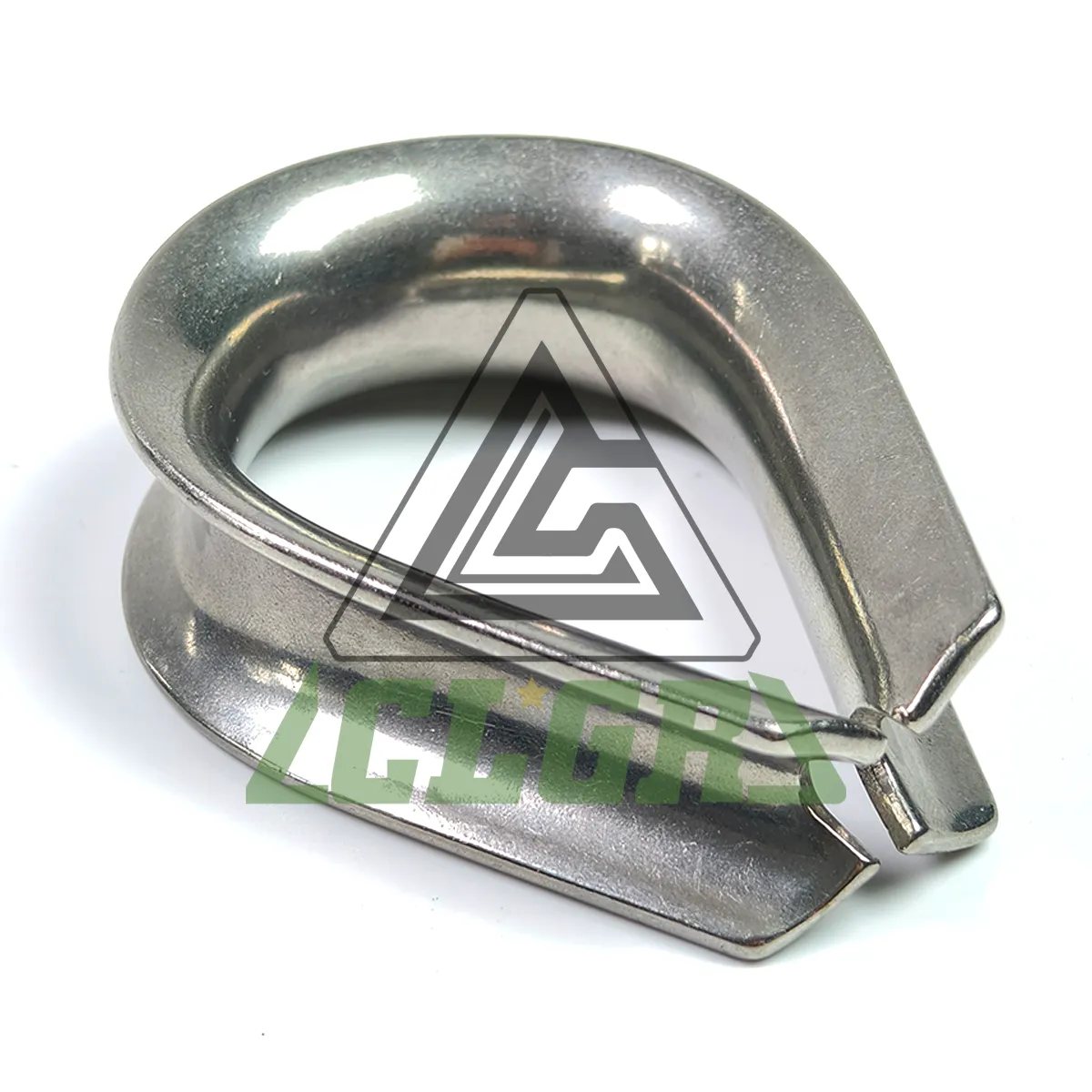

clgr® stainless steel wire rope thimble italy type side 2

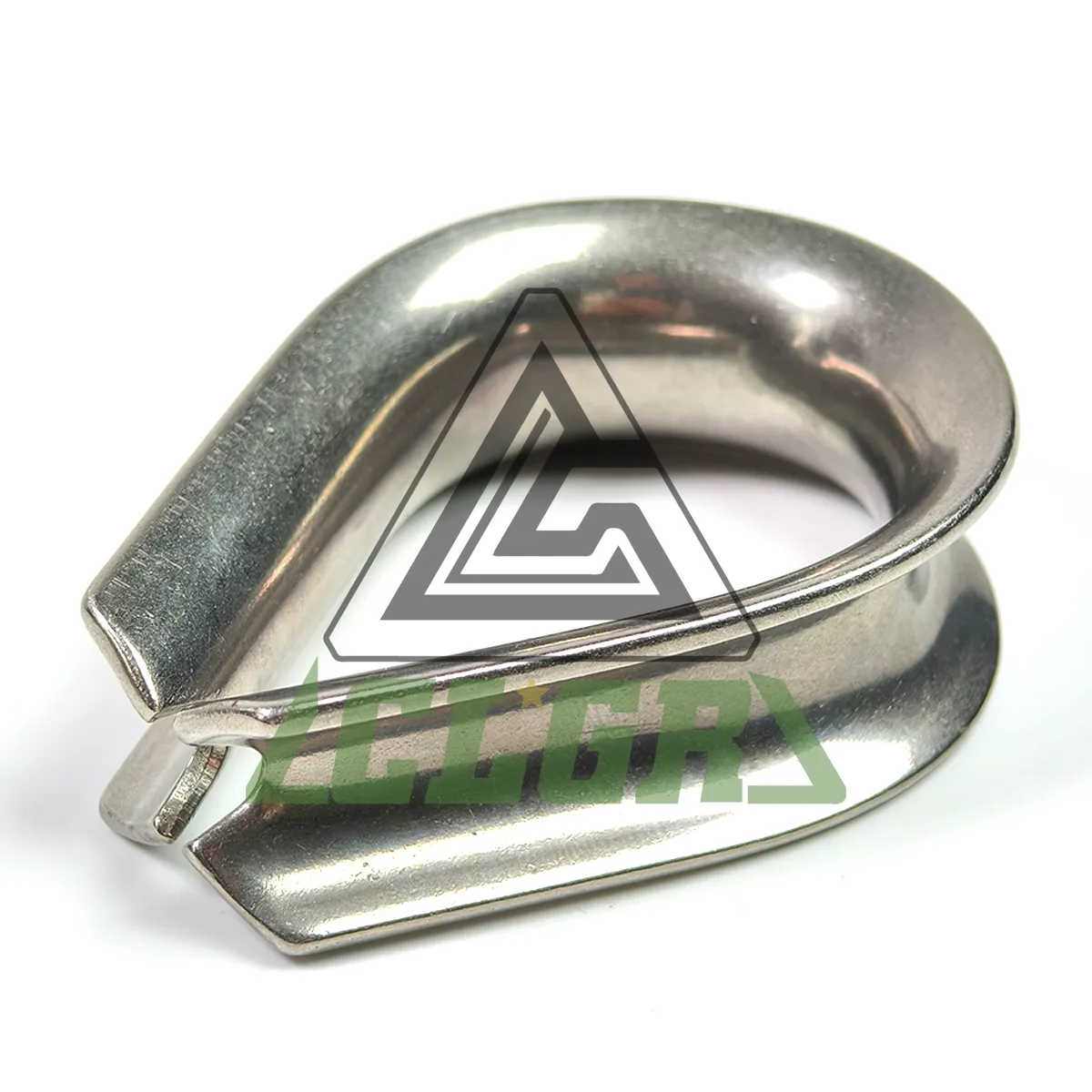

clgr® stainless steel wire rope thimble italy type side 1

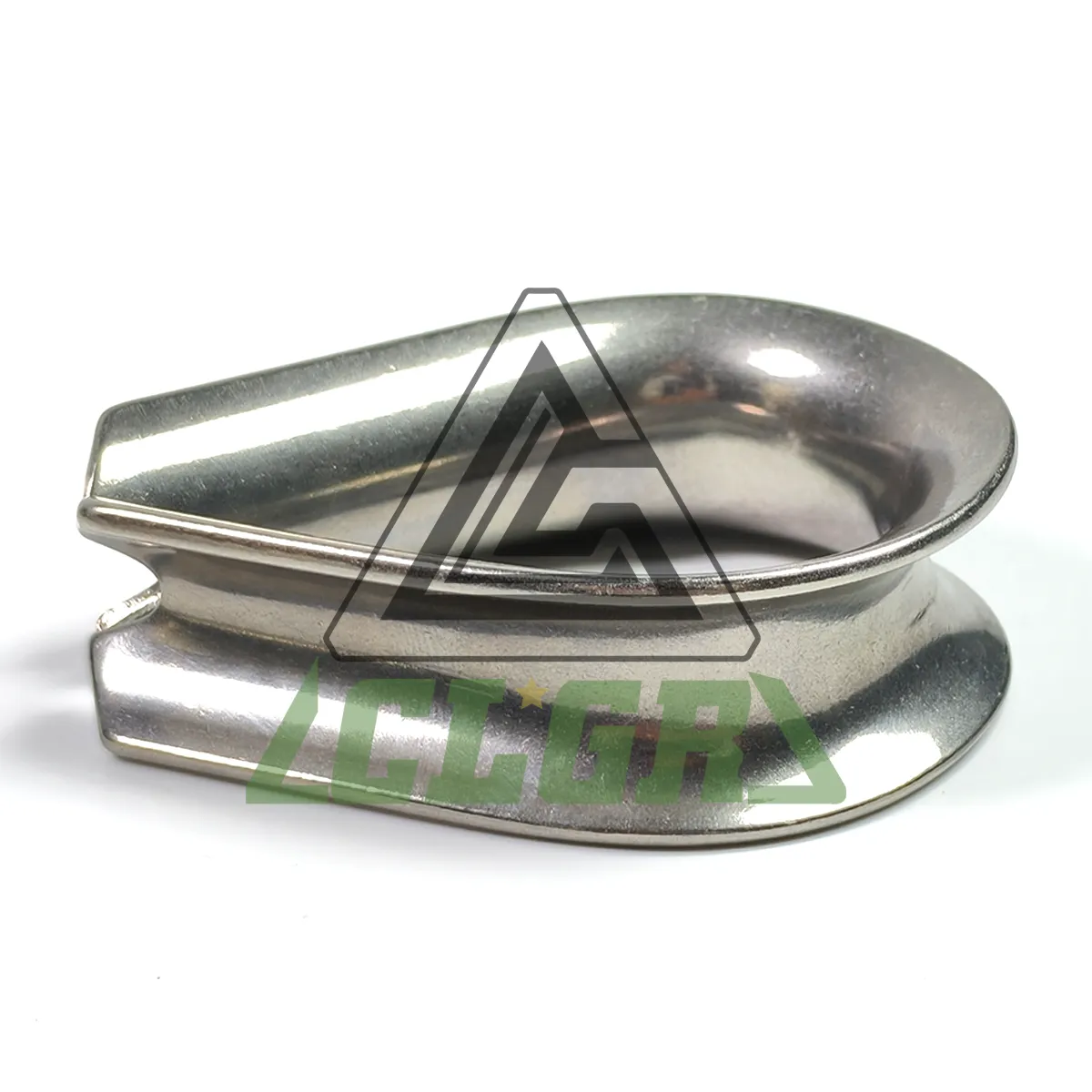

clgr® stainless steel wire rope thimble italy type side 3

 

Overview of CLGR® Stainless Steel Wire Rope Thimble Italy Type

Brand	CLGR®
Type	Italy Type
Material	AISI 304 / 316
Processing	Machining / Stamping
Finish	Highly Polishing
Size-Wire	2mm, 2.5mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm, 22mm, 24mm, 26mm, 28mm, 32mm, 36mm
Country of Origin	China

Specification of CLGR® Stainless Steel Wire Rope Thimble Italy Type

drawing-of-clgr®-stainless-steel-wire-rope-thimble-italy-type-china-manufacturer

Part No.	Size	A	B	C	L	M	S	Weight
Part No.	mm							g
CRA2/4WRTIT02	2	2.1	7	10	11	15	0.7	1
CRA2/4WRTIT03	3	2.9	10	14	15	20	1	2.3
CRA2/4WRTIT04	4	3.5	11	16	17	24	1	3.3
CRA2/4WRTIT05	5	4.5	13	20	21	25	1	5
CRA2/4WRTIT06	6	5.2	16	23	26	29	1.2	8.5
CRA2/4WRTIT07	7	6.3	18	25	29	38	1.2	10.6
CRA2/4WRTIT08	8	8.8	20	30	32	44	1.5	14
CRA2/4WRTIT10	10	11	26	39	42	56	2	38
CRA2/4WRTIT12	12	13	28	42	43	61	2	47.5
CRA2/4WRTIT14	14	15	34	51	58	75	2	71
CRA2/4WRTIT16	16	17	37	56	60	80	2.5	109
CRA2/4WRTIT18	18	20	42	63	66	87	2.5	130
CRA2/4WRTIT20	20	21	45	68	79	102	3	205
CRA2/4WRTIT22	22	24	50	77	90	117	3	252
CRA2/4WRTIT24	24	28	58	85	95	124	4	399
CRA2/4WRTIT26	26	28	66	97	103	135	4	483
