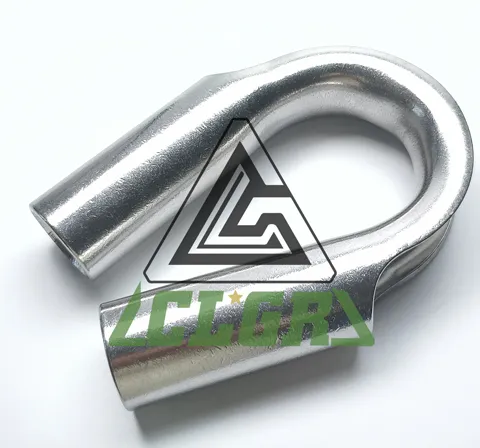

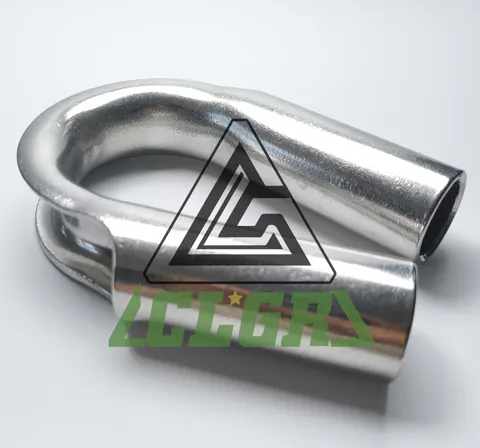

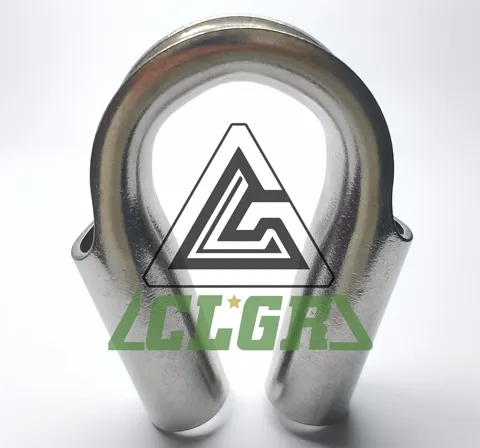

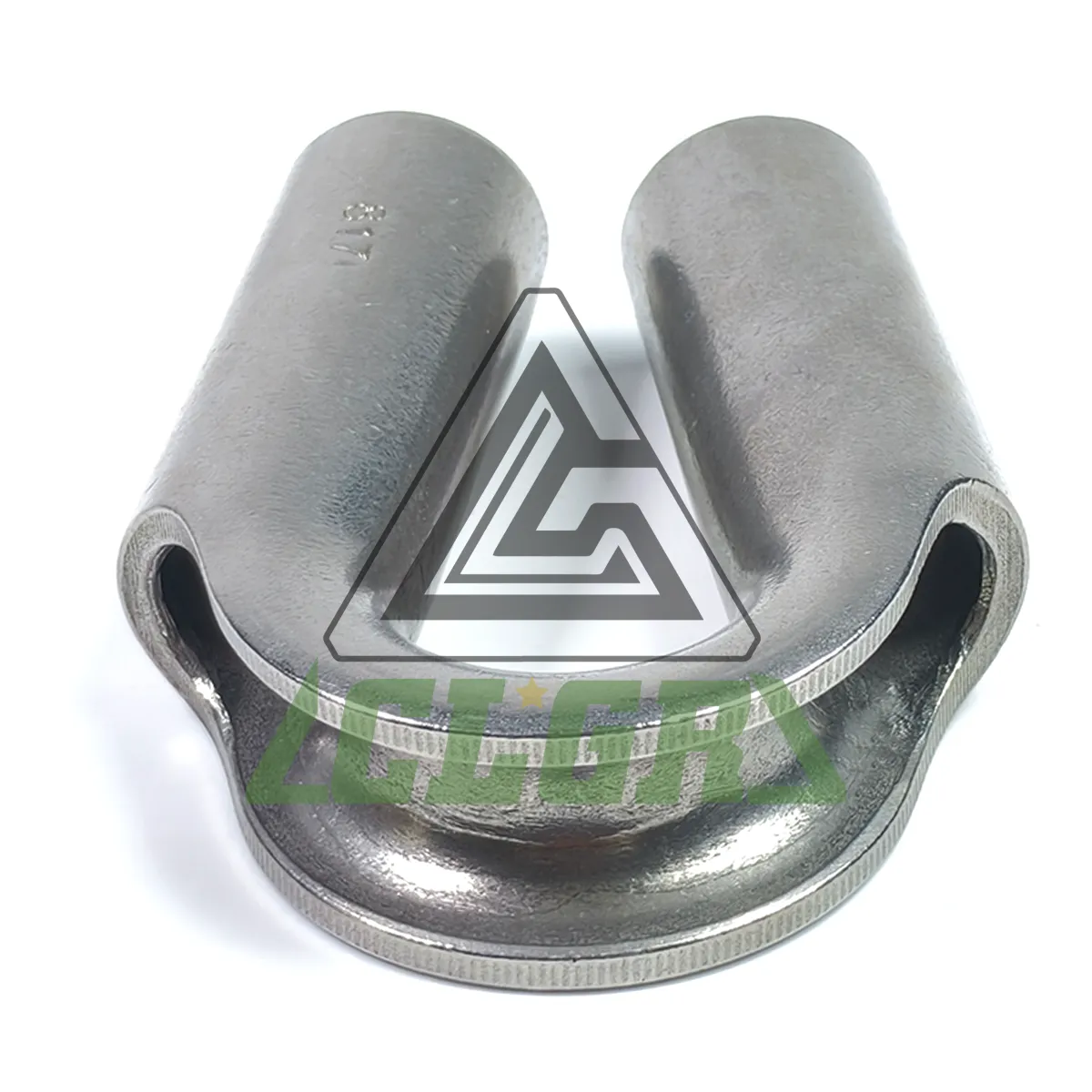

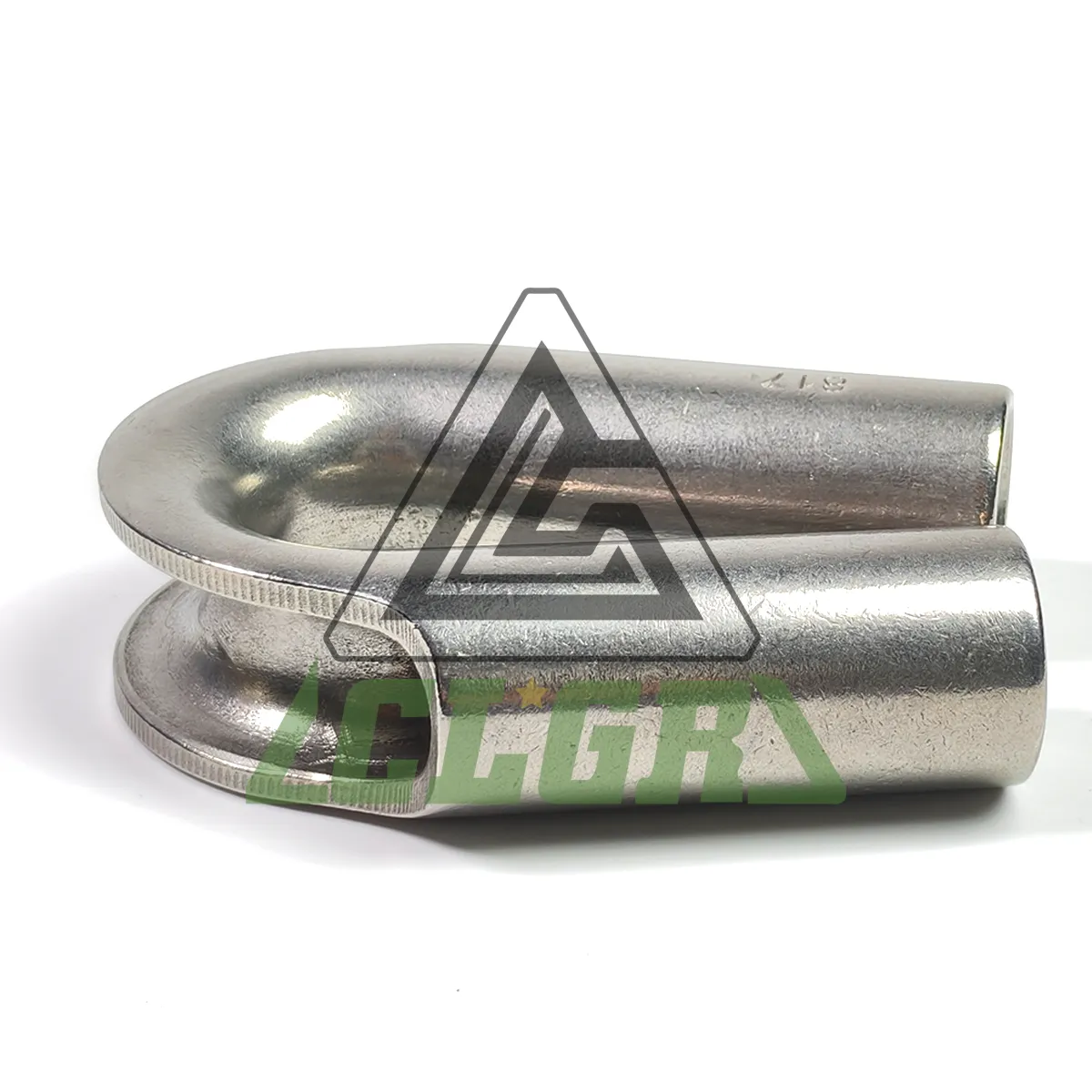

CLGR® Wire Tube Thimble Stainless Steel Heavy Duty SSG8/5 Type, also referred as to Tubular Thimble, and some customers called it stainless steel pipe thimbles.
Stainless Steel Tubular Thimble with Gusset, crafted from grade 304 or 316 stainless steel for excellent corrosion resistance, is compatible with synthetic rope and delivers high performance in outdoor, marine, and fishing environments.
The thimble helps maintain the shape and integrity of the looped end of the wire rope, preventing it from becoming distorted or flattened under load.
Special specifications can also be produced according to drawings and samples.
| Brand | CLGR® |
| Size | G512, G515, G521, G808, G810, G812, G815, G819, G824, G827, G831, G839, G848, G860 |
| Size wire | 8mm, 10mm, 12mm, 15mm, 19mm, 24mm, 27mm, 31mm, 39mm, 48mm, 60mm |
| Material | Stainless Steel Grade 304 or 316 |
| Surface Treatment | Highly Polishing |
| Processing | Machining, Stamping |
| Applications | For use of with wire ropes. |
Part No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | Weight (kg) |
CRSSTTG512 | 12 | 80 | 21 | 2.4 | 11 | 0.12 |
CRSSTTG515 | 15 | 93 | 23 | 2.8 | 14 | 0.19 |
CRSSTTG521 | 21 | 116 | 27 | 2.7 | 16 | 0.28 |
Part No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | Weight (kg) | For wire max. (mm) |
CRSSTTG808 | 8 | 60 | 17 | 3.0 | 7 | 0.08 | 6 |
CRSSTTG810 | 10 | 70 | 20 | 3.0 | 9 | 0.12 | 8 |
CRSSTTG812 | 12 | 84 | 20 | 4.0 | 7 | 0.33 | 10 |
CRSSTTG815 | 15 | 91 | 27 | 5.0 | 9 | 0.39 | 12 |
CRSSTTG819 | 19 | 113 | 31 | 5.0 | 11 | 0.79 | 16 |
CRSSTTG824 | 24 | 136 | 46 | 5.0 | 15 | 1.04 | 21 |
CRSSTTG827 | 27 | 142 | 45 | 5.0 | 15 | 1.29 | 24 |
CRSSTTG831 | 31 | 163 | 48 | 7.0 | 19 | 1.84 | 28 |
CRSSTTG839 | 39 | 179 | 60 | 5.5 | 20 | 1.68 | 35 |
CRSSTTG848 | 48 | 220 | 74 | 5.5 | 32 | 2.71 | 44 |
CRSSTTG860 | 60 | 260 | 100 | 8.5 | 38 | 5.75 | 54 |
