CLGR® Wire Rope End Stop Ferrule Aluminium

Name: CLGR® Wire Rope End Stop Ferrule Aluminium
Brand: CLGR®

The CLGR® Wire Rope End Stop Ferrule Aluminium, also known as Wire Rope Round Cable End Stop, Wire Rope Stop Sleeve, Round Gym Cable Ferrule End Stop and Aluminium stop button.

Wire Rope Stop Sleeves are made of mild steel. They can be permanently crimped/swaged on wire rope ends or intermediate points to act as a stop/termination.

Suitable for single wire ropes, they're easy to install: slide over the cable end and clamp with pliers – no special tools needed.

Ideal for professionals seeking a quick, reliable solution.

To Get A Quote >

CLGR® Wire Rope End Stop Ferrule Aluminium

 

Overview of CLGR® Wire Rope End Stop Ferrule Aluminium

Brand	CLGR®
Material	Superior Aluminium
Size	3/64″, 1/16″, 5/64″, 3/32″, 1/8″, 5/32″, 3/16″ , 7/32″, 1/4″ , 5/16″, 3/8″
Notes	Special specifications and marks can be made according to customers' requirements

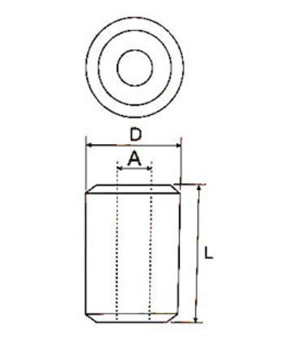

Specifications of CLGR® Wire Rope End Stop Ferrule Aluminium

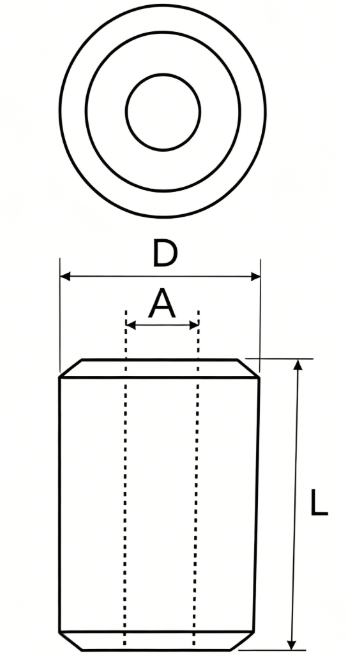

drawing-of-clgr®-wire-rope-end-stop-ferrule-aluminium-china-supplier

Part No.	Size	A(mm)	D(mm)	L(mm)	Weight
Part No.	Size	Inner Dia.	Outer Dia.	Length	kgs/1000pcs
CR-A-WRSS-3/64	3/64″	1.54	4.4	4.16	0.236
CR-A-WRSS-1/16	1/16″	1.92	6.35	4.16	0.278
CR-A-WRSS-5/64	5/64″	2.38	6.35	4.16	0.282
CR-A-WRSS-3/32	3/32″	2.9	8.72	7.95	1.05
CR-A-WRSS-1/8	1/8″	3.86	8.72	7.95	0.949
CR-A-WRSS-5/32	5/32″	4.7	11.11	8.73	1.76
CR-A-WRSS-3/16	3/16″	5.54	11.11	8.73	1.69
CR-A-WRSS-7/32	7/32″	6.35	11.11	8.73	1.5
CR-A-WRSS-1/4	1/4″	7.2	17.46	17.46	9.07
CR-A-WRSS-5/16	5/16″	9.53	17.46	17.46	7.46
CR-A-WRSS-3/8	3/8″	11.13	17.46	17.46	6.58
