CLGR® Cable Stainless Steel Ferrules DIN 3093 (EN 13411-3)

Name: CLGR® Cable Stainless Steel Ferrules DIN 3093 (EN 13411-3)
Brand: CLGR®

The Cable Stainless Steel Ferrules, also referred as to EN 13411-3 Wire Rope Stainless Steel Ferrules, Straight Stainless Steel Ferrules or Sleeves DIN 3093 and Oval Stainless Steel Swage Sleeves.

Manufactured in Stainless Steel, these ferrules are designed for steel cable connection and permanent fastening (non-reusable). For safety in fabrication and application, they use materials strictly meeting EN 13411 - 3 (DIN 3093) requirements on composition and mechanical properties, avoid corrosion and deterioration, and maintain optimum long-lasting resistance.

Common applications in overhead lifting, lashing and towing.

To Get A Quote >

CLGR® Cable Stainless Steel Ferrules DIN 3093 (EN 13411 3)

 

Overview of CLGR® Cable Stainless Steel Ferrules DIN 3093 (EN 13411-3)

Brand	CLGR®
Material	Stainless Steel
Standard	DIN3093(EN13411-3)
Process	Stamping＋Extruded
Surface Finish	Highly Polishing
Connection	Wire Rope End Fittings
Size	1mm, 1.5mm, 2mm, 2.5mm, 3mm, 3.5mm, 4mm, 4.5mm, 5mm, 6mm, 6.5mm, 7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 16mm, 18mm, 20mm, 22mm, 24mm, 26mm, 28mm, 30mm, 32mm, 34mm, 36mm, 38mm, 40mm, 42mm, 44mm, 46mm, 48mm, 50mm, 52mm, 54mm, 56mm, 58mm, 60mm

Specifications of CLGR® Cable Stainless Steel Ferrules DIN 3093 (EN 13411-3)

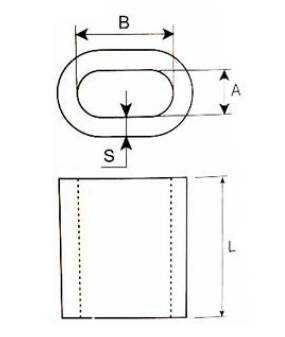

Specifications of CLGR® Cable Stainless Steel Ferrules DIN 3093

Part No.	Size	A(mm)	B(mm)	S(mm)	L(mm)	L'(mm)
CRSS309301	1	1.2	2.4	0.65	5	-
CRSS309315	1.5	1.7	3.4	0.75	6	-
CRSS309302	2	2.2	4.4	0.85	7	-
CRSS309325	2.5	2.7	5.4	1.05	9	-
CRSS309303	3	3.3	6.6	1.25	11	-
CRSS309335	3.5	3.8	7.6	1.5	13	-
CRSS309304	4	4.4	8.8	1.7	14	-
CRSS309345	4.5	4.9	9.8	1.9	16	-
CRSS309305	5	5.5	11	2.1	18	-
CRSS309306	6	6.6	13.2	2.5	21	25
CRSS309365	6.5	7.2	14.4	2.7	23	-
CRSS309307	7	7.8	15.6	2.9	25	30
CRSS309308	8	8.8	17.6	3.3	28	34
CRSS309309	9	9.9	19.8	3.7	32	38
CRSS309310	10	10.9	21.8	4.1	35	42
CRSS309311	11	12.1	24.2	4.5	39	47
CRSS309312	12	13.2	26.4	4.9	42	50
CRSS309313	13	14.2	28.4	5.4	46	55
CRSS309314	14	15.3	30.6	5.8	49	59
CRSS309316	16	17.5	35	6.7	56	67
CRSS309318	18	19.6	39.2	7.6	63	76
CRSS309320	20	21.7	43.4	8.4	70	84
CRSS309322	22	24.3	48.6	9.2	77	92
CRSS309324	24	26.4	52.8	10	84	101
CRSS309326	26	28.5	57	10.9	91	109
CRSS309328	28	31	62	11.7	98	118
CRSS309330	30	33.1	66.2	12.5	105	126
CRSS309332	32	35.2	70.4	13.4	112	134
CRSS309334	34	37.8	75.6	14.2	119	143
CRSS309336	36	39.8	79.6	15	126	152
CRSS309338	38	41.9	83.8	15.8	133	160
CRSS309340	40	44	88	16.6	140	168
CRSS309342	42	46.2	92.4	17.5	147	-
CRSS309344	44	48.4	96.8	18.3	154	184
CRSS309346	46	50.6	101.2	19.2	161	-
CRSS309348	48	52.8	105.6	20	168	200
CRSS309350	50	55	110	20.8	175	-
CRSS309352	52	57.2	114.4	21.6	182	216
CRSS309354	54	59.4	118.8	22.5	189	-
CRSS309356	56	61.6	123.2	23.3	196	232
CRSS309358	58	63.8	127.6	24.2	203	-
CRSS309360	60	66	132	25	210	248
