CLGR® Copper Oval Wire Rope Ferrules

Name: CLGR® Copper Oval Wire Rope Ferrules
Brand: CLGR®

The Copper Oval Wire Rope Ferrules, also known as Oval Copper Swage Sleeves.

Oval Copper Swage Sleeves are used to connect wire ropes, primarily enclosing the ends of wires/cables for various rigging needs (though they can be placed anywhere on the cable).

Oval in shape, they conform to internationally accepted standards such as EN 13411-3 and DIN 3093, and are available in copper, zinc-plated copper, and aluminum.

To Get A Quote >

Overview of CLGR® Copper Oval Wire Rope Ferrules

Brand	CLGR®
Material	Superior Copper
Process	Stamping＋Extruded
Surface Finish	Self-Colored / Nickel Plated
Connection	Wire Rope End Fittings
Size	1mm, 1.5mm, 2mm, 2.5mm, 3mm, 3.5mm, 4mm, 4.5mm, 5mm, 6mm, 6.5mm, 7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 16mm, 18mm

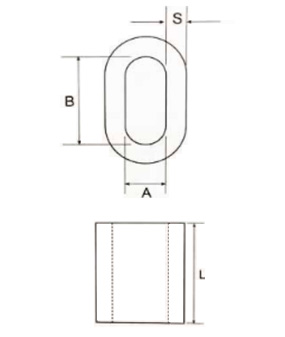

Specifications of CLGR® Copper Oval Wire Rope Ferrules

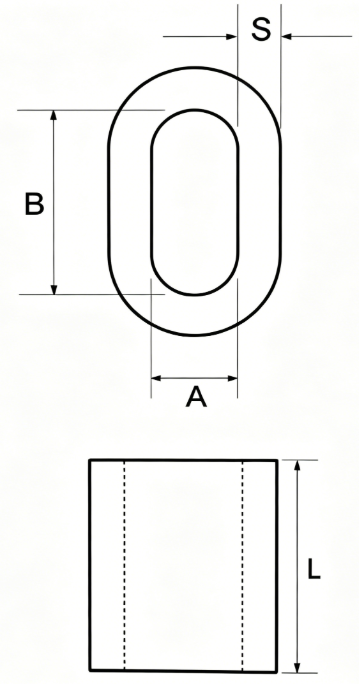

drawing-of-clgr®-copper-oval-wire-rope-ferrules

Part No.	Ferrule Code.	A (mm)	B (mm)	S (mm)	L(mm)	Weight (kgs/1000pcs)
CRWRFCOV01	1	1.3	2.6	0.85	5	0.32
CRWRFCOV15	1.5	1.8	3.6	1.05	6	0.72
CRWRFCOV02	2	2.4	4.8	0.85	7	0.82
CRWRFCOV25	2.5	2.7	5.4	1.1	9	1.7
CRWRFCOV03	3	3.3	6.6	1.35	11	2.9
CRWRFCOV35	3.5	3.9	7.8	1.6	13	4.5
CRWRFCOV04	4	4.3	8.8	1.7	14	6.2
CRWRFCOV45	4.5	5.1	10.2	1.9	16	8.9
CRWRFCOV05	5	5.6	11.2	2.1	18	12.2
CRWRFCOV06	6	6.7	13.4	2.5	21	20
CRWRFCOV65	6.5	6.9	14	2.7	23	27
CRWRFCOV07	7	7.5	15	3	25	32
CRWRFCOV08	8	8.5	17	3.5	28	47
CRWRFCOV10	10	10.9	21.8	4.1	35	90
CRWRFCOV11	11	11.6	23.2	4.2	39	122
CRWRFCOV12	12	13.2	26.4	4.9	42	158
CRWRFCOV13	13	14.2	28.4	5.4	46	198
CRWRFCOV14	14	15.3	30.6	5.8	49	243
CRWRFCOV16	16	17.5	35	6.7	56	366
CRWRFCOV18	18	19	38	7.8	63	529
