CLGR® DIN 3093 Aluminium Ferrules EN 13411-3

Name: CLGR® DIN 3093 Aluminium Ferrules EN 13411-3
Brand: CLGR®

The CLGR® DIN 3093 Aluminium Ferrules EN 13411-3, also referred as to EN 13411-3 Wire Rope Aluminum Ferrules or Sleeves DIN 3093 and Oval Aluminium Swage Sleeves.

Manufactured in aluminum, these ferrules are designed for steel cable connection and permanent fastening (non-reusable). For safety in fabrication and application, they use materials strictly meeting EN 13411 - 3 (DIN 3093) requirements on composition and mechanical properties, avoid corrosion and deterioration, and maintain optimum long-lasting resistance.

Common applications in overhead lifting, lashing and towing.

To Get A Quote >

CLGR® DIN 3093 Aluminium Ferrules EN 13411-3

 

Overview of CLGR® DIN 3093 Aluminium Ferrules EN 13411-3

Brand	CLGR®
Material	Aluminium
Standard	DIN3093(EN13411-3)
Process	Stamping＋Extruded
Surface Finish	Self-Colored / Nickel Plated
Connection	Wire Rope End Fittings
Size	1mm, 1.5mm, 2mm, 2.5mm, 3mm, 3.5mm, 4mm, 4.5mm, 5mm, 6mm, 6.5mm, 7mm, 8mm, 9mm,10mm, 11mm, 12mm, 13mm, 14mm, 16mm, 18mm, 20mm, 22mm, 24mm, 26mm, 28mm, 30mm, 32mm, 34mm, 36mm, 38mm, 40mm, 42mm, 44mm, 46mm, 48mm, 50mm, 52mm, 54mm, 56mm, 58mm, 60mm

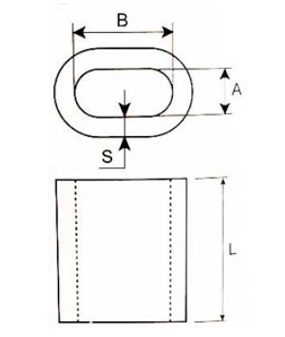

Specifications of CLGR® DIN 3093 Aluminium Ferrules EN 13411-3

Part No.	Size	A(mm)	B(mm)	S(mm)	L(mm)	Weight (kg/1000pcs）	L'(mm)
CRWRFA309301	1	1.2	2.4	0.65	5	0.098	-
CRWRFA309315	1.5	1.7	3.4	0.75	6	0.176	-
CRWRFA309302	2	2.2	4.4	0.85	7	0.285	-
CRWRFA309325	2.5	2.7	5.4	1.05	9	0.439	-
CRWRFA309303	3	3.3	6.6	1.25	11	0.907	-
CRWRFA309335	3.5	3.8	7.6	1.5	13	1.18	-
CRWRFA309304	4	4.4	8.8	1.7	14	1.63	-
CRWRFA309345	4.5	4.9	9.8	1.9	16	2.39	-
CRWRFA309305	5	5.5	11	2.1	18	3.62	-
CRWRFA309306	6	6.6	13.2	2.5	21	5.87	25
CRWRFA309365	6.5	7.2	14.4	2.7	23	7.18	-
CRWRFA309307	7	7.8	15.6	2.9	25	9.83	30
CRWRFA309308	8	8.8	17.6	3.3	28	12.96	34
CRWRFA309309	9	9.9	19.8	3.7	32	18.94	38
CRWRFA309310	10	10.9	21.8	4.1	35	24.09	42
CRWRFA309311	11	12.1	24.2	4.5	39	35.35	47
CRWRFA309312	12	13.2	26.4	4.9	42	44.18	50
CRWRFA309313	13	14.2	28.4	5.4	46	59.86	55
CRWRFA309314	14	15.3	30.6	5.8	49	73.5	59
CRWRFA309316	16	17.5	35	6.7	56	111	67
CRWRFA309318	18	19.6	39.2	7.6	63	159	76
CRWRFA309320	20	21.7	43.4	8.4	70	217	84
CRWRFA309322	22	24.3	48.6	9.2	77	292	92
CRWRFA309324	24	26.4	52.8	10	84	376	101
CRWRFA309326	26	28.5	57	10.9	91	481	109
CRWRFA309328	28	31	62	11.7	98	603	118
CRWRFA309330	30	33.1	66.2	12.5	105	739	126
CRWRFA309332	32	35.2	70.4	13.4	112	897	134
CRWRFA309334	34	37.8	75.6	14.2	119	1077	143
CRWRFA309336	36	39.8	79.6	15	126	1275	152
CRWRFA309338	38	41.9	83.8	15.8	133	1503	160
CRWRFA309340	40	44	88	16.6	140	1734	168
CRWRFA309342	42	46.2	92.4	17.5	147	2024	-
CRWRFA309344	44	48.4	96.8	18.3	154	2314	184
CRWRFA309346	46	50.6	101.2	19.2	161	2662	-
CRWRFA309348	48	52.8	105.6	20	168	3010	200
CRWRFA309350	50	55	110	20.8	175	3412	-
CRWRFA309352	52	57.2	114.4	21.6	182	3813	216
CRWRFA309354	54	59.4	118.8	22.5	189	4293	-
CRWRFA309356	56	61.6	123.2	23.3	196	4772	232
CRWRFA309358	58	63.8	127.6	24.2	203	5326	-
CRWRFA309360	60	66	132	25	210	5880	248

Bulk Photos of DIN 3093 Aluminium Ferrules EN 13411-3
