CLGR® Steel Spacers with Rings with Chain Welded

Name: CLGR® Steel Spacers with Rings with Chain Welded
Brand: CLGR®

CLGR® Steel Spacers with Rings with Chain Welded, also known as Steel Spacer Welded with Chain.

Steel Spacers with Chain Welded is made of superior mild steel, and finish is self-color, customized is available.

And our Chain Toggle YoYo for fish trawl foot-rope. Standard 5 links.

We offer welded steel chain toggles in our range, which come in both standard and customized sizes.

To Get A Quote >

Overview of CLGR® Steel Spacers with Rings with Chain Welded

Brand	CLGR®
Material	Superior Mild Steel
Processing	Welded
Size	E513-R, E516-R, E519-R, E516-K, E519-K
Finish	Self-colored

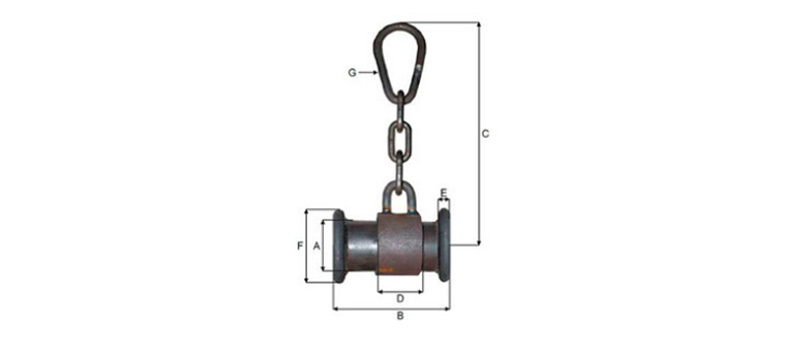

Specifications of CLGR® Steel Spacers with Rings with Chain Welded

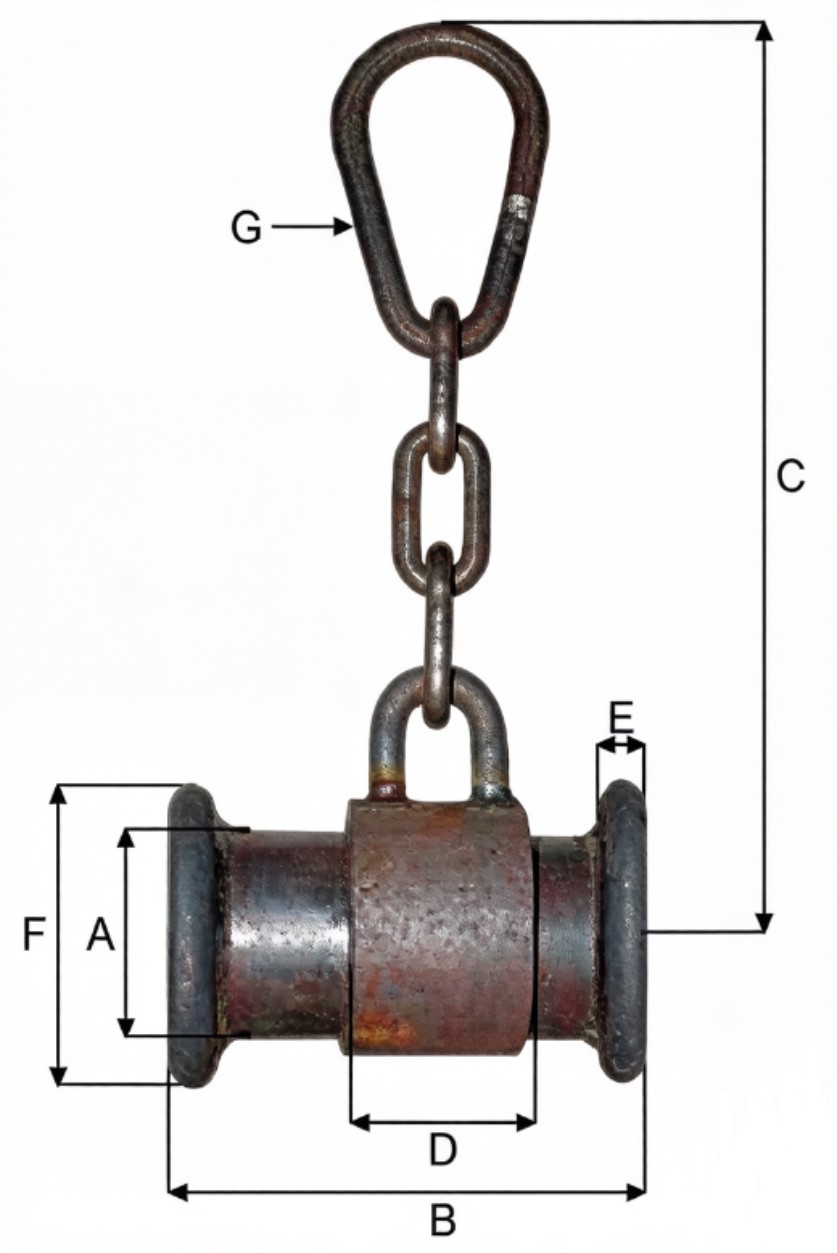

Drawing of CLGR® Steel Spacers with Rings with Chain Welded China Supplier

Part No.	A mm	B mm	C mm	D mm	E mm	F mm	G mm	Weight kg
CRSPE513-R	50	150	320	60	16	64	C12-70STP	3.1
CRSPE516-R	65	200	360	60	19	83	C12-125STP	6.1
CRSPE519-R	80	200	380	70	22	102	C16-125STP	10.7
CRSPE516-K	65	200	335	60	19	83	C12-125STP	6.1
CRSPE519-K	80	200	335	70	22	102	C16-125STP	10.7

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
