CLGR® Steel Spacers Heavy Duty EDT Chain Toggles Welded

Name: CLGR® Steel Spacers Heavy Duty EDT Chain Toggles Welded
Brand: CLGR®

CLGR® Steel Spacers Heavy Duty EDT Chain Toggles Welded, also called Spacer EDT Chain Toggle.

Spacer EDT Chain Toggle is made of superior mild steel, and finish is self-color, customized is available.

And our Chain Toggle YoYo for fish trawl foot-rope. Available with 3 and 5 links.

We offer welded steel chain toggles in our range, which come in both standard and customized sizes.

To Get A Quote >

clgr-steel-spacers-heavy-duty-edt-chain-toggles-welded-quality

Overview of CLGR® Steel Spacers Heavy Duty EDT Chain Toggles Welded

Brand	CLGR®
Material	Superior Mild Steel
Processing	Welded
Finish	Self-colored
Size-Chain	EDT16, EDT19, EDT22

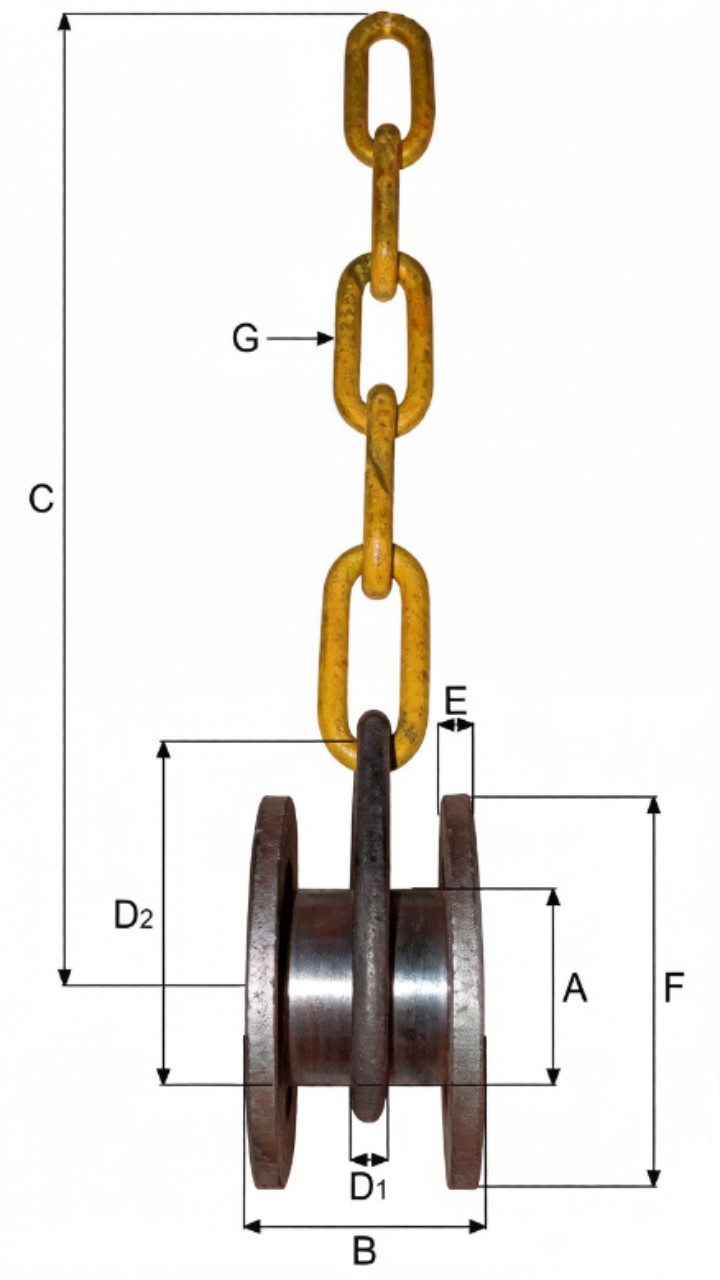

Specifications of CLGR® Steel Spacers Heavy Duty EDT Chain Toggles Welded

Part No.	A(inner dia.) mm	B mm	C mm	D1 mm	D2 mm	E mm	F mm	G mm	Weight kg
CREDT16-075-05MLL13	61	76	428	16	165	10	134	13	3.64
CREDT16-075-07MLL13	61	76	528	16	165	10	134	13	3.97
CREDT16-075-10HLL11	61	76	836	16	165	10	134	11	4.15
CREDT19-100-05MLL13	74	100	428	16	165	14	175	13	7.05
CREDT19-100-07MLL13	74	100	528	16	165	14	175	13	7.38
CREDT22-115-10HLL13	80	115	988	19	165	16	180	13	9.50
CREDT22-115-13HLL13	80	115	1231	19	165	16	180	13	10.16

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
