CLGR® Chain Toggle for Chain for Fishing Trawl Foot-Rope

Name: CLGR® Chain Toggle for Chain for Fishing Trawl Foot-Rope
Brand: CLGR®

Chain Toggle for Chain for Fishing Trawl Foot-rope Welded Steel, also called Wire Toggles and Cadena yoyo.

Chain Toggle for Chain is made of superior mild steel, and finish is self-color, customized is available.

Chain Toggles for fishing trawl foot-rope for 10mm and 13mm chain. Standard 5 links.

We offer welded steel chain toggles in our range, which come in both standard and customized sizes.

To Get A Quote >

clgr-chain-toggle-for-chain-for-fishing-trawl-foot-rope-working-principle

Overview of CLGR® Chain Toggle for Chain for Fishing Trawl Foot-rope

Brand	CLGR®
Material	Superior Mild Steel
Processing	Welded
Finish	Self-color
Size-Chain	10mm, 13mm

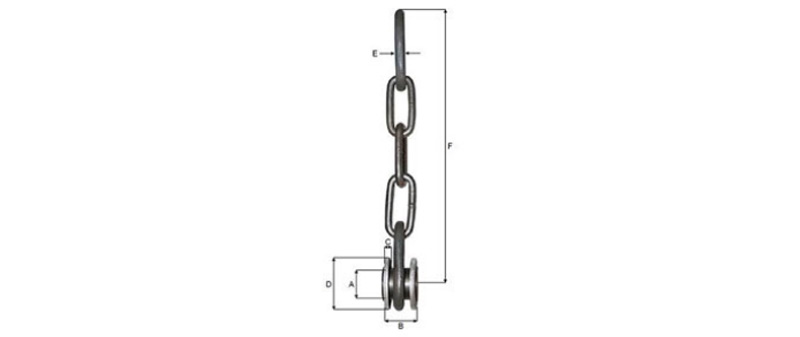

Specifications of CLGR® Chain Toggle for Chain for Fishing Trawl Foot-rope

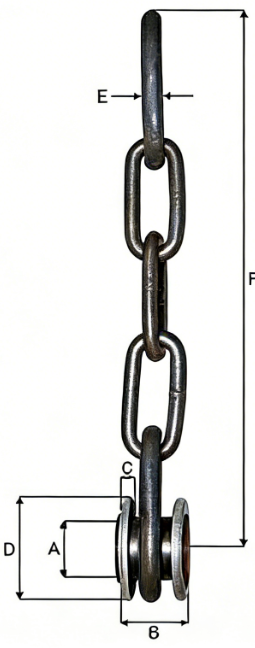

Drawing of CLGR® Chain Toggle for Chain for Fishing Trawl Foot-rope

Part No.	A mm	B mm	C mm	D mm	E mm	F mm	Weight kg	For chain Dia. mm
CRE340N-5	40	50	4	70	8	270	80	10
CRE350N-5	50	50	5	83	10	315	180	13
CRE340L-5	40	200	4	70	8	240	150	10
CRE350L-5	50	200	5	83	10	310	290	13
