CLGR® Chain Toggle Heavy Type Welded Steel

Name: CLGR® Chain Toggle Heavy Type Welded Steel
Brand: CLGR®

Chain Toggle Heavy Type Welded Steel, also known as Cadena yoyo.

Chain Toggle Heavy Type Welded Steel is made of superior mild steel, and finish is self-color, customized is available. Steel spacers for 10mm, 13mm, 16 mm, 19mm chain.

And our Chain Toggle YoYo for fish trawl foot-rope. Available with 5 links.

We offer welded steel chain toggles in our range, which come in both standard and customized sizes.

To Get A Quote >

clgr-chain-toggle-heavy-type-welded-steel-design

Overview of CLGR® Chain Toggle Heavy Type Welded Steel

Brand	CLGR®
Material	Superior Mild Steel
Processing	Welded
Finish	Self-color
Size-Chain	10mm, 13mm, 16mm, 19mm

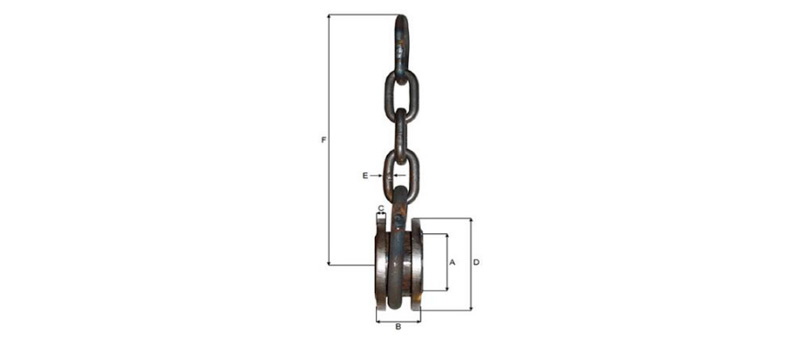

Specifications of CLGR® Chain Toggle Heavy Type Welded Steel

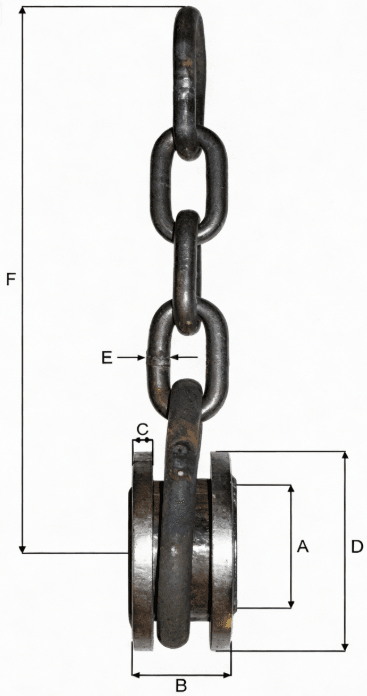

Drawing of CLGR® Chain Toggle Heavy Type Welded Steel China Supplier

Part No.	A mm	B mm	C mm	D mm	E mm	F mm	Weight kg	For chain Dia. mm
CRE340H-5	40	50	8	80	10	300	140	10
CRE350H-5	50	50	8	120	10	320	255	13
CRE365H-5	65	50	10	120	12	320	330	16
CRE372H-5	72	50	10	150	12	390	400	19

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
