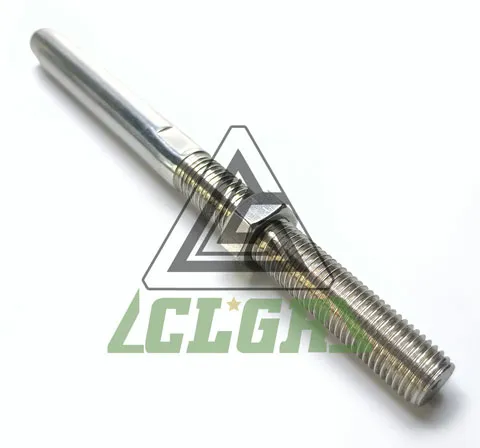

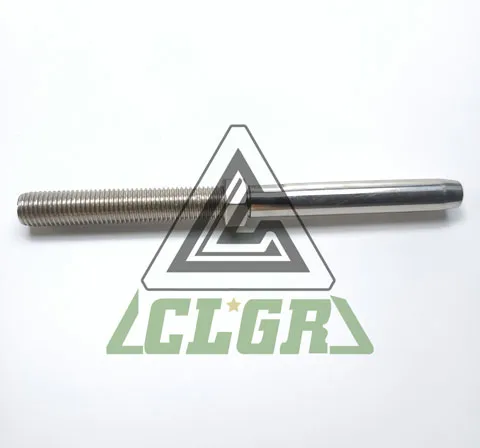

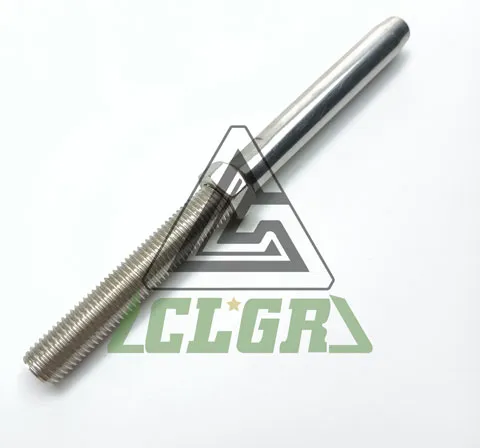

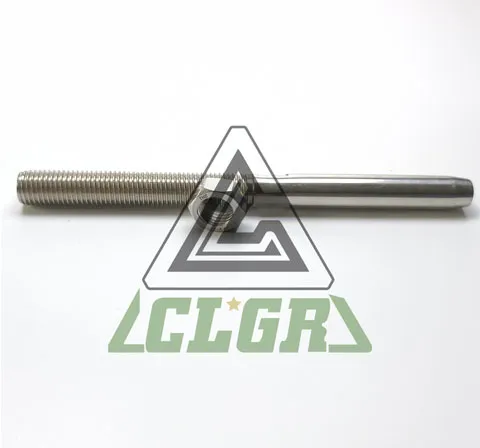

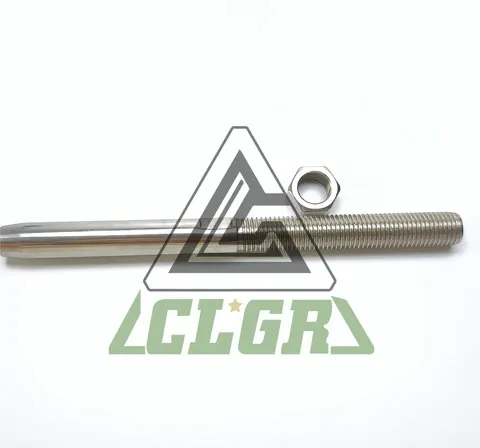

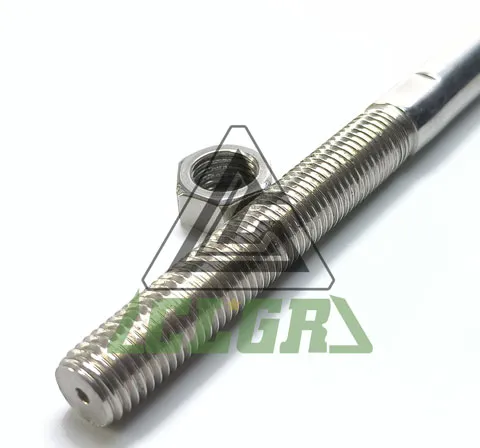

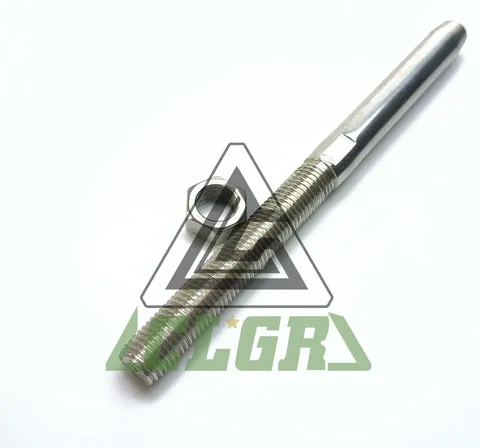

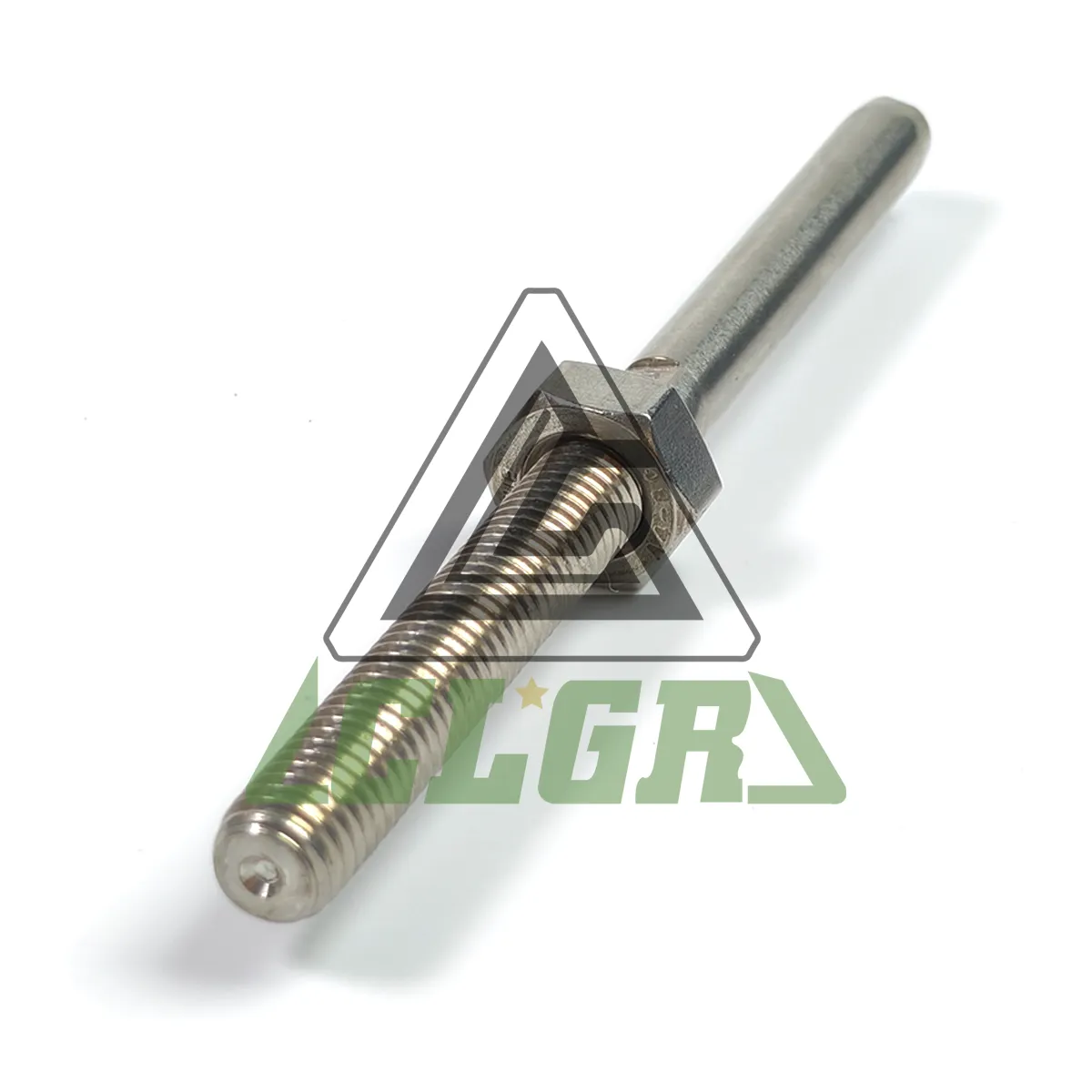

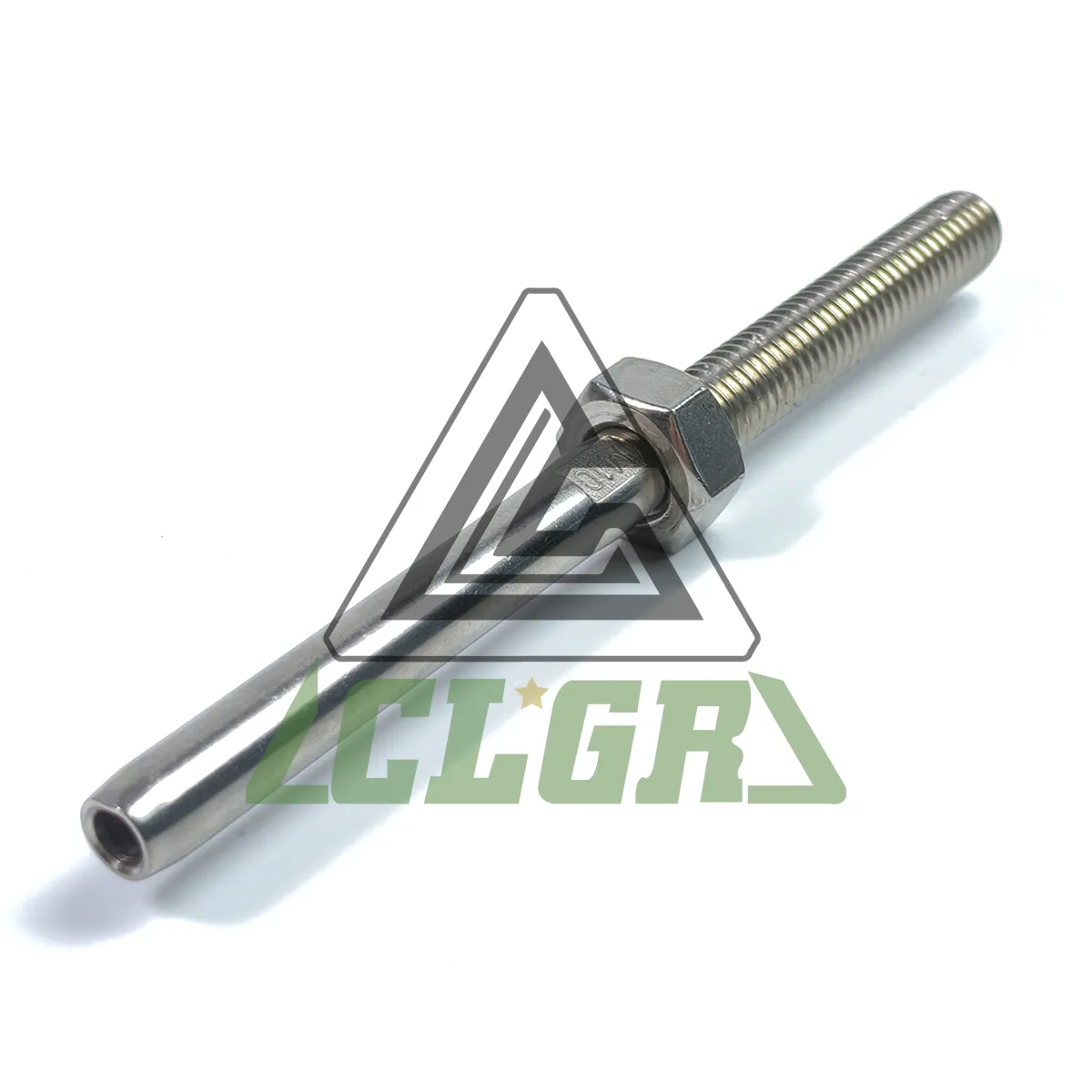

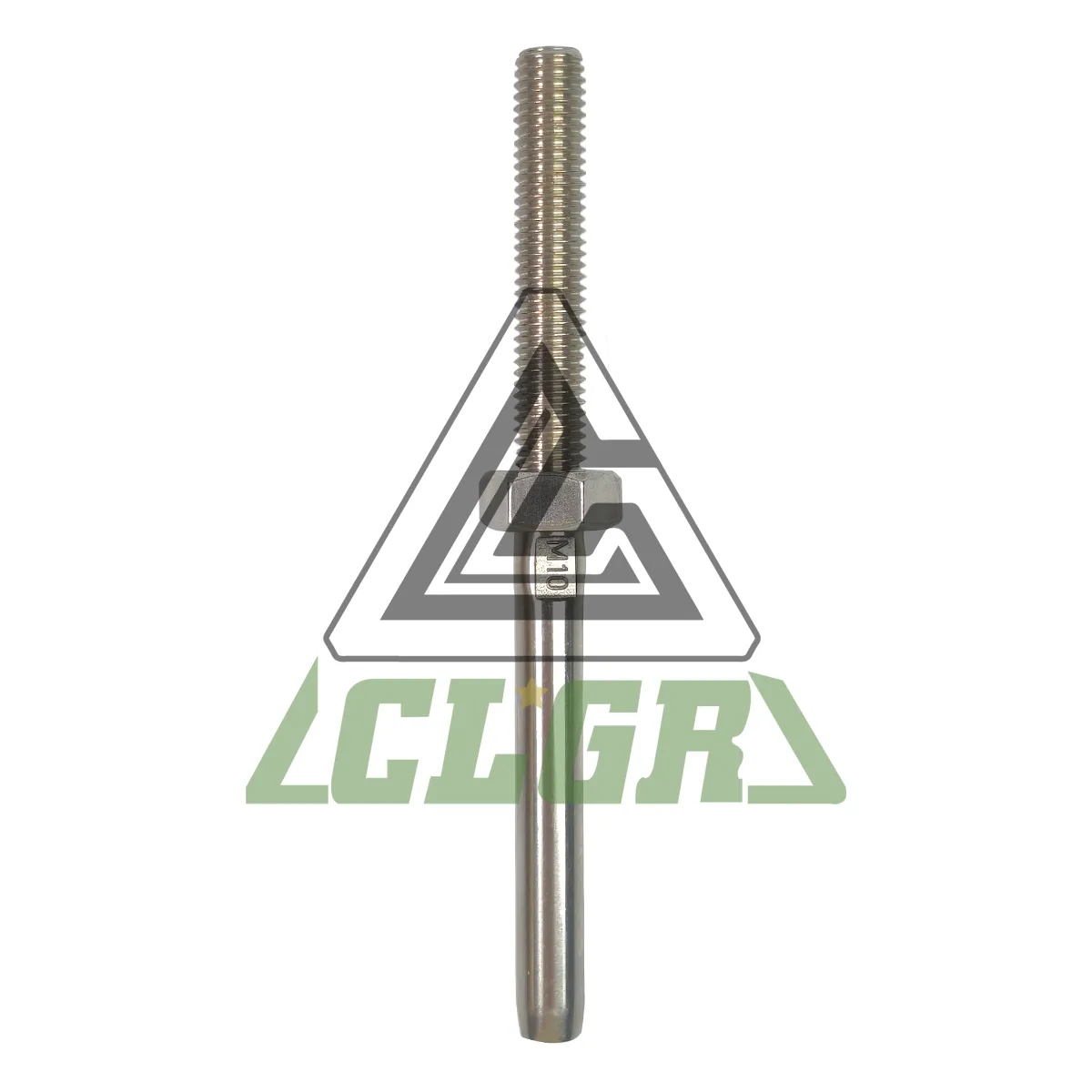

The Stainless Steel Swage Stud Terminal, also known as Wire Rope Threaded Stud, Swage Threaded Stud, Wire Rope Threaded Cable Ends and Stainless Steel Swage Stud Threaded Terminal.
The Stainless Swage Terminals are manufactured from high quality forged AISI 316 marine grade stainless steel and are specifically designed to help adjust the tension and length of stainless-steel wire rope, balustrade systems and other tensioning methods.
Note: Swage Terminals must be swaged to wire rope with an appropriate swaging press.
Brand | CLGR® |
Material | Stainless Steel |
Technical Notes | European Type |
Size | 2mm, 2.5mm, 3mm, 4mm, 5mm, 6mm, 7mm, 8mm 10mm, 12mm, 14mm, 16mm, 19mm, 22mm, 26mm |
Processing | Stamping / Machining |
Finish | Highly Polishing |
Warning | Not rated for lifting |

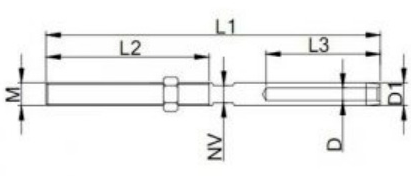

Part No. | Size (mm) | Wire (mm) | D (mm) | D1 (mm) | L3 (mm) | L2 (mm) | L1 (mm) | NV (mm) | KG/100 | BL (KG) |
CRSSSTERTT0402 | M4 | 2 | 2.2 | 4.8 | 24 | 38 | 73 | 3 | 0.6 | 50 |
CRSSSTERTT0502 | M5 | 2 | 2.2 | 5.5 | 32 | 40 | 86 | 4 | 1.3 | 800 |
CRSSSTERTT0525 | M5 | 2.5 | 2.7 | 5.5 | 32 | 40 | 86 | 4 | 1.3 | 800 |
CRSSSTERTT0532 | M5 | 3.2 | 3.5 | 6.35 | 38 | 40 | 90 | 5 | 1.6 | 800 |
CRSSSTERTT0603 | M6 | 3 | 3.3 | 6.35 | 39 | 48 | 100 | 5 | 2 | 1250 |
CRSSSTERTT0632 | M6 | 3.2 | 3.5 | 6.35 | 39 | 48 | 110 | 5 | 2 | 1250 |
CRSSSTERTT0604 | M6 | 4 | 4.3 | 7.5 | 39 | 48 | 100 | 6 | 2.5 | 1250 |
CRSSSTERTT0804 | M8 | 4 | 4.3 | 7.5 | 45 | 57 | 117 | 6 | 3.8 | 2350 |
CRSSSTERTT0805 | M8 | 5 | 5.3 | 9 | 52 | 57 | 124 | 7 | 4.6 | 2350 |
CRSSSTERTT1005 | M10 | 5 | 5.3 | 9 | 52 | 63 | 130 | 7 | 6.5 | 3500 |
CRSSSTERTT1006 | M10 | 6 | 6.4 | 12.6 | 64 | 63 | 145 | 10 | 10.3 | 3500 |
CRSSSTERTT1206 | M12 | 6 | 6.4 | 12.6 | 64 | 80 | 162 | 10 | 13.5 | 5100 |
CRSSSTERTT1208 | M12 | 8 | 8.4 | 16 | 80 | 80 | 180 | 14 | 19 | 5100 |
CRSSSTERTT1407 | M14 | 7 | 7.4 | 14.2 | 70 | 90 | 180 | 12 | 20 | 5900 |
CRSSSTERTT1608 | M16 | 8 | 8.4 | 16 | 80 | 100 | 200 | 14 | 28 | 8000 |
CRSSSTERTT1610 | M16 | 10 | 10.5 | 18 | 90 | 100 | 210 | 15 | 32 | 8000 |
CRSSSTERTT2010 | M20 | 10 | 10.5 | 18 | 90 | 119 | 230 | 15 | 46 | 13000 |
CRSSSTERTT2012 | M20 | 12 | 12.6 | 20 | 105 | 120 | 245 | 17 | 51 | 13000 |
CRSSSTERTT2214 | M22 | 14 | 14.7 | 25 | 140 | 140 | 308 | 23 | 87 | 17000 |
CRSSSTERTT2416 | M24 | 16 | 16.9 | 28 | 160 | 170 | 363 | 25 | 125 | 23000 |
CRSSSTERTT2719 | M27 | 19 | 20 | 34.5 | 200 | 180 | 425 | 30 | 209 | 25500 |
CRSSSTERTT3022 | M30 | 22 | 23.2 | 40.5 | 230 | 200 | 480 | 36 | 314 | 31000 |
CRSSSTERTT3626 | M36 | 26 | 27.5 | 46 | 280 | 220 | 550 | 41 | 470 | 43000 |
