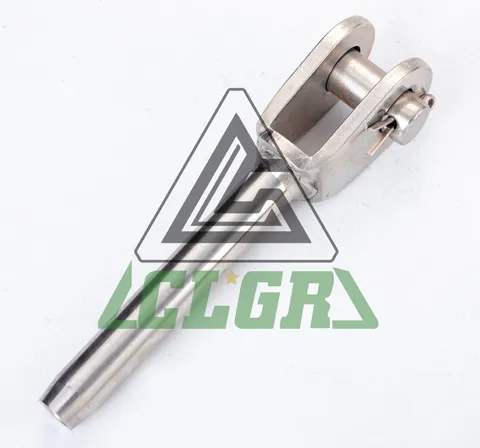

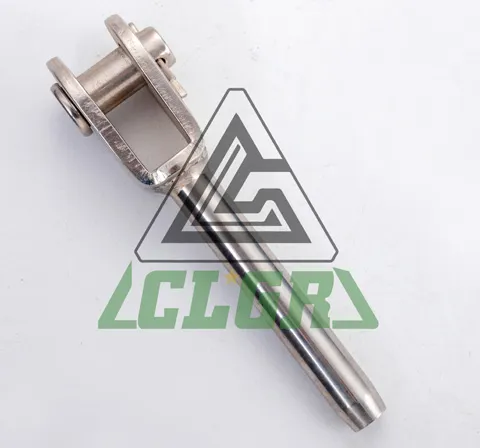

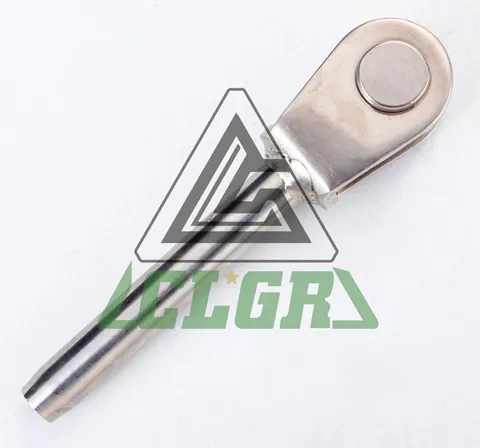

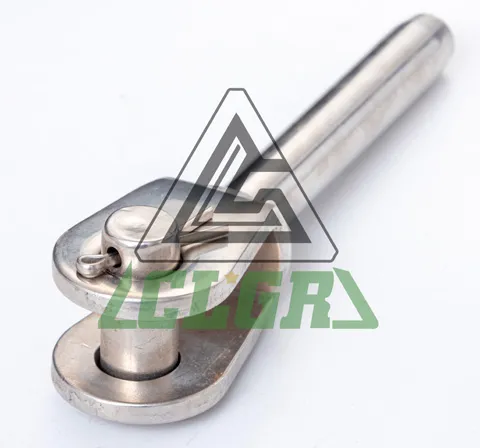

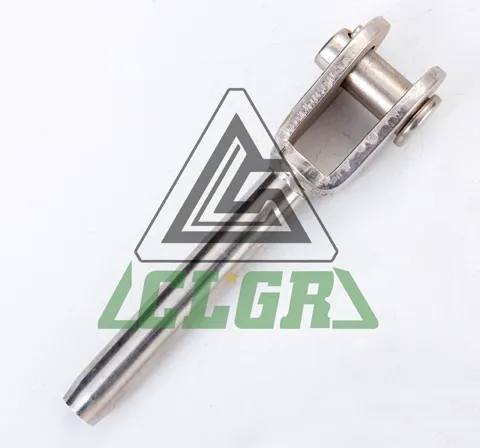

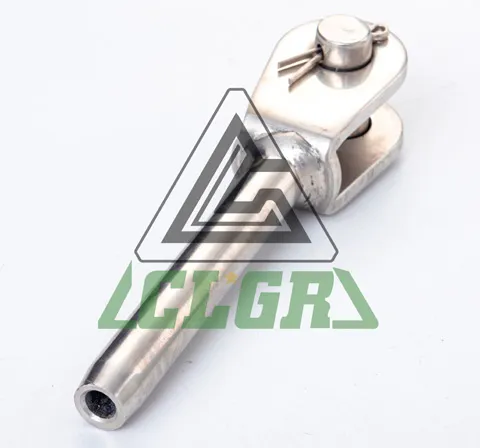

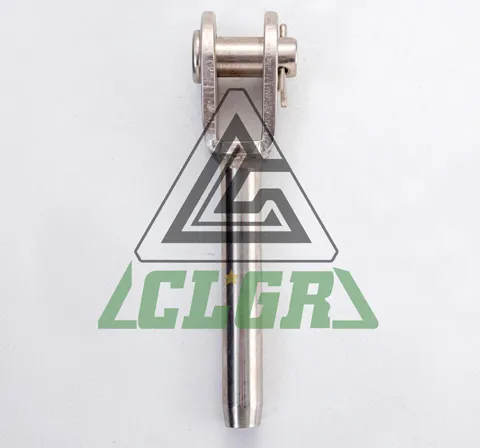

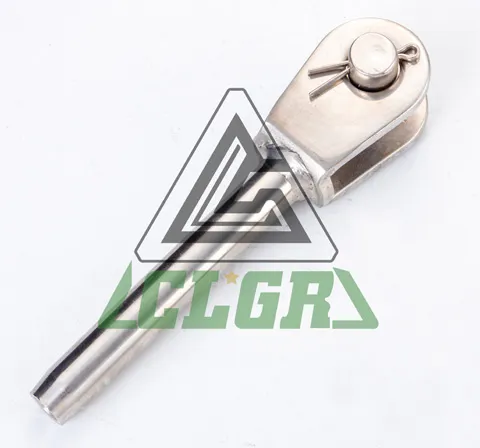

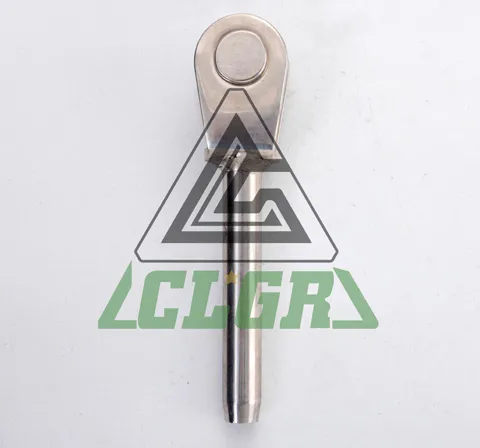

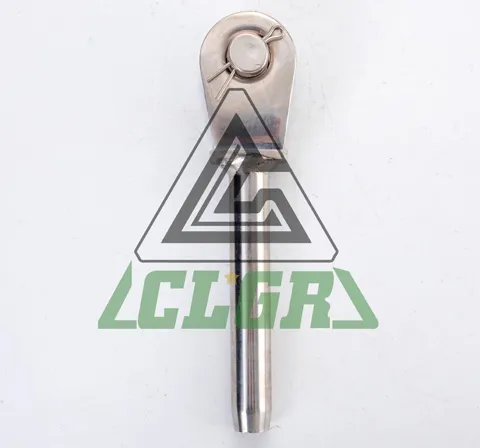

The CLGR® Stainless Steel Swage Jaw Terminals, also known as Stainless Steel Swage Jaw Fork Terminals and Open Swage Sockets.
These high-quality stainless steel Swage Fork Terminals are made from marine grade 316 stainless steel for maximum corrosion resistance and durability. The terminal excels in challenging outdoor and coastal environments, offering excellent protection against rust and weather damage. The sleek Black Oxide finish not only enhances aesthetic appeal but also adds an extra layer of corrosion resistance.
Ideal for marine and architectural projects, it is easy to install and maintain and resistant to corrosion and wear. Its robust construction withstands heavy loads and extreme weather, ensuring reliability. Whether for a small project or a large-scale application, the Swage Fork Terminal offers exceptional performance and longevity.
Brand | CLGR® |
Material | Stainless Steel |
Surface | Highly polished |
Size | 2mm, 2.5mm, 3mm, 3.2mm, 4mm, 5mm, 6mm, 7mm 8mm, 10mm, 12mm, 14mm, 16mm, 19mm, 22mm, 26mm |
Standard | Swage Fork Terminal Type |
Application | Lifting, Lashing, Towing |
Part No. | Wire (mm) | A (mm) | D (mm) | H (mm) | D1 (mm) | D2 (mm) | L2 (mm) | L1 (mm) | KG/100 | B.L. (KG) |
CRSSTERJO2 | 2 | 5.5 | 4 | 8 | 2.2 | 5.5 | 24 | 55 | 2.4 | 500 |
CRSSTERJ2.5 | 2.5 | 6.5 | 5 | 10 | 2.7 | 5.5 | 24 | 55 | 2.4 | 500 |
CRSSTERJO3-1 | 3 | 8 | 5 | 10 | 3.3 | 6.35 | 28 | 55 | 2.5 | 800 |
CRSSTERJO3-2 | 3 | 7.5 | 6 | 10 | 3.3 | 6.35 | 32 | 65 | 3 | 1300 |
CRSSTERJ3.2 | 3.2 | 7.5 | 5 | 9 | 3.5 | 6.35 | 38 | 65 | 2 | 800 |
CRSSTERJO4-1 | 4 | 9 | 6 | 10 | 4.3 | 7.5 | 37 | 65 | 4 | 1300 |
CRSSTERJO4-2 | 4 | 11 | 8 | 11 | 4.3 | 7.5 | 40 | 77 | 4.7 | 2350 |
CRSSTERJO5-1 | 5 | 10 | 8 | 12 | 5.3 | 9 | 42 | 70 | 6.5 | 1300 |
CRSSTERJO5-2 | 5 | 12 | 9 | 14 | 5.3 | 9 | 57 | 88 | 7.4 | 2350 |
CRSSTERJ06-1 | 6 | 12 | 10 | 14 | 6.3 | 12.6 | 51 | 85 | 13.5 | 2350 |
CRSSTERJ06-2 | 6 | 14 | 12 | 20 | 6.4 | 12.6 | 63 | 106 | 16 | 4700 |
CRSSTERJO7 | 7 | 15 | 12 | 22 | 7.4 | 14.2 | 70 | 116 | 18 | 5100 |
CRSSTERJ08 | 8 | 17 | 16 | 26 | 8.4 | 16 | 85 | 145 | 40 | 7600 |
CRSSTERJ10 | 10 | 20 | 19 | 30 | 10.5 | 18 | 90 | 150 | 49 | 9800 |
CRSSTERJ12 | 12 | 23 | 19 | 35 | 12.6 | 20 | 105 | 195 | 64 | 13000 |
CRSSTERJ14 | 14 | 30 | 22 | 46.5 | 14.7 | 25 | 140 | 232 | 117 | 17000 |
CRSSTERJ16 | 16 | 30 | 25 | 49 | 16.9 | 28 | 160 | 264 | 154 | 24000 |
CRSSTERJ19 | 19 | 34 | 28 | 54 | 20 | 34.5 | 200 | 323 | 412 | 27000 |
CRSSTERJ22 | 22 | 40 | 32 | 62 | 23.2 | 40.5 | 230 | 350 | 570 | 31000 |
CRSSTERJ26 | 26 | 44 | 36 | 70 | 27.5 | 46 | 280 | 430 | 710 | 43000 |
