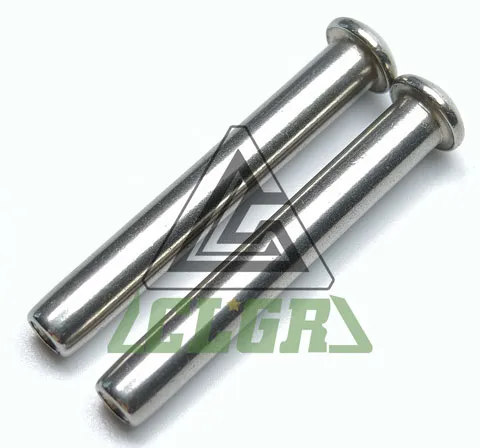

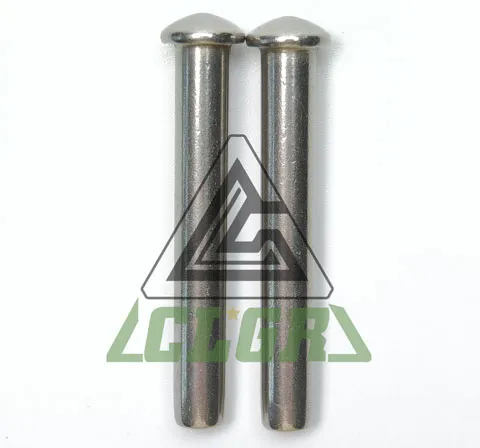

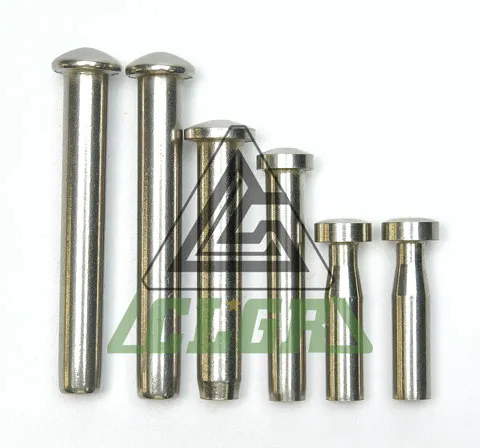

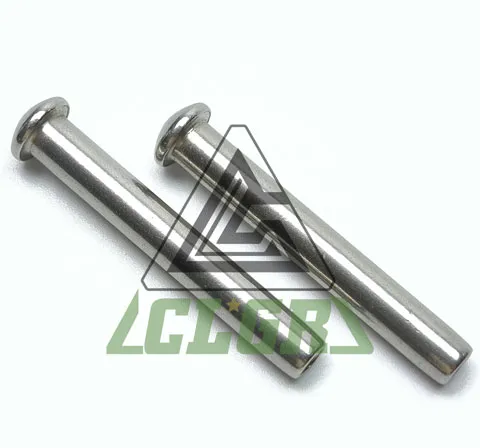

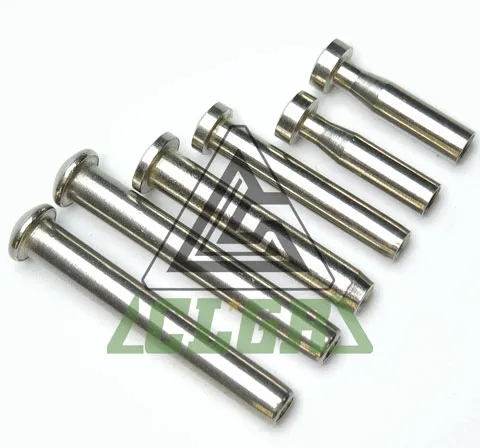

The Stainless Steel Dome Head Terminal, also called Steel Wire Rope Swage Dome Head Terminals, Stainless Steel Cable Railing Dome Head Terminals and Cone Head Terminals. It is made from grade 316 stainless steel for maximum corrosion resistance, offers tremendous resistance to loosening from vibration, suits both interior and exterior use, and provides a very strong & reliable cable termination as a great stainless steel cable anchor option.
The Stainless Steel Dome Head Terminal is suitable for scenarios like indoor and outdoor stainless steel cable railing installations and rigging connections. It's used by crimping it onto the cable to create a firm, reliable termination.
Brand | CLGR® |
Material | Stainless Steel 304 or 316 |
Processing | Machining |
Finish | Highly Polishing |
Size – Wire | 3mm, 4mm, 5mm, 6mm, 8mm, 10mm |
Tips | These Fittings need to be Hydraulically Crimped or Swaged onto the Steel Wire Rope |
Part No. | Wire (mm) | L1 (mm) | L2 (mm) | L3 (mm) | D2 (mm) | D3 (mm) | W/100 (KGS) |
CRSSTERDH03 | 3 | 35 | 25 | 32 | 5.5 | 8 | 0.5 |
CRSSTERDH04 | 4 | 35 | 25 | 32 | 6.35 | 10 | 0.7 |
CRSSTERDH05 | 5 | 41 | 30 | 47 | 7.5 | 11.5 | 1.0 |
CRSSTERDH06 | 6 | 52 | 40 | 47 | 9 | 14 | 1.9 |
CRSSTERDH08 | 8 | 66 | 50 | 60 | 12.58 | 18 | 5.0 |
CRSSTERDH10 | 10 | 77 | 60 | 70 | 16 | 22 | 9.2 |
