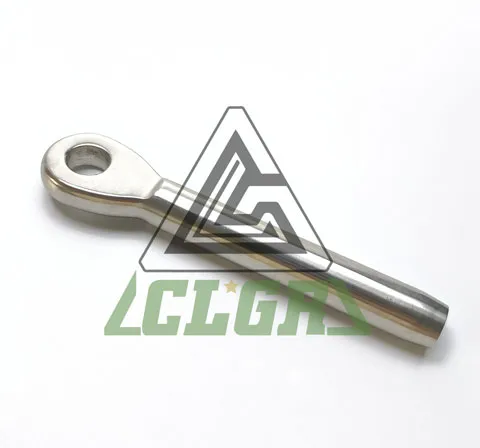

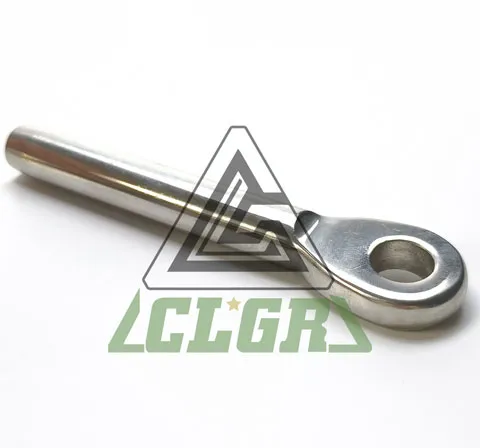

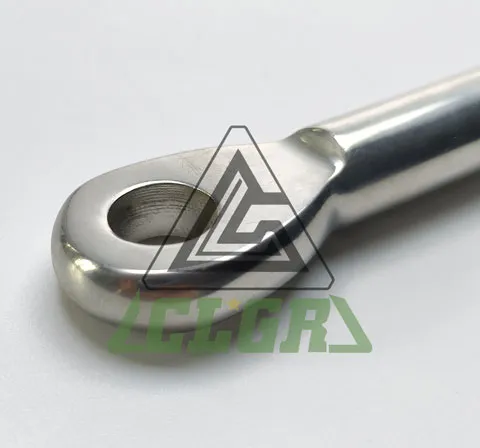

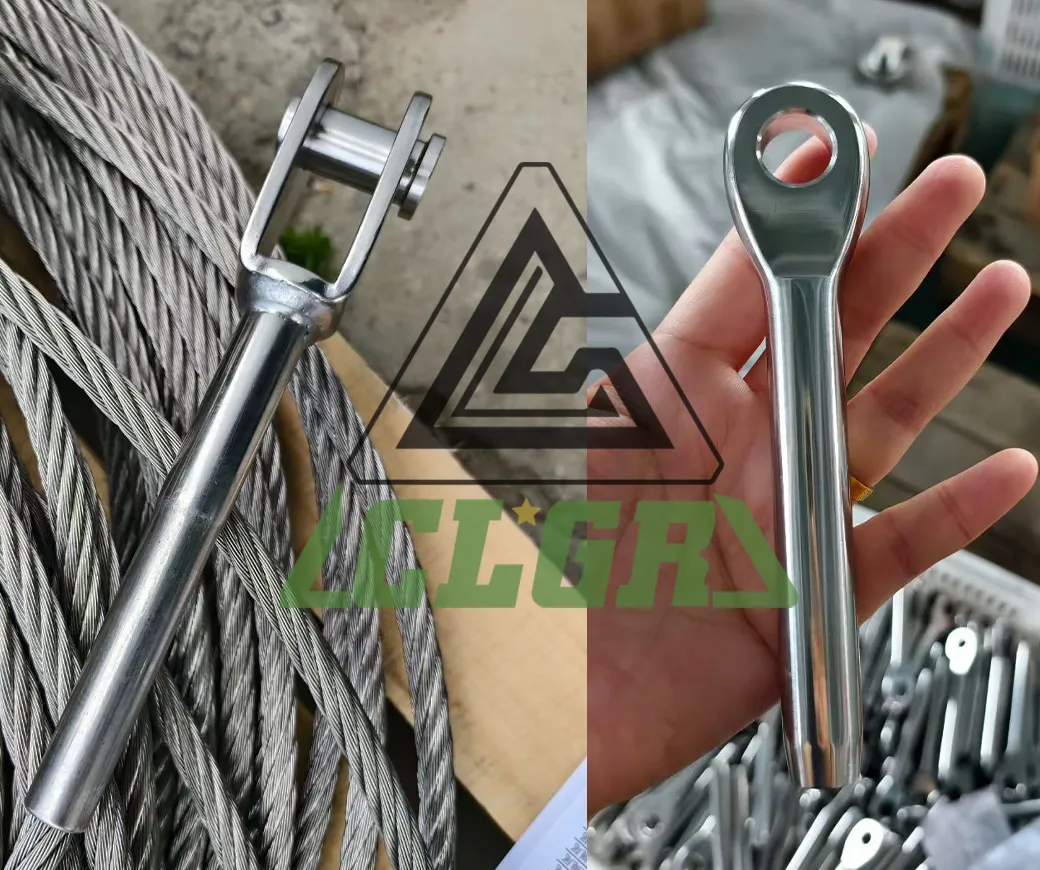

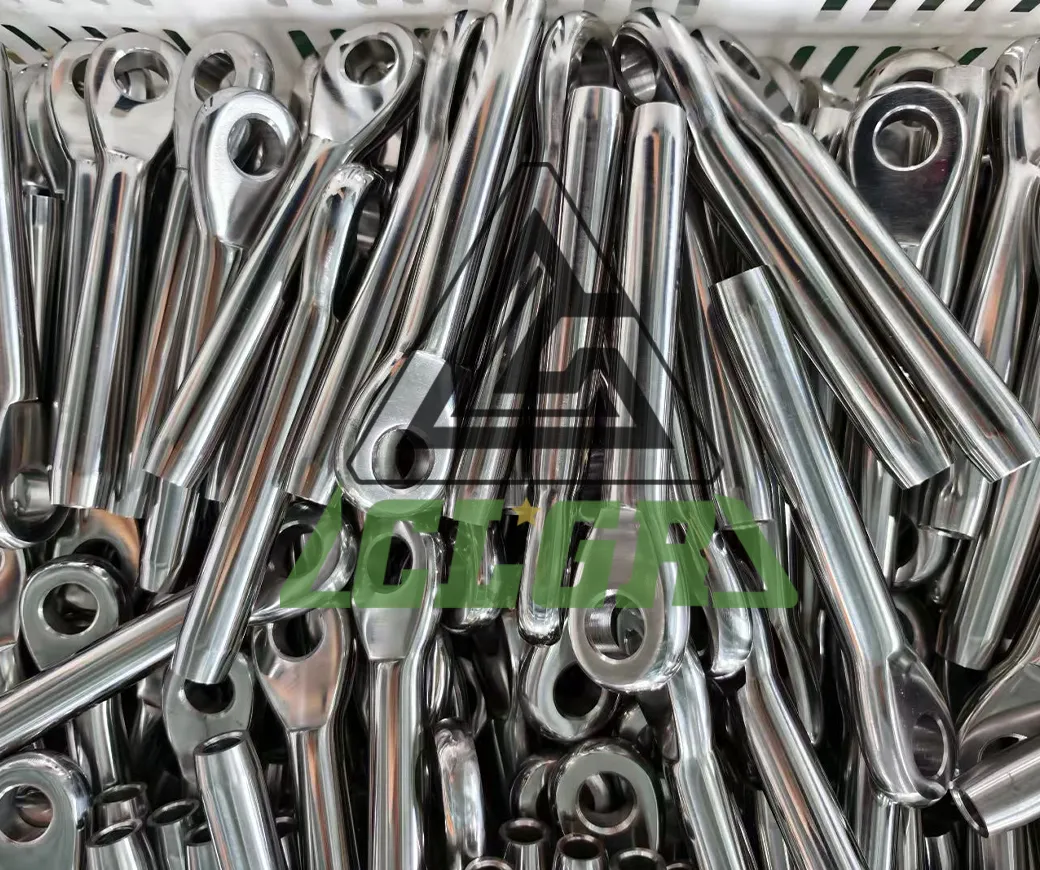

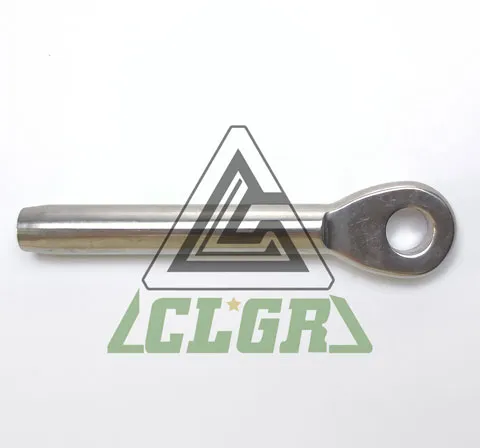

The Stainless Steel Swage Eye Terminal, also known as Stainless Swage Eye and Wire Rope Swage Eye Terminal.
Constructed of 316 stainless steel, these swage marine eyes offer an excellent blend of strength and superior corrosion resistance. Each eye, sized for a specific wire diameter, is designed to be machine swaged. For the same wire diameter, multiple pin diameters may be available to match existing rigging configurations.
Note: Always match terminal size to anchor points and use appropriate hydraulic tools for swaging. It will not work with a Crenshaw hand swager.
Brand | CLGR® |
Material | Stainless Steel |
Size | 2mm, 2.5mm, 3mm, 4mm, 5mm, 6mm, 7mm, 8mm 10mm, 12mm, 14mm, 16mm, 19mm, 22mm, 26mm |
Processing | Stamping / Machining |
Finish | Highly Polishing |
Warning | Not rated for lifting |

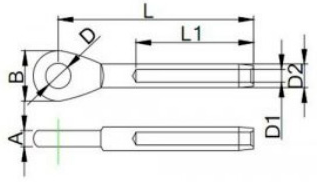

Part No. | Wire (mm) | A (mm) | B (mm) | D (mm) | D1 (mm) | D2 (mm) | L1 (mm) | L (mm) | KG/100 | B.L. (KG) |
CRSSSTERE02 | 2 | 3 | 13 | 5.4 | 2.2 | 5.5 | 30 | 48.5 | 0.9 | 800 |
CRSSSTERE25 | 2.5 | 3 | 13 | 5.4 | 2.7 | 5.5 | 30 | 48.5 | 0.9 | 800 |
CRSSSTERE03 | 3 | 4 | 14 | 6.5 | 3.3 | 6.35 | 36 | 55 | 1.5 | 1300 |
CRSSSTERE04 | 4 | 6 | 18 | 8.5 | 4.3 | 7.5 | 39 | 65 | 2.5 | 2350 |
CRSSSTERE05 | 5 | 7 | 22 | 10 | 5.3 | 9 | 50 | 80 | 4.5 | 3500 |
CRSSSTERE06 | 6 | 8 | 28 | 12.5 | 6.4 | 12.6 | 62 | 94 | 9.5 | 5600 |
CRSSSTERE07 | 7 | 9 | 28 | 12.5 | 7.4 | 14.2 | 68 | 105 | 12.5 | 6200 |
CRSSSTERE08 | 8 | 10 | 32 | 14.5 | 8.4 | 16 | 85 | 124 | 18.2 | 7600 |
CRSSSTERE10 | 10 | 12 | 36 | 16.4 | 10.5 | 18 | 90 | 142 | 25.2 | 9800 |
CRSSSTERE12 | 12 | 16 | 40 | 19.3 | 12.6 | 20 | 105 | 160 | 42.5 | 13000 |
CRSSSTERE14 | 14 | 18 | 47 | 23 | 14.7 | 25 | 140 | 206 | 75.5 | 17000 |
CRSSSTERE16 | 16 | 20 | 53 | 26 | 16.9 | 28 | 160 | 232 | 102 | 24000 |
CRSSSTERE19 | 19 | 25 | 65 | 28.5 | 20 | 34.5 | 200 | 302 | 209 | 27000 |
CRSSSTERE22 | 22 | 30 | 70 | 33 | 23.2 | 40.5 | 230 | 348 | 314 | 31000 |
CRSSSTERE26 | 26 | 30 | 77 | 36 | 27.5 | 46 | 280 | 400 | 425 | 43000 |
