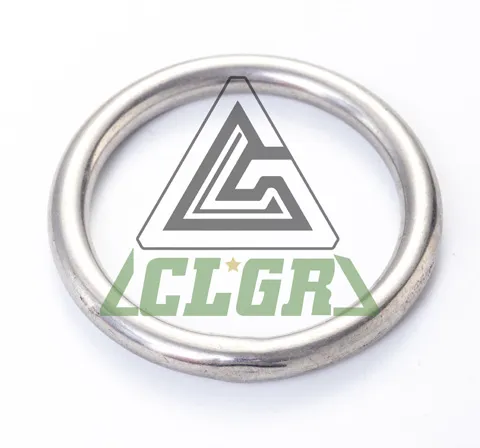

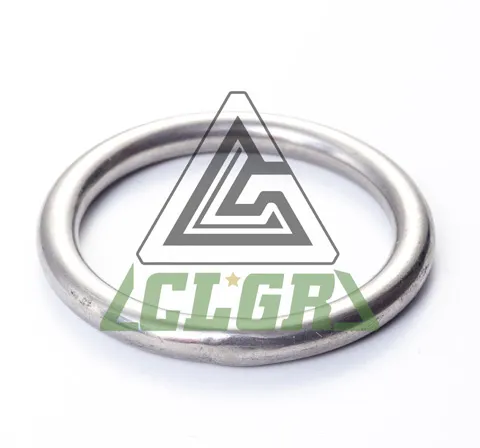

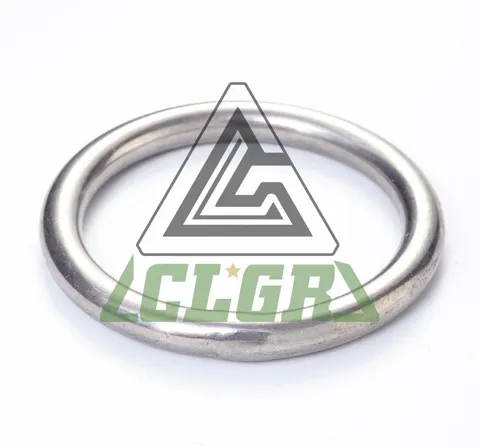

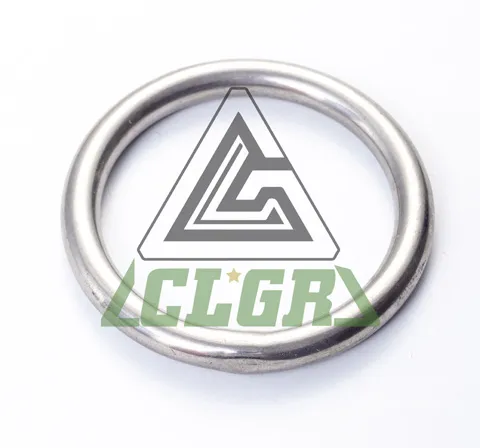

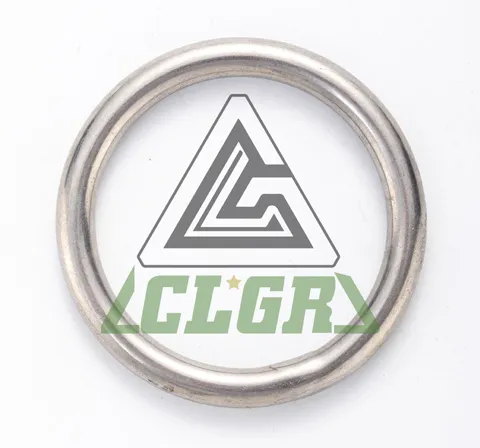

CLGR® Stainless Steel Round O Ring

Name: CLGR® Stainless Steel Round O Ring
Brand: CLGR®

CLGR® Stainless Steel Rings Round O Ring, also referred to as O rings or mooring rings.

These steel round rings are finished in polished stainless steel, marine grade A4-AISI 304 or 316. Stainless steel rings, especially marine-grade 316 steel, are ideal for demanding fishing environments due to their saltwater corrosion resistance and high strength. It can be used with rope, webbing and even chain assemblies. rustproof and strong.

These stainless round O rings are available in a wide range of sizes, including 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 14mm, 19mm diameter bars, all with different internal widths.

The weld on the rings is perfect and is almost impossible to see. The round rings come with a breaking load to outline product performance.

To Get A Quote >

 

Overview of CLGR® Stainless Steel Rings Round O Ring

Brand	CLGR®
Size	3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 14mm, 19mm
Material	Stainless Steel (AISI 304 / AISI 316)
Safety Factor	5: 1
Processing	Welded
Surface Finish	Highly Polishing

Specifications of CLGR® Stainless Steel Rings Round O Ring

Part No.	A	L	WT	Part No.	A	L	WT
Part No.	mm	mm	kgs	Part No.	mm	mm	kgs
CRSSROR315	3	15	0.003	CRSSROR535	5	35	0.0189
CRSSROR320	3	20	0.0038	CRSSROR540	5	40	0.022
CRSSROR325	3	25	0.0048	CRSSROR545	5	45	0.0237
CRSSROR330	3	30	0.005	CRSSROR550	5	50	0.025
CRSSROR420	4	20	0.0074	CRSSROR625	6	25	0.02
CRSSROR425	4	25	0.0089	CRSSROR630	6	30	0.0244
CRSSROR430	4	30	0.0102	CRSSROR635	6	35	0.0279
CRSSROR435	4	35	0.012	CRSSROR640	6	40	0.031
CRSSROR440	4	40	0.013	CRSSROR645	6	45	0.035
CRSSROR525	5	25	0.0146	CRSSROR650	6	50	0.0384
CRSSROR530	5	30	0.016	CRSSROR655	6	55	0.042
Part No.	A	L	WT	Part No.	A	L	WT
Part No.	mm	mm	kgs	Part No.	mm	mm	kgs
CRSSROR660	6	60	0.045	CRSSROR1080	10	80	0.18
CRSSROR840	8	40	0.0587	CRSSROR10100	10	100	0.212
CRSSROR845	8	45	0.069	CRSSROR1260	12	60	0.193
CRSSROR850	8	50	0.077	CRSSROR1270	12	70	0.217
CRSSROR825	8	55	0.0814	CRSSROR1280	12	80	0.26
CRSSROR860	8	60	0.0814	CRSSROR12100	12	100	0.308
CRSSROR870	8	70	0.097	CRSSROR1475	14	75	0.331
CRSSROR880	8	80	0.106	CRSSROR1490	14	90	0.411
CRSSROR1050	10	50	0.108	CRSSROR1975	19	75	0.663
CRSSROR1060	10	60	0.136	CRSSROR1990	19	90	0.772
CRSSROR1070	10	70	0.151
