CLGR® Stainless Steel Drop Forged Hammerlock Link European Type

Name: CLGR® Stainless Steel Drop Forged Hammerlock Link European Type
Brand: CLGR®

CLGR® Stainless Steel Drop Forged Hammerlock Link, also known as Connecting Link, Coupling and Connecting Links, and Chain Connectors, is designed for secure and reliable chain connections in demanding applications.

Constructed from 316 stainless steel with drop-forged construction, this hammerlock link delivers superior strength, impact resistance, and excellent corrosion protection that making it ideal for marine, offshore environments where safety and durability are critical.

The link features a locking retaining pin for secure assembly. Replacement pin sets (including pin, bushing, and roll pin) are available for easy maintenance and extended service life.

Available in a wide range of sizes: 6mm, 7mm, 8mm, 10mm, 13mm, 16mm, 18mm, 20mm, 22mm, 26mm, and 32mm. Custom configurations available upon request. Contact us for more details.

To Get A Quote >

Overview of CLGR® Stainless Steel Drop Forged Hammerlock Link European Type

Brand	CLGR®
Standard	Hammerlock chain connector meet to European Type
Material	Stainless steel 304 or 316 Connector
Processing	Drop Forged
Finish	Polishing
Size	6mm, 7mm, 7/8mm，8mm, 10mm, 13mm, 16mm, 18mm, 20mm, 22mm, 26mm, 32mm

Specifications of CLGR® Stainless Steel Drop Forged Hammerlock Link European Type

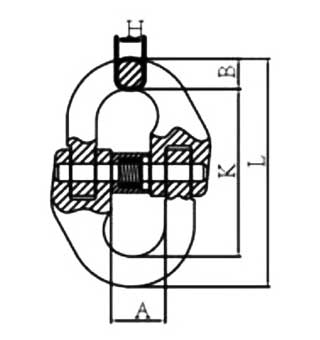

Drawing of CLGR® Stainless Steel Drop Forged Hammerlock Link European Type

Part No.	Size	Weight (kg)	Woring Load Limit (t)	Breaking Load (t)	A±1.5	B±1	L±2.5	K±2	H±1
CRSSCLEU6	6	0.08	1.12	2.8	15	7.5	58	42	7
CRSSCLEU7	7	0.145	1.5	3.75	19	8.5	71.8	54.8	8.5
CRSSCLEU7/8	7/8	0.146	2	5	18	9.5	79.5	60.5	8.5
CRSSCLEU8	8	0.16	2	5	19.5	9.5	79.5	60.5	8.5
CRSSCLEU10	10	0.3	3.15	7.875	25	12	90.5	68	11.5
CRSSCLEU13	13	0.65	5.4	13.25	29	15	117	87	15
CRSSCLEU16	16	1.15	8	20	34.5	19.8	148	108.4	19.8
CRSSCLEU18	18	1.84	10	25	38	21	154	112	21
CRSSCLEU20	20	2.1	12.5	31.25	41	24	169.5	121.5	24
CRSSCLEU22	22	2.87	15	37.5	48	26	193.5	141.5	26
CRSSCLEU26	26	4.5	21.2	53	57.5	31	220	158	30
CRSSCLEU32	32	8.21	31.5	78.75	67	38	281	205	37
