CLGR® Drop Forged Stainless Steel Connecting Link US Type

Name: CLGR® Drop Forged Stainless Steel Connecting Link US Type
Brand: CLGR®

CLGR® Drop Forged Stainless Steel Connecting Link US Type, also known as Connecting Link, Coupling Link, or Chain Connector, is designed for secure and reliable chain connections in demanding applications.

Manufactured from high-grade stainless steel 304 or 316 under strict quality control, this connecting link features a two-piece symmetrical design that allows easy assembly and disassembly. It is drop-forged and stamped for consistent strength and dimensional accuracy.

This versatile link is compatible with chain slings, master links, master link assemblies, shackles, and other rigging components of the same nominal size, making it an ideal solution for shortening chains or connecting multiple accessories in lifting and lashing systems.

Available in inch sizes: 1/4", 5/16", 3/8", 1/2", 5/8", 3/4", 7/8", 1", and 1-1/4". Custom configurations available upon request. Contact us for more details.

To Get A Quote >

Overview of CLGR® Drop Forged Stainless Steel Connecting Link US Type

Brand	CLGR®
Standard	Hammerlock chain connector meet US Federal Specification
Material	Stainless steel Type 304 or 316 Connecting Link
Processing	Drop Forged
Finish	Polishing
Size	1/4", 5/16", 3/8", 1/2", 5/8", 3/4",7/8", 1", 1-1/4"

Specification of CLGR® Drop Forged Stainless Steel Connecting Link US Type

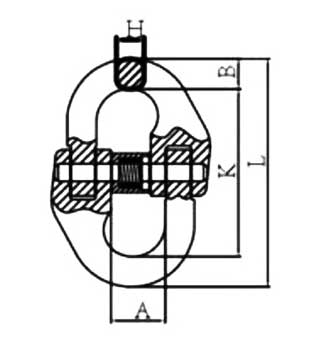

Drawing of CLGR® Drop Forged Stainless Steel Connecting Link US Type

Part No.	WEIGHT /lbs	WORKING LOAD LIMIT /lbs	BREAKING LOAD /lbs	A±1.5	L±2.5	K±2	W±l	H±1	C±0.2	D±0.3
CRDFSSCLUS1/4	0.286	3500	14000	16.5	67	51	8	13	4	4
CRDFSSCLUS5/16	0.32	4500	18000	17	78.5	58.5	10	14.5	6	6.6
CRDFSSCLUS3/8	0.73	7100	28400	22	87.6	63.6	12	17	6.2	8.1
CRDFSSCLUS1/2	1.67	12000	48000	28.5	115.5	85.5	15	21.6	7.8	7.8
CRDFSSCLUS5/8	2.86	18100	72400	33	143	106	18.5	26	9.5	10
CRDFSSCLUS3/4	5	28300	113200	41	162	116	23	32	12	13
CRDFSSCLUS7/8	7.5	34200	136800	50.5	188.5	136.5	26	38	13	15.5
CRDFSSCLUS1	11.03	47700	190800	57	214.5	152.5	31	44	15	16.5
CRDFSSCLUS1/4	20.38	72300	289200	65	265	188.7	38	54	20	20
